YJV Single Copper Core High Voltage 26 35KV XLPE Insulated PVC Sheathed Cable
YJV Single Copper Core High Voltage 26 35KV XLPE Insulated PVC Sheathed Cable
YJV Single Copper Core High Voltage 26 35KV XLPE Insulated PVC Sheathed Cable
YJV Single Copper Core High Voltage 26 35KV XLPE Insulated PVC Sheathed Cable
YJV Single Copper Core High Voltage 26 35KV XLPE Insulated PVC Sheathed Cable
YJV Single Copper Core High Voltage 26 35KV XLPE Insulated PVC Sheathed Cable
Specifications
Place of Origin :
Shaanxi, China
Price :
usd 3.5 ～ 83.3 / meter
Supply Ability :
800–1500 kilometers per month
Insulation Material :
XLPE
Brand Name :
F.T
Rated Current :
16 A
Service :
ODM OEM Accepted
Jacket :
PVC
Delivery :
10-25days After Received The Prepayment
Type :
High Voltage
MOQ :
1000m
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Sample :
Free
Delivery Time :
30 days
Application :
Industrial, Construction, Urban power grids, substations, underground cable tunnels
Working Temperature :
0-90℃
Model Number :
YJV
Size :
4-300mm2
Material :
PVC
Rated Voltage :
26/35kv
MOQ :
1000
Conductor Material :
Copper
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Certification :
CE，VDE,SO 9001
Description

High Voltage Cable YJV Single Copper Core 26/35KV XLPE Insulated PVC Sheathed Cable

The High-Performance Heart of Urban Power Grids. 26/35KV single-core YJV cable is engineered for primary power distribution in substations and industrial networks. Utilizing triple-extrusion XLPE technology and high-purity copper, it guarantees stable energy transmission under extreme electrical stress.

Technical Specifications: 26/35KV High Voltage Cable

Cable Model YJV (Single Core)
Voltage Rating 26/35KV (Max. Voltage Um: 40.5KV)
Testing Standard IEC 60502‑2, GB/T 12706.3, BS 6622
Conductor Class 2 Compacted Stranded Copper (99.99% Oxygen‑Free)
Insulation Super‑clean Cross‑linked Polyethylene (XLPE)
Screening System Semi‑conductive Conductor Screen + Semi‑conductive Insulation Screen + Copper Tape Screen
Partial Discharge ≤ 10pC (at 1.73 Uo)‑Super‑clean Grade
Outer Sheath Heavy‑duty PVC (ST2), Flame Retardant (Optional)
Max. Operating Temp 90°C (Normal) / 250°C (Short Circuit Conditions)
Installation Depth Optimized for Underground Pipe, Tunnel, or Direct Burial

Core Engineering Advantages

Triple-Extrusion XLPE Technology

Conductor shield, insulation, and insulation shield are extruded simultaneously in a clean-room environment to ensure zero air gaps and a seamless interface.

≤ 10pC Low Partial Discharge

Our rigorous super-clean material selection and testing guarantee a low partial discharge rate, significantly reducing electrical treeing and extending service life.

99.99% High-Purity Copper

High-conductivity annealed copper minimizes resistance and heat generation, ensuring maximum efficiency for 35KV power distribution.

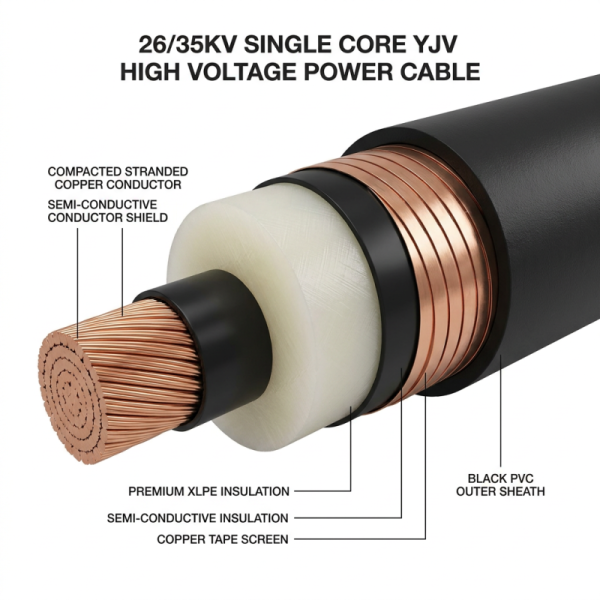

Structural Anatomy (26/35KV Design)

  • Copper Conductor: Compacted stranded copper for high conductivity and reduced cable diameter.
  • Conductor Screen: Semi-conductive material extruded over the conductor to uniform the electric field.
  • XLPE Insulation: Primary dielectric layer providing high electrical strength and thermal stability.
  • Insulation Screen: Semi-conductive layer to smooth electrical stress at the insulation surface.
  • Metallic Screen: Concentric copper tape or wire screen for grounding and fault current return.
  • Wrapping Layer: Non-hygroscopic binder tape to protect core integrity.
  • Outer Sheath: Robust PVC (ST2) jacket providing mechanical protection and moisture resistance.
  • YJV Single Copper Core High Voltage 26 35KV XLPE Insulated PVC Sheathed Cable

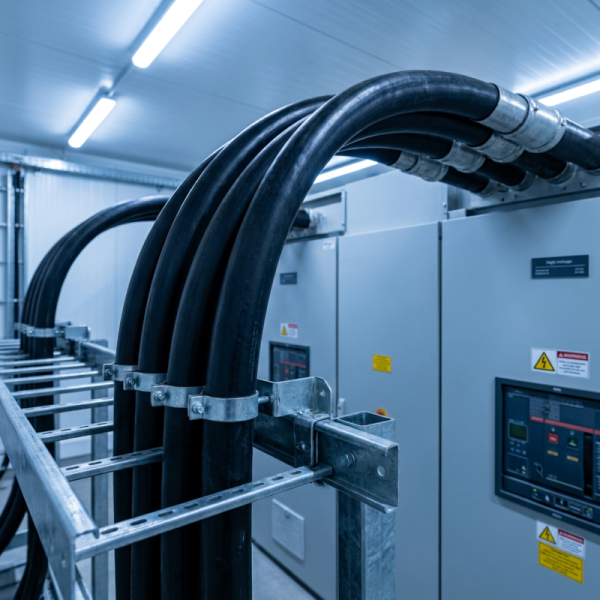

Substation & Industrial Grid Applications

YJV Single Copper Core High Voltage 26 35KV XLPE Insulated PVC Sheathed Cable
