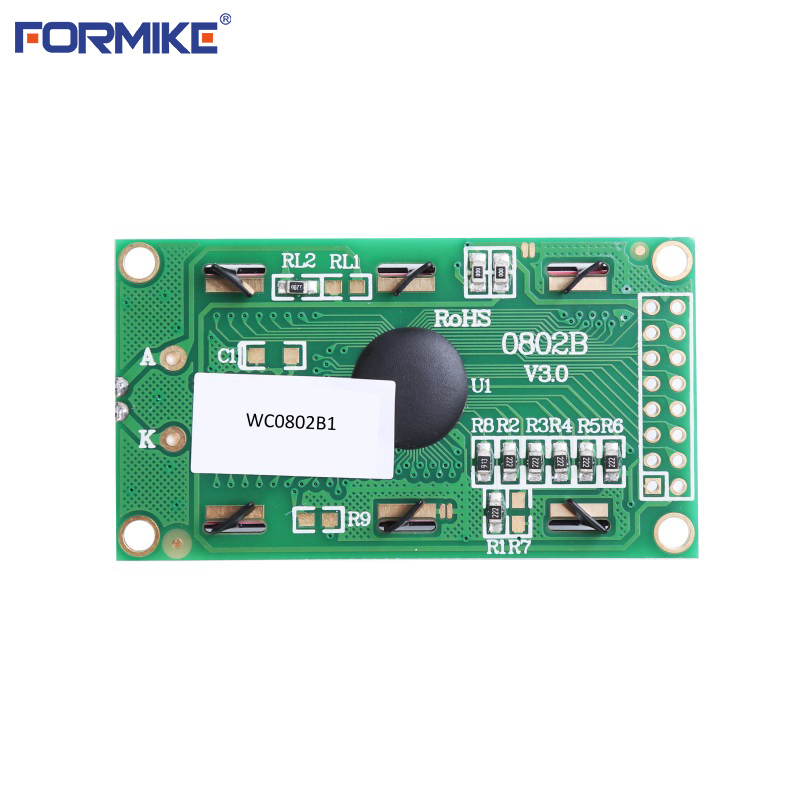

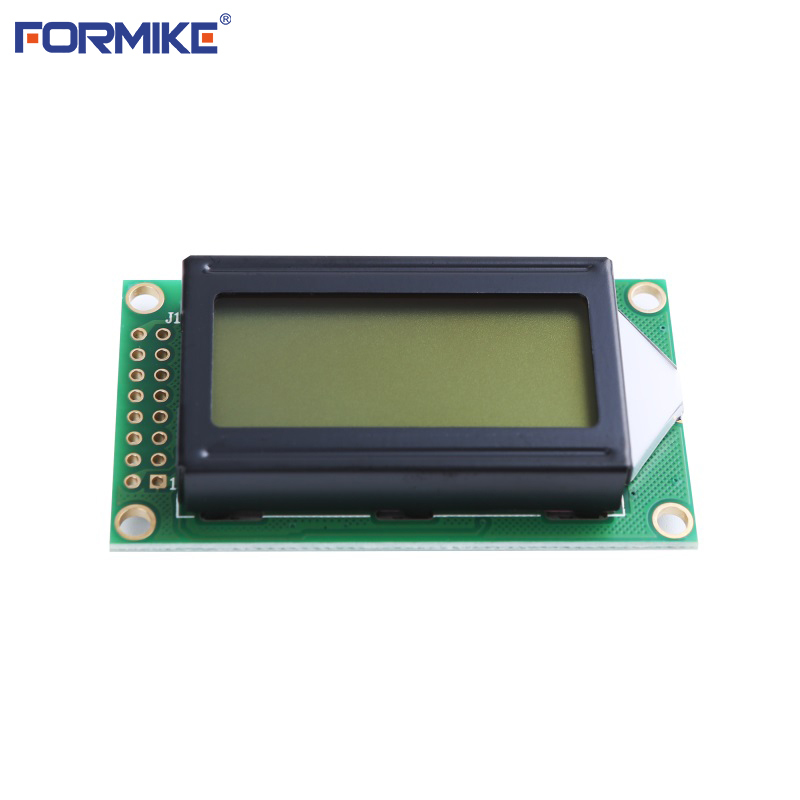

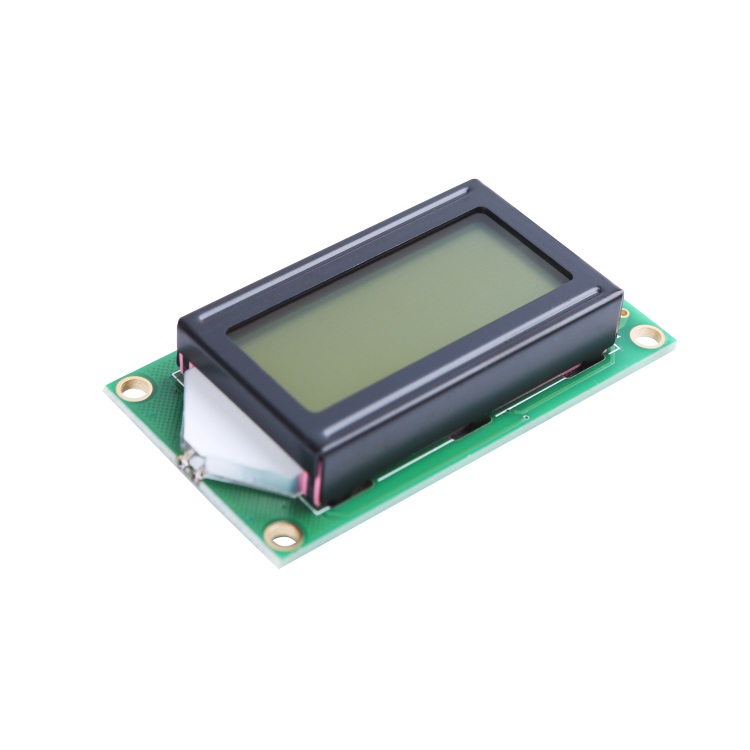

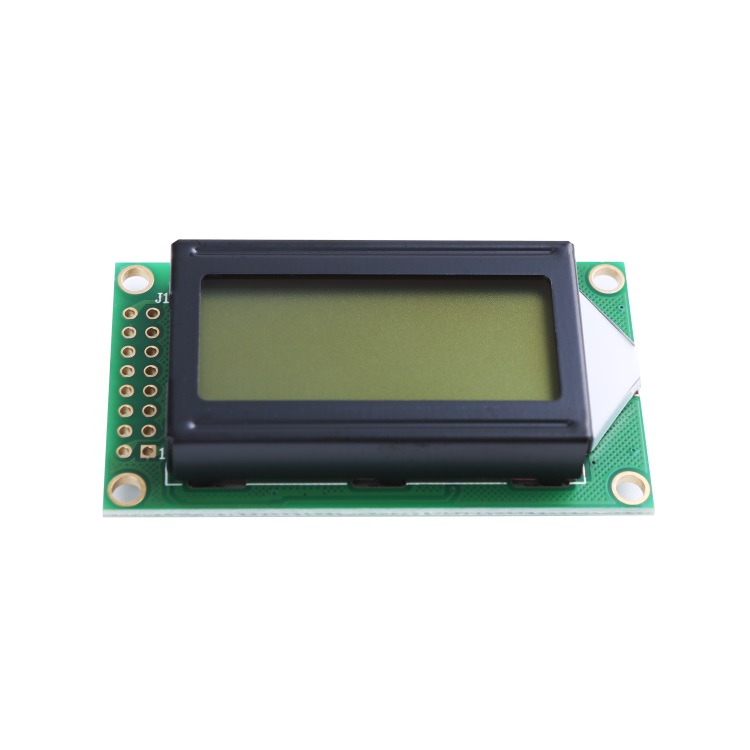

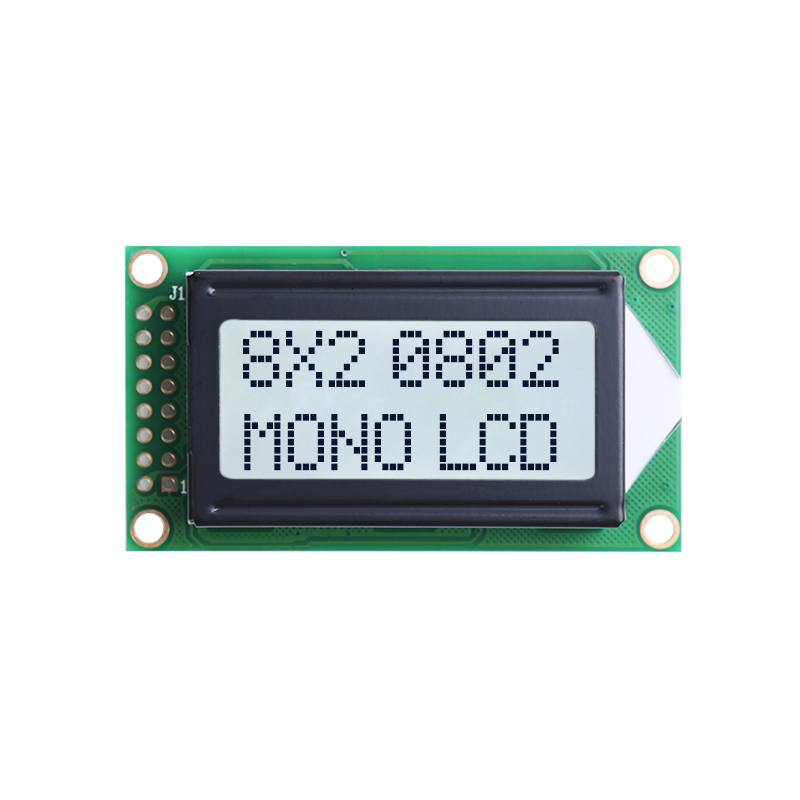

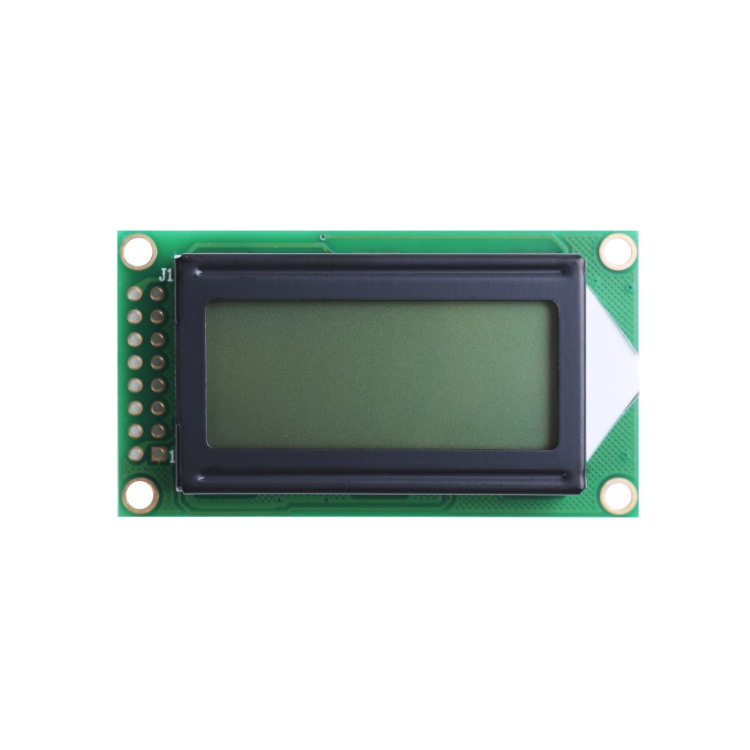

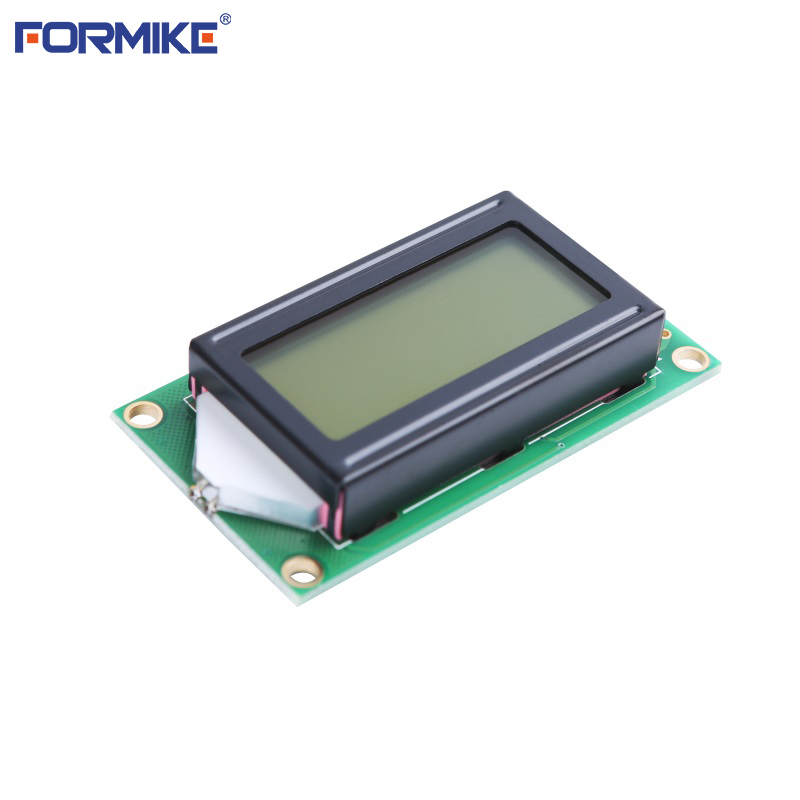

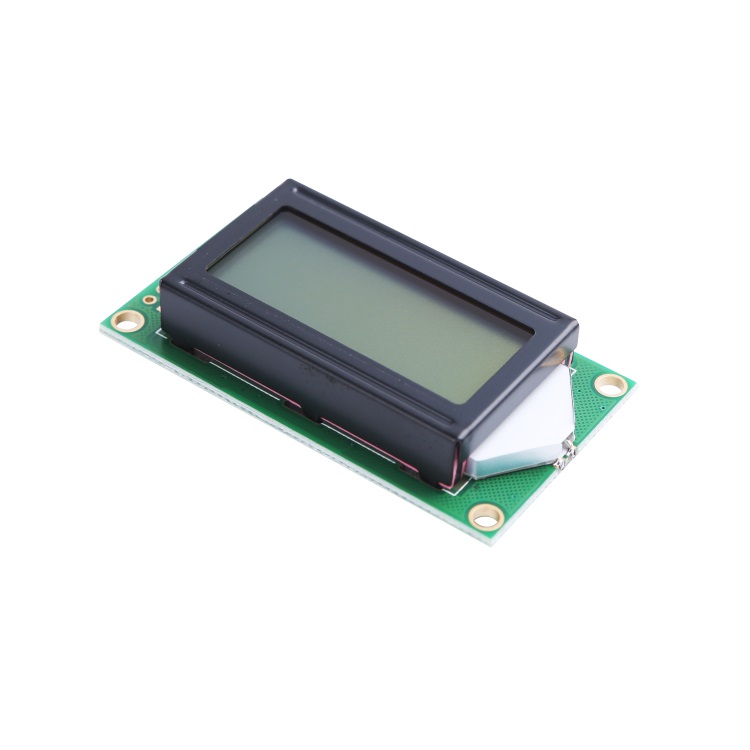

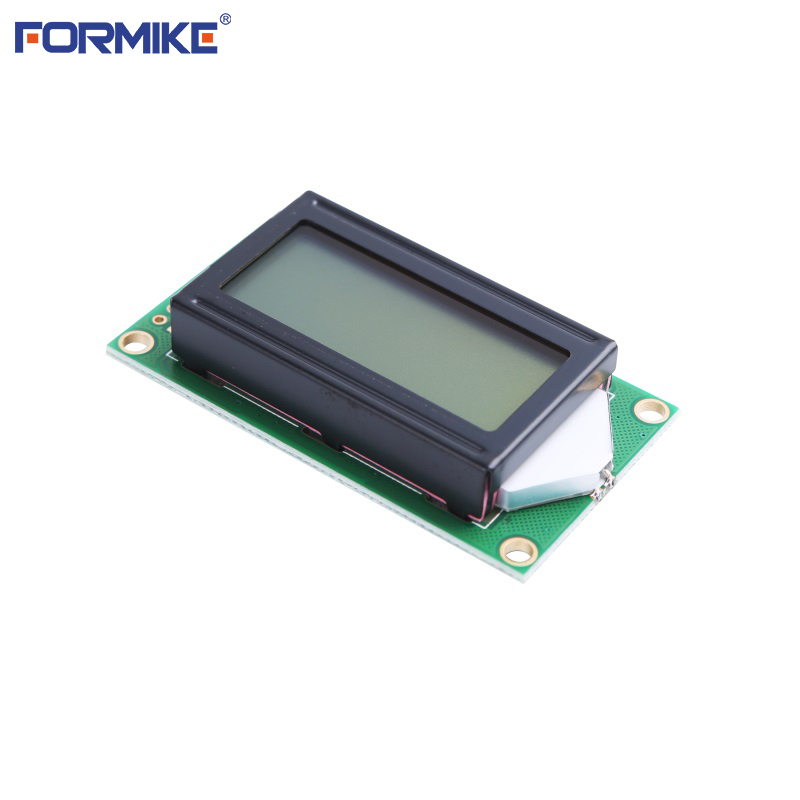

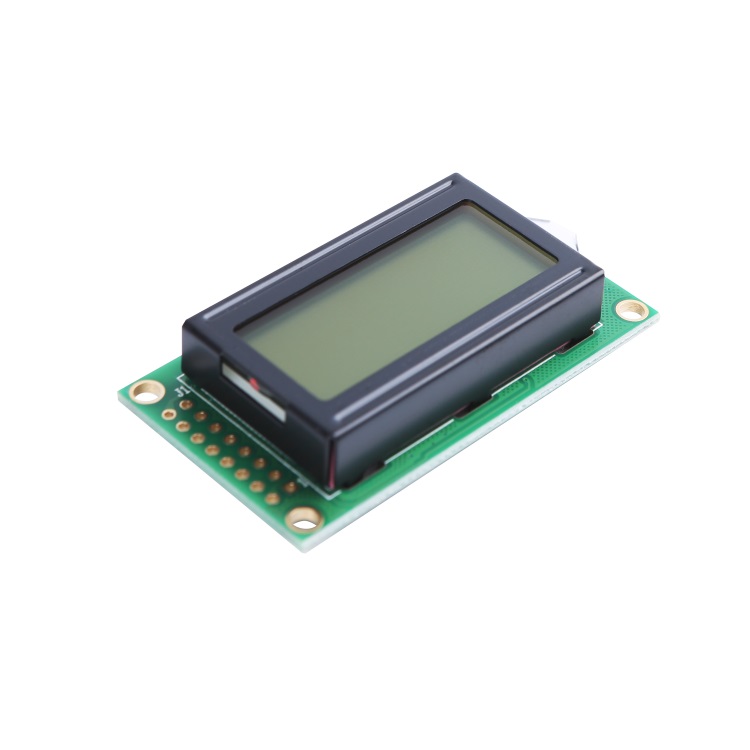

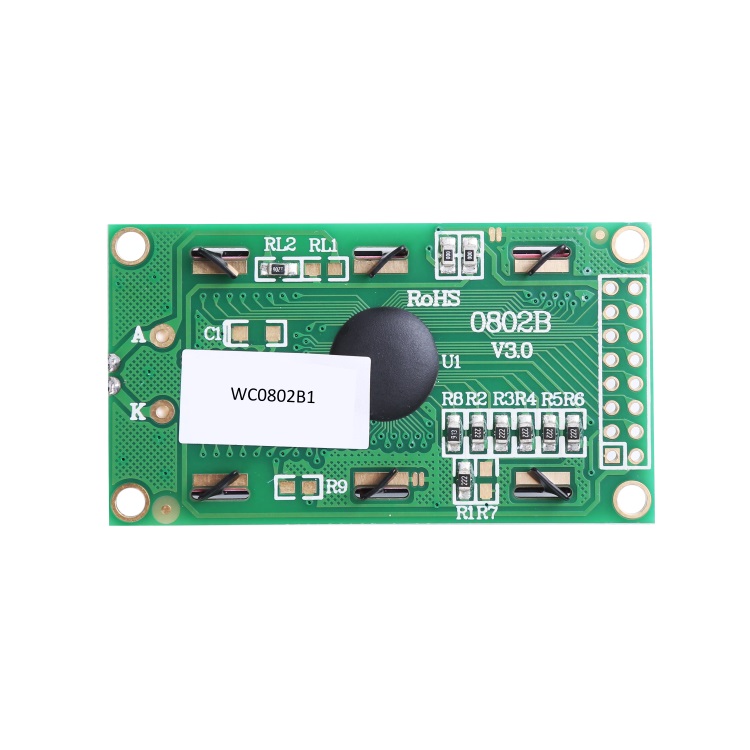

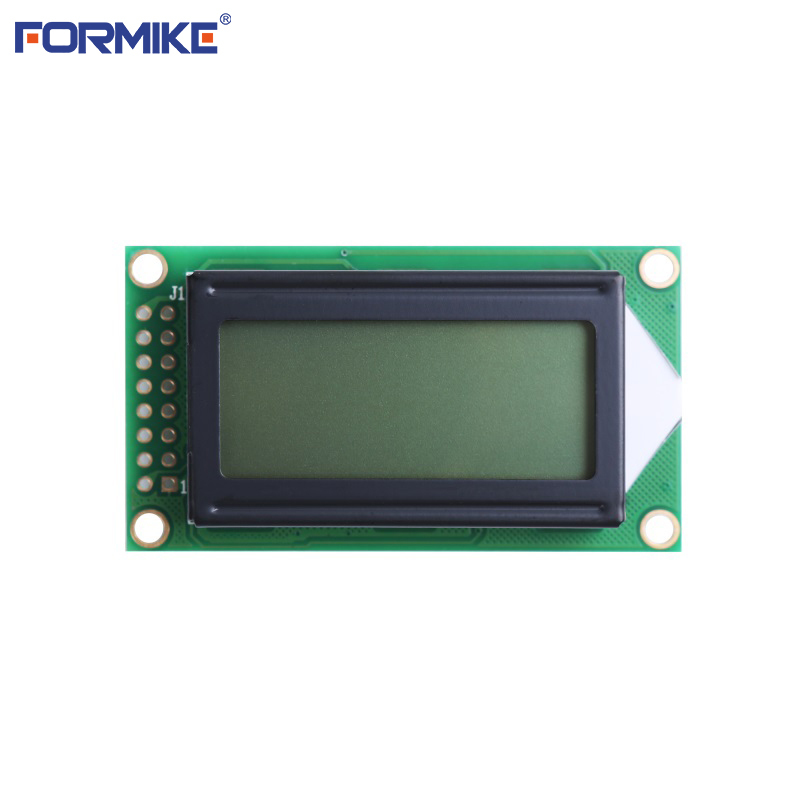

ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
ST7066U 0802 8x2 LCD Display Module With STN Mode ODM
Specifications
Operating Voltage :
3.3V / 5V
Place of Origin :
China
Interface :
16 Pin, 4-bit or 8-bit 6800 MPU
Dimensions :
58mm * 32mm * 13mm
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Backlight Color :
Usually Y-G or Blue or Gray
Display Mode :
STN
MOQ :
1 piece
Product Name :
8x2 LCD Module Price 0802 LCD Display With STN Mode
Model Number :
WC0802B1
Controller :
ST7066U / AIP31066
Brand Name :
Formike
Payment Terms :
T/T,L/C,Credit card,Cash
Operating Temperature :
-20°C to 70°C
Viewing Angle :
6 O'clock
Display Type :
Character LCD Display
Supply Ability :
5000000000 pieces/year
Backlight :
LED
Packaging Details :
Tray + Inner Box + Carton
Display format :
8character*2 line
Description
Product Details

8x2 LCD Module Price 0802 LCD Display With STN Mode

ST7066U 0802 8x2 LCD Display Module With STN Mode ODM

Product Specification
LCD Name 8x2 LCD Module Price 0802 LCD Display With STN Mode
Display Format 8character*2 line
Module Size 58.0mm×32.0mm×13.2mm
View Area 38.0mm×16.0mm
Character Size 3.29mm×6.18mm
Character Pitch 3.89mm×6.62mm
IC AIP31066 or Eqv (Defualt English / Japan Font)
Interface 16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method 1/16 Duty, 1/5 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WC0802B1SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WC0802B1SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WC0802B1SKW6B-A1 STN Grey Positive White Color Black Color Grey Color 5V
4 WC0802B1SKW6B-A2 STN Grey Positive White Color Black Color Grey Color 3.3V
5 WC0802B1SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
6 WC0802B1SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
