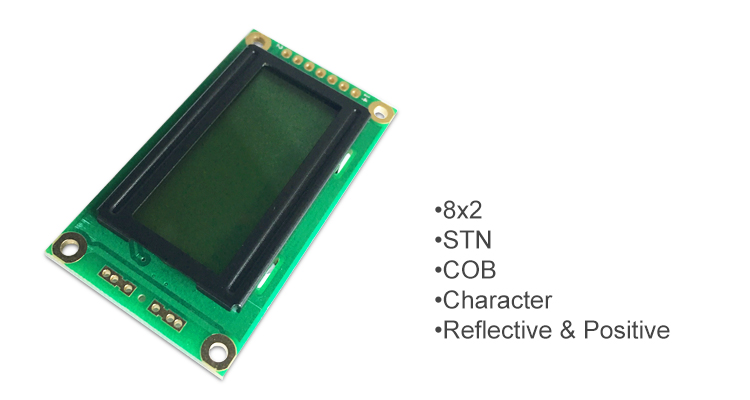

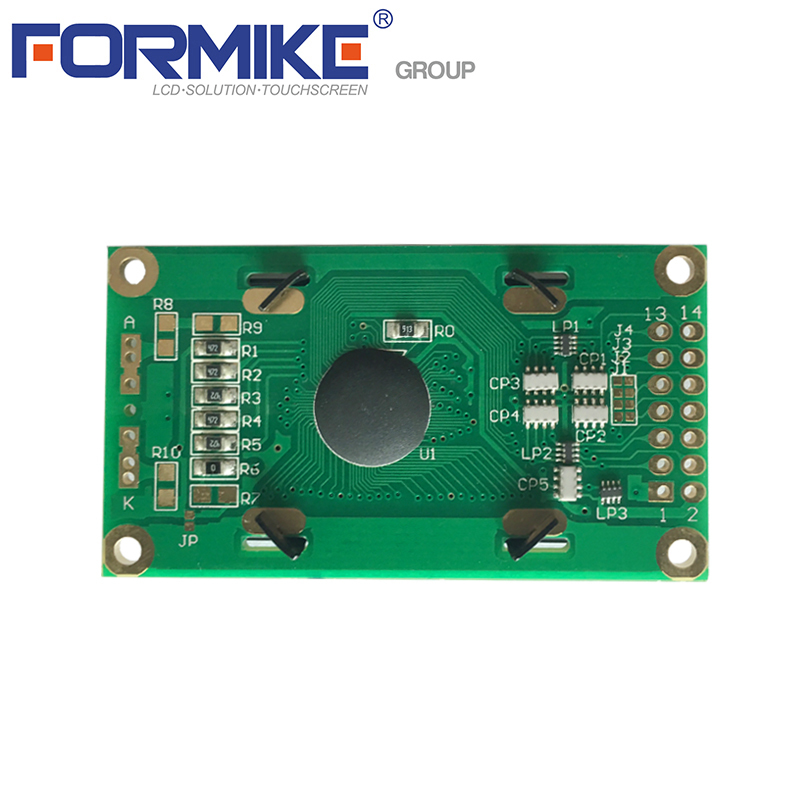

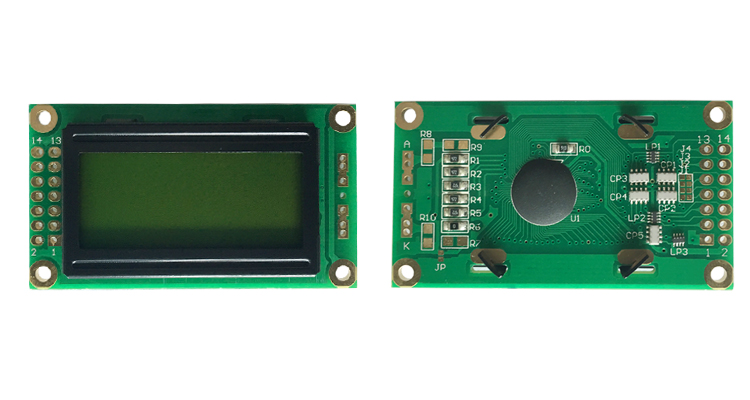

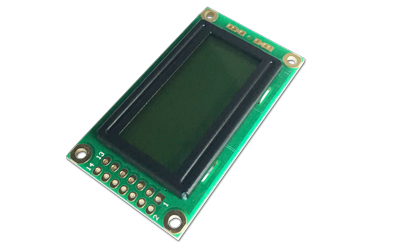

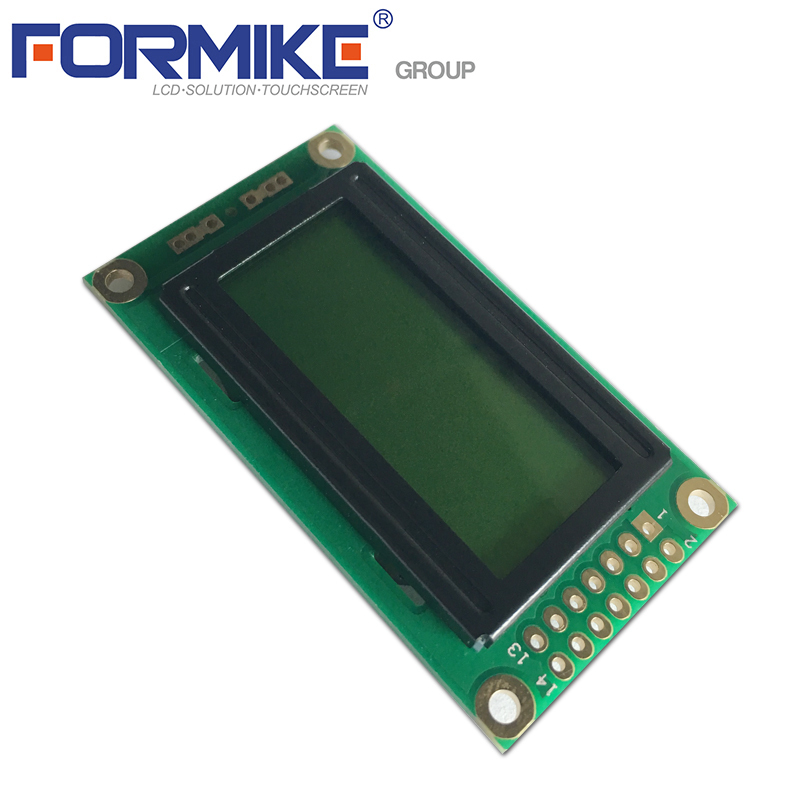

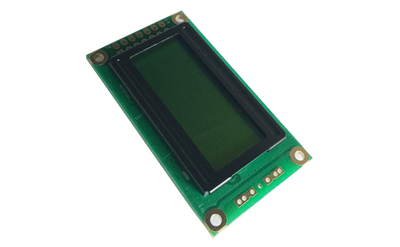

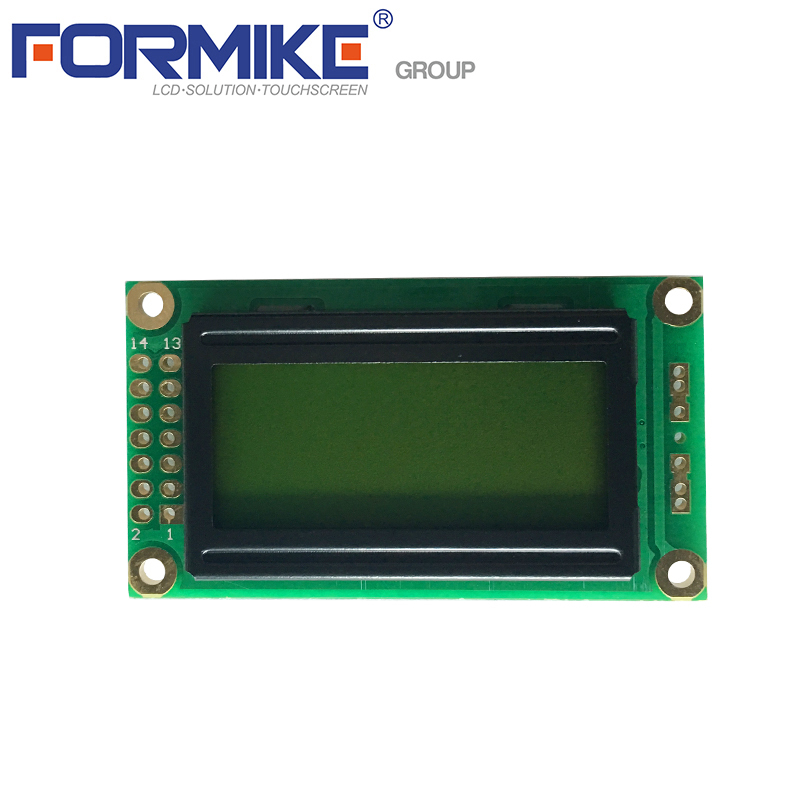

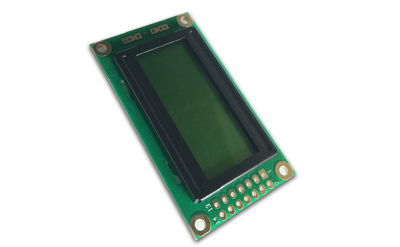

Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Specifications
Interface :
14 Pin
Backlight :
Without
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Type :
Reflective Positive
Supply Ability :
5000000000 pieces/year
Place of Origin :
China
MOQ :
1 piece
Product Name :
Character LCD Display 8x2 China Monochrome LCD Module with 14 Pin Interface and STN Y-N Reflective Positive Type
Packaging Details :
Tray + Inner Box + Carton
Color :
Black display dot on yellow-green background without backlight
Display Type :
Character LCD Module
Operating Temperature :
0°C to 50°C
Operating Voltage :
5V
Display format :
8character*2 line
Display Mode :
STN
Payment Terms :
T/T,L/C,Credit card,Cash
Model Number :
WC0802Z3SAN1B
Brand Name :
Formike
Dimensions :
58.0mm *32.0mm * 8.9mm
Controller :
ST7066U-0A
Viewing Angle :
6 O'clock
Description

Character LCD Display 8x2 China Monochrome LCD Module with 14 Pin Interface and STN Y-N Reflective Positive Type

Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface

LCD Name Character LCD Display 8x2 China Monochrome LCD Module with 14 Pin Interface and STN Y-N Reflective Positive Type

Display Format

8x2 Dots

Display Mode

STN, Positive, Reflective

LCD Color

Display dot : Black,

Background: White

Dot Size

0.56(W) X 0.66(H)

Outline Dimension

58.00(W) x32.00(H) x8.90(T) mm

Viewing Area

38.00MIN(W) x16.00MIN(H)mm

Viewing Direction

6 O’clock

Interface Input Data

Parallel or serial

Backlight

Without

Driving Method

1/16 Duty, 1/5 Bias

Working Temp.

 0℃~+50℃

Storage Temp.

-10℃~+60℃

Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface

Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
