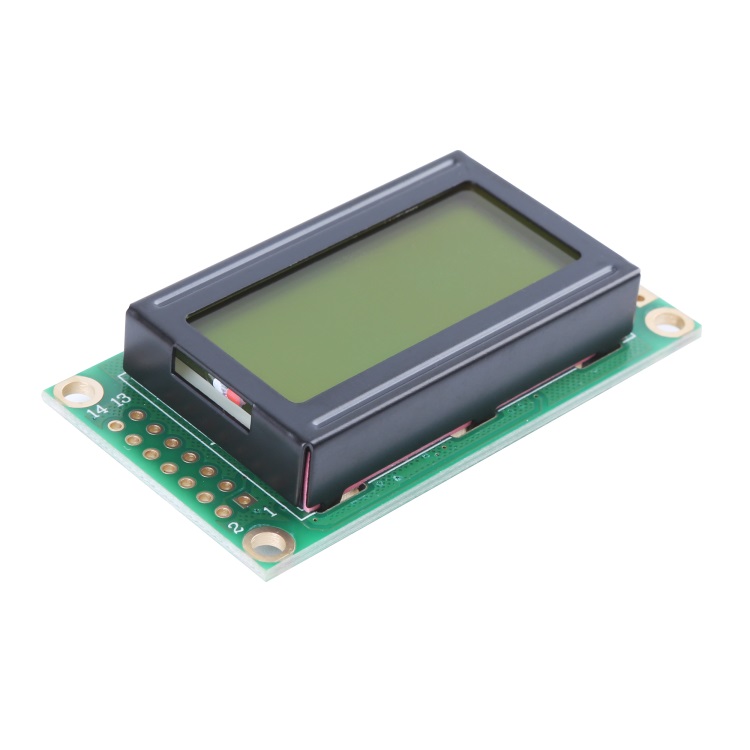

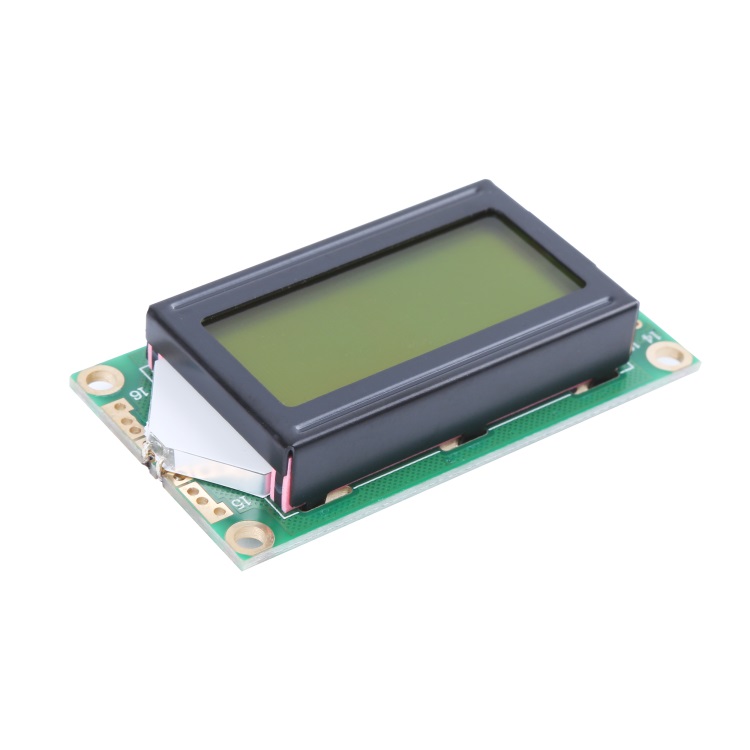

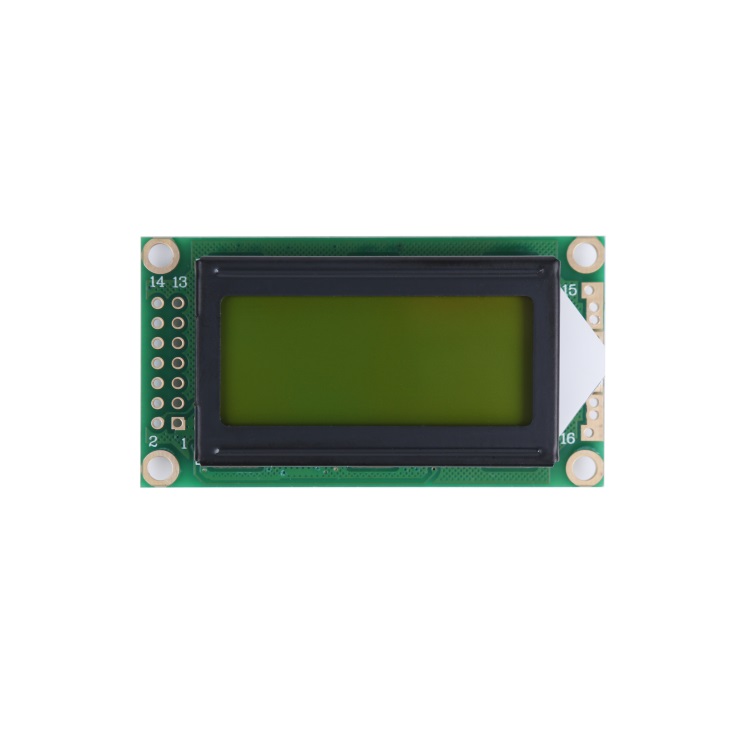

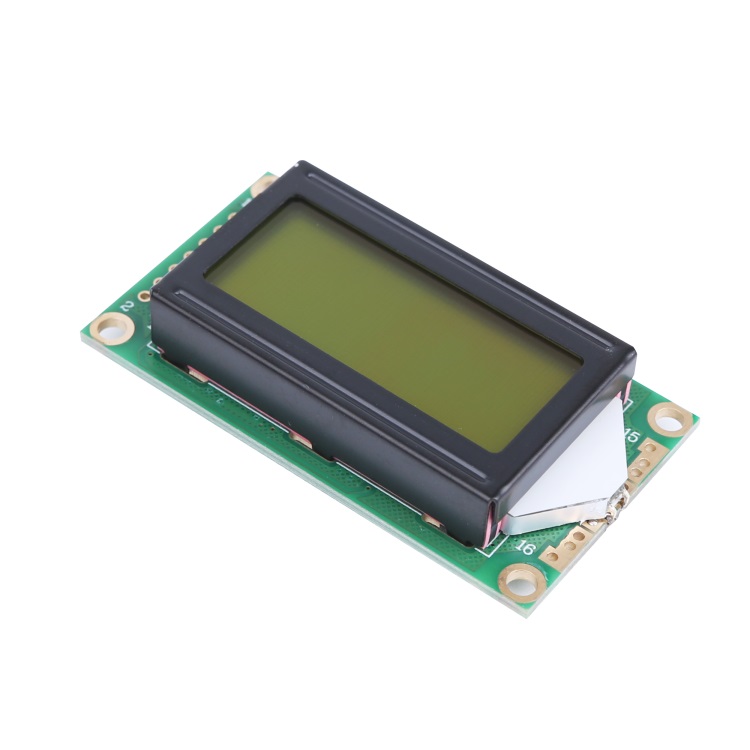

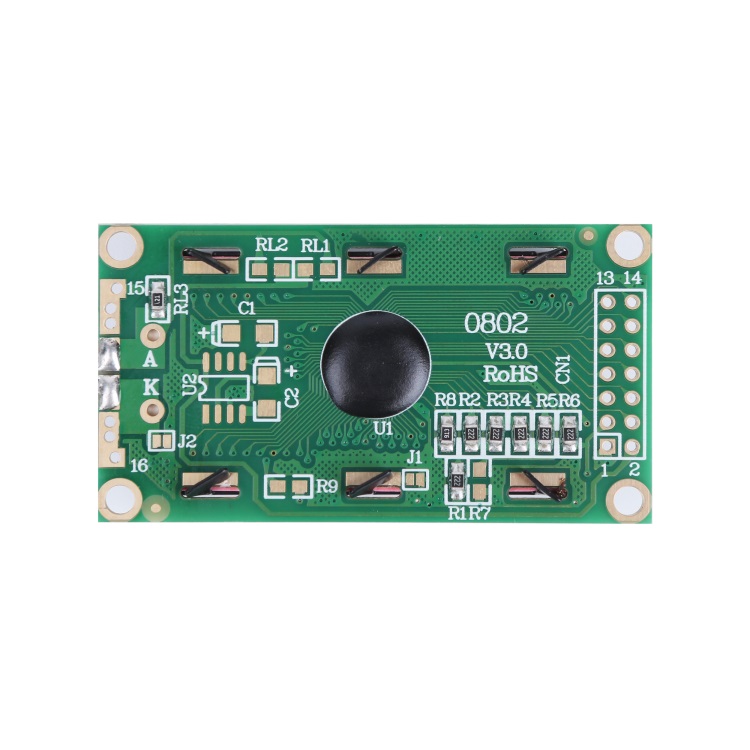

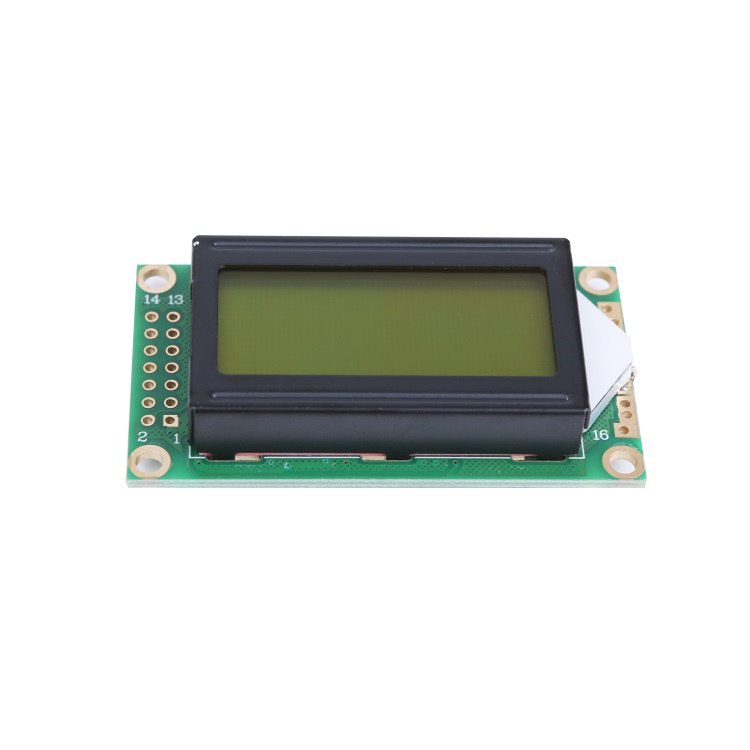

Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC
Specifications
MOQ :
1 piece
Backlight Color :
Usually Y-G or Blue or Gray
Display Mode :
STN
Product Name :
8x2 Character LCD Display Monochrome LCM Liquid Crystal Module With ST7066U or AIP31066 Driver IC
Controller :
ST7066U / AIP31066
Packaging Details :
Tray + Inner Box + Carton
Operating Voltage :
3.3V / 5V
Interface :
16Pin, 4-bit or 8-bit 6800 MPU
Dimensions :
58.0mm *32.0mm * 13.0mm
Model Number :
WC0802B2
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
Viewing Angle :
6 O'clock
Display Type :
Character LCD Screen
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Backlight :
LED
Place of Origin :
China
Payment Terms :
T/T,L/C,Credit card,Cash
Supply Ability :
5000000000 pieces/year
Display format :
8character*2 line
Description

8x2 Character LCD Display Monochrome LCM Liquid Crystal Module With ST7066U or AIP31066 Driver IC

Character 8x2 LCD Display Mono LCM Liquid Crystal Module With AIP31066 Driver IC

Product Specification
LCD Name 8x2 Character LCD Display Monochrome LCM Liquid Crystal Module With ST7066U or AIP31066 Driver IC
Display Format 8character*2 line
Module Size 58.0mm×32.0mm×13.2mm
View Area 38.0mm×16.0mm
Character Size 3.29mm×6.18mm
Character Pitch 3.89mm×6.62mm
IC AIP31066 or Eqv (Defualt English / Japan Font)
Interface 16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method 1/16 Duty, 1/5 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WC0802B2SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WC0802B2SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WC0802B2SKW6B-A1 STN Grey Positive White Color Black Color Grey Color 5V
4 WC0802B2SKW6B-A2 STN Grey Positive White Color Black Color Grey Color 3.3V
5 WC0802B2SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
6 WC0802B2SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
