Specifications
Place of Origin :
China
Backlight Color :
Usually Y-G or Blue or Gray
Viewing Angle :
6 O'clock
Product Name :
8x2 LCD Display STN Screen Character LCD Module With 16 Pin 4-bit or 8-bit 6800 MPU interface
Display Type :
Character LCD
MOQ :
1 piece
Display format :
8character*2 line
Interface :
16 Pin, 4-bit or 8-bit 6800 MPU
Operating Temperature :
-20°C to 70°C
Payment Terms :
T/T,L/C,Credit card,Cash
Display Mode :
STN
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
Dimensions :
58.0mm *32.0mm * 13.2mm
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Operating Voltage :
5V
Backlight :
LED
Controller :
ST7066U / AIP31066
Brand Name :
Formike
Model Number :
WC0802B0
Description

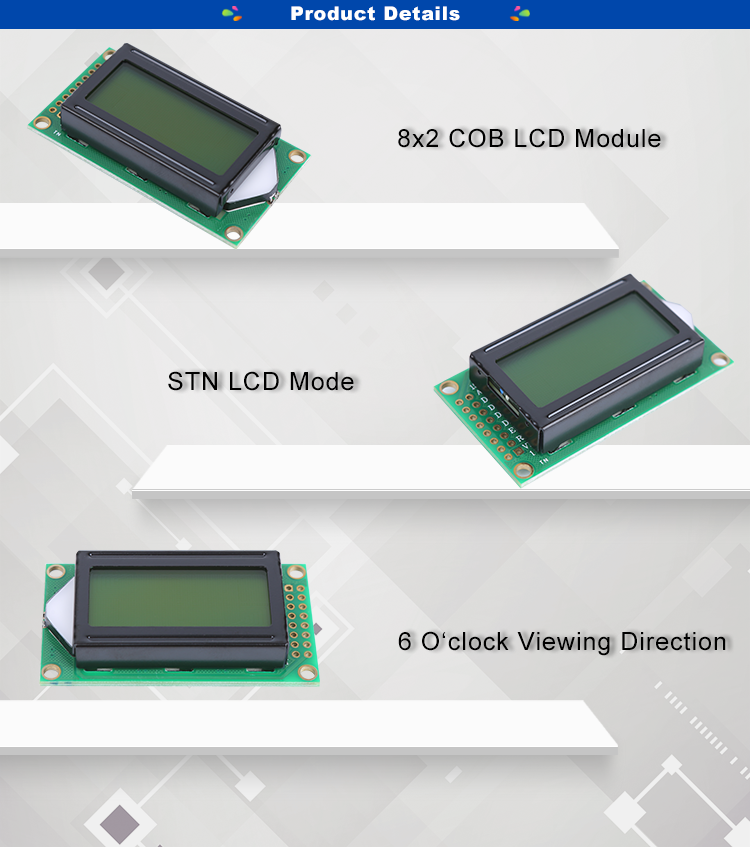

8x2 LCD Display STN Screen Character LCD Module With 16 Pin 4-bit or 8-bit 6800 MPU interface

8x2 STN Alpha Numeric LCD Custom Char Screen Display Module With 16 Pin

Product Specification
LCD Name 8x2 LCD Display STN Screen Character LCD Module With 16 Pin 4-bit or 8-bit 6800 MPU interface
Display Format 8character*2 line
Module Size 58.0mm×32.0mm×13.2mm
View Area 38.0mm×16.0mm
Character Size 2.96mm×5.56mm
Character Pitch 3.55mm×5.94mm
IC AIP31066 or Eqv (Defualt English / Japan Font)
Interface 16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method 1/16 Duty, 1/5 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃

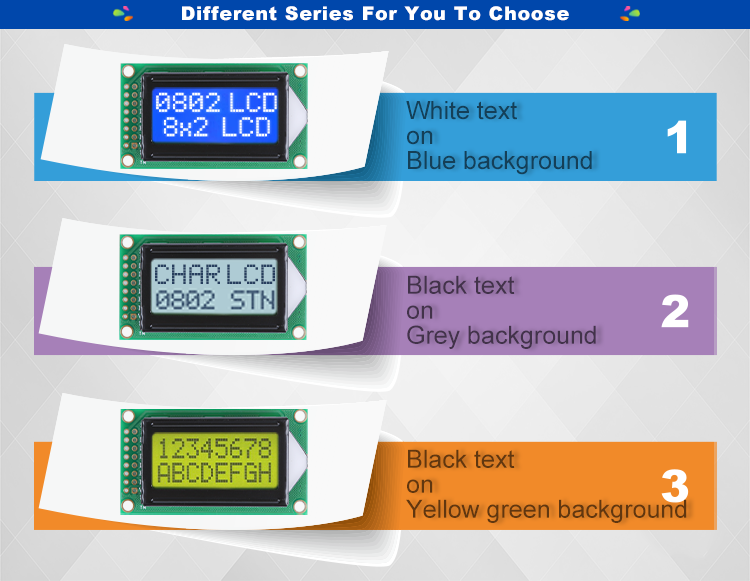

Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WC0802B0SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WC0802B0SKW6B-A1 STN Grey Positive White Color Black Color Grey Color 5V
3 WC0802B0SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V

8x2 STN Alpha Numeric LCD Custom Char Screen Display Module With 16 Pin
