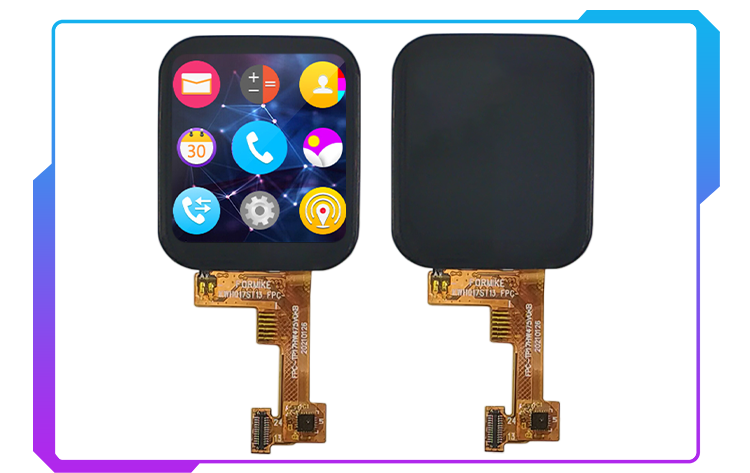

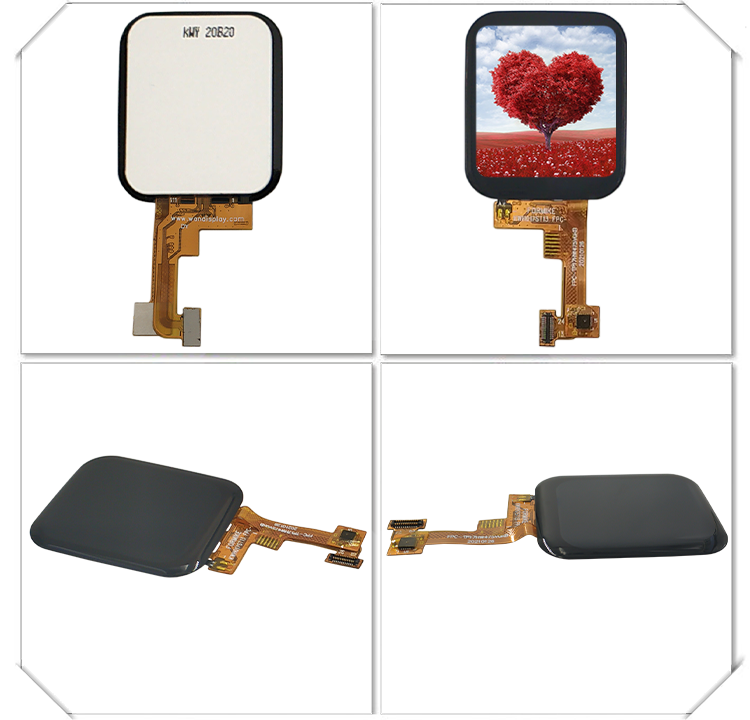

1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
Specifications
Controller Ic :
JD9851A
Supply Voltage :
3.2V
Display Type :
IPS TFT Display
Place of Origin :
China
Display Size :
1.69 inch
Brand Name :
Formike
Product Name :
1.69 Inch Display TFT MCU 240x280 Smart Watch LCD Screen with JD9851A IC and Touch Panel
Color :
Color
Model Number :
KWH017ST13-C01
Supply Ability :
5000000000 pieces/year
Dimensions :
34.70mm x × 40.70mm x 3.51mm
Packaging Details :
Tray + Inner Box + Carton
Resolution :
240 x 280
Interface :
24Pin, 8 BIT MCU
MOQ :
1 piece
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Viewing Angle :
All
Operating Temperature :
-20°C to 70°C
Payment Terms :
T/T, L/C, Credit card, Cash
Description

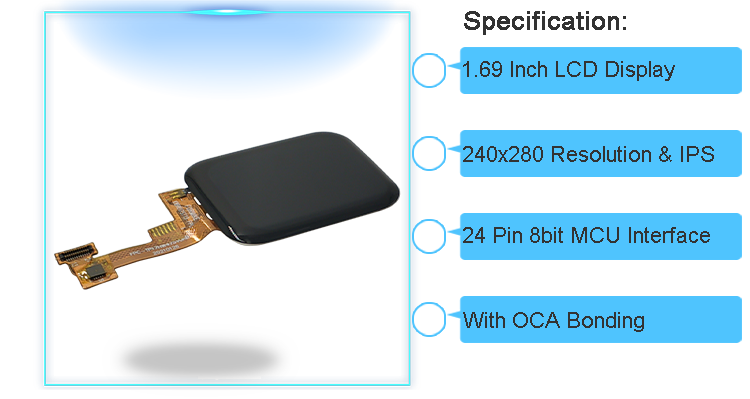

1.69 Inch Display TFT MCU 240x280 Smart Watch LCD Screen with JD9851A IC and Touch Panel

1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel

Product Name 1.69 Inch Display TFT MCU 240x280 Smart Watch LCD Screen with JD9851A IC and Touch Panel
LCD Size 1.69 Inch TFT LCD Display Module
Display Mode IPS
Resolution 240x280
Outline Dimension (mm) 34.70x40.70x3.51
Active Area (mm) 27.97x32.63
Dot pitch (mm) 0.11655x0.11655
Viewing Direction All
Interface 8bit MCU Interface, 24 Pin
Driver IC JD9851A (Optional with ST7789V driver ic)
Brightness (Cd/m2) 300
Contrast Ratio 800:1
Backlight 3 White LED

Backlight Supply

(Current/Voltage)

 60mA 3.2V
Touch Screen With Capacitive Touch Panel

Feature:
1. LCM with CTP by OCA bonding;
2. Super thin, 1.53mm only when withon touch;
3. Bigger screen, less Bezel (AA is 27.97mm x 32.63 mm on 34.70 x 40.70mm outline dimension);
4. Intergrated two FPCs into one;
5. FPC has already bonded a connector;
6. The interface is MCU 8bit;
7. When LCM has CTP attached, the brightness is 300cd/m2, and without CTP, it is 350cd/m2;
8. CTP has already bonded a chip;
9. Cover glass of CTP is with 2.5D;
10. Cover glass of CTP is with AF Anti-fingerprint.

* KWH017ST13-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 240x280 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
