Specifications
Model Number :
KWH017ST01-F01
Controller Ic :
JD9851A
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
1.69 LCD Display TFT Screen 240*280 SPI LCD Module
Payment Terms :
T/T, L/C, Credit card, Cash
Resolution :
240 x 280
Display Size :
1.69 inch
MOQ :
1 piece
Interface :
15Pin, 4W SPI
Display Type :
IPS TFT Display
Operating Temperature :
-20°C to 70°C
Place of Origin :
China
Dimensions :
30.17mm x 37.68mm x 1.53mm
Brand Name :
Formike
Supply Voltage :
3.1V
Color :
Color
Supply Ability :
5000000000 pieces/year
Viewing Angle :
All
Packaging Details :
Tray + Inner Box + Carton
Description

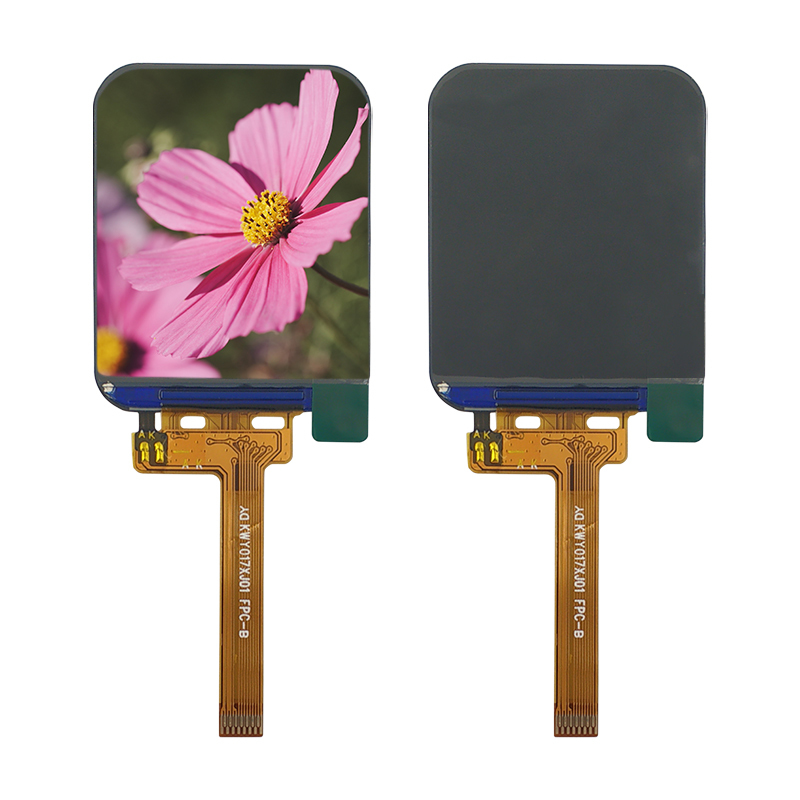

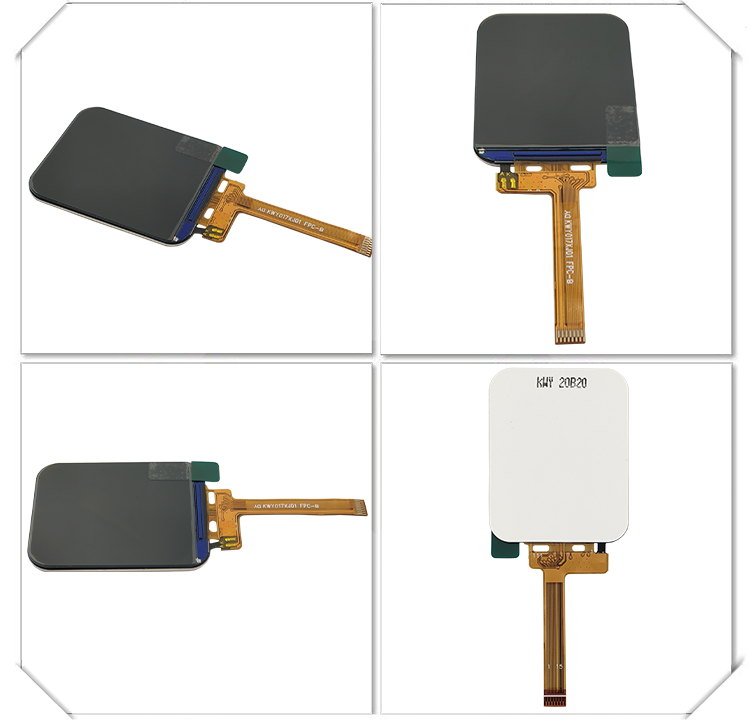

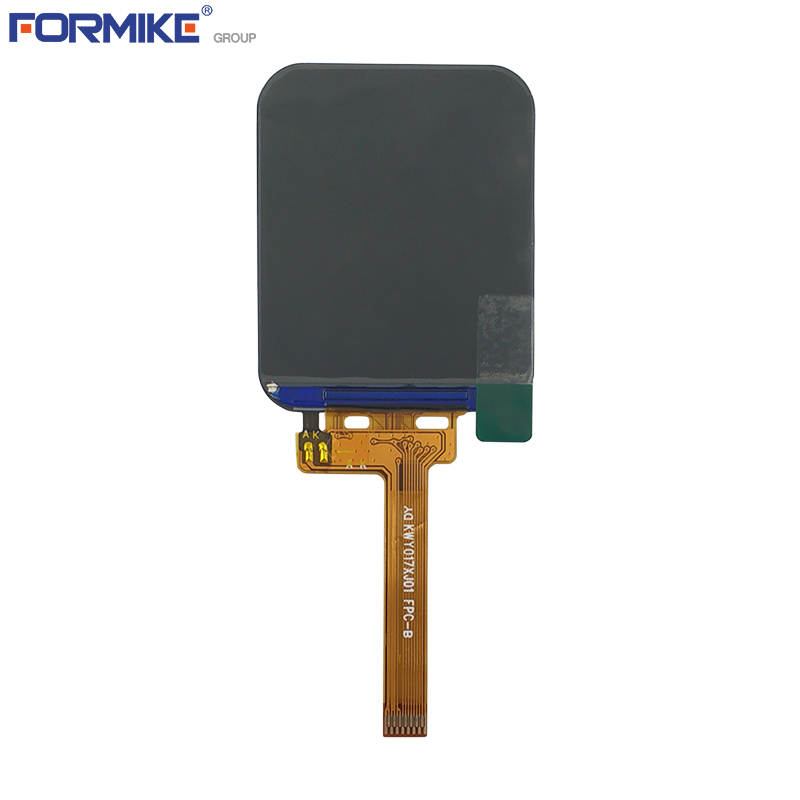

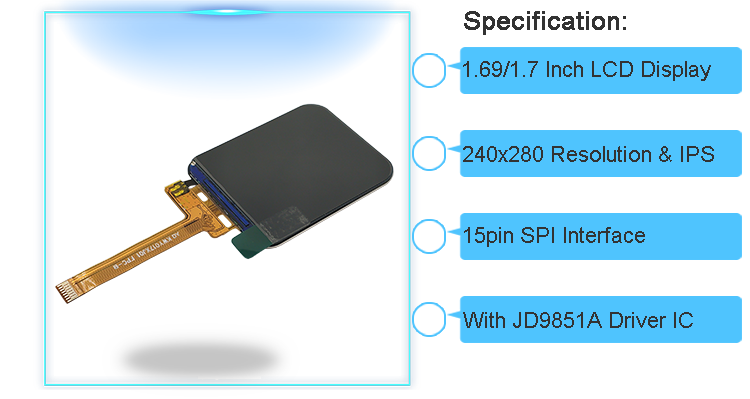

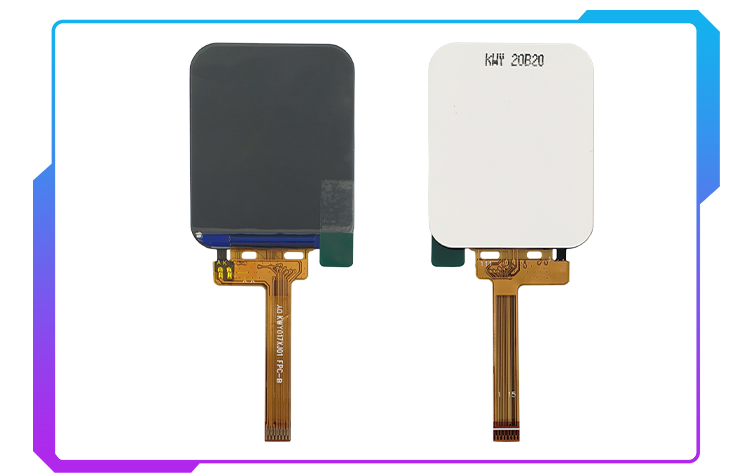

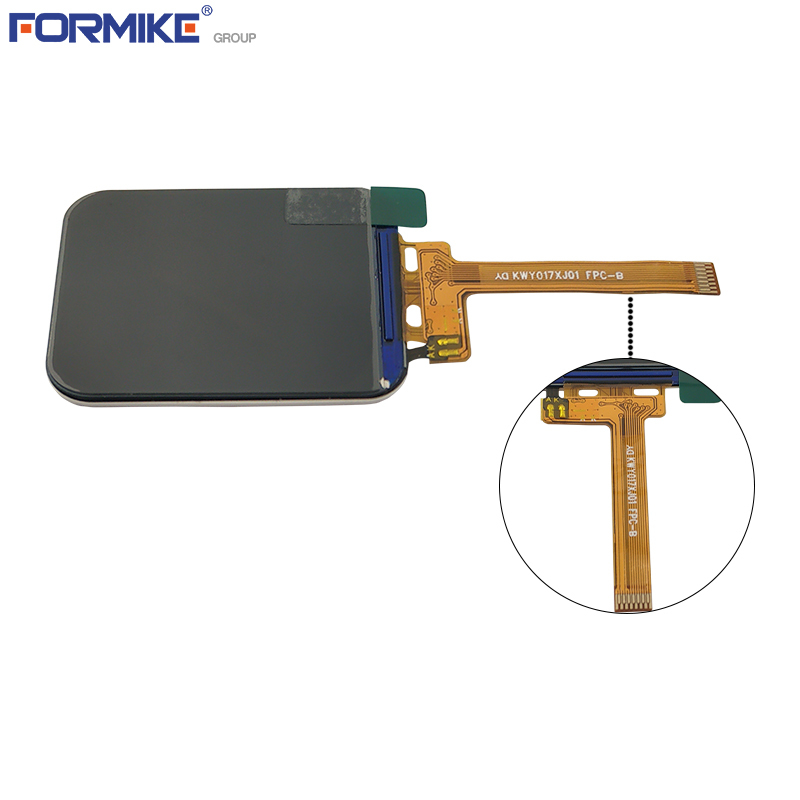

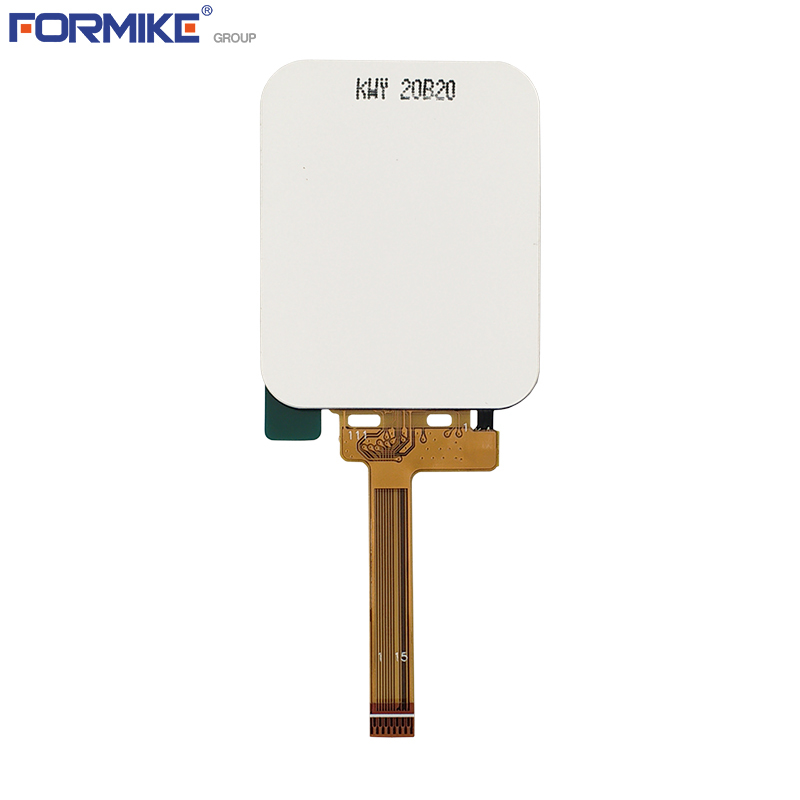

1.69 LCD Display TFT Screen 240*280 SPI LCD Module

15Pin SPI LCD TFT Display Module Screen 240x280 JD9851A Controller Custom

Product Name 1.69 LCD Display TFT Screen 240*280 SPI LCD Module
LCD Size 1.69 Inch TFT LCD Display Module or 1.7 Inch
Display Mode IPS
Resolution 240x280
Outline Dimension (mm) 30.17x37.68x1.53
Active Area (mm) 27.97x32.63
Dot pitch (mm) 0.11655x0.11655
Viewing Direction All
Interface SPI Interface, 15 Pin
Driver IC JD9851A
Brightness (Cd/m2) 350
Contrast Ratio 800:1
Backlight 3 White LED

Backlight Supply

(Current/Voltage)

 60mA 3.1V
Touch Screen Without (Optional with)

* KWH017ST01-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x280 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
