Specifications
Controller Ic :
JD9851A
Interface :
8 BIT MCU
Dimensions :
34.20mm x 41.00mm x 3.59mm
MOQ :
1 piece
Payment Terms :
T/T, L/C, Credit card, Cash
Supply Voltage :
3.1V
Model Number :
KWH017ST26-C03
Product Name :
MCU LCD Display 240x280 TFT Touch Screen 1.69 Inch LCD Module with OCA Bonding
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
Viewing Angle :
All
Packaging Details :
Tray + Inner Box + Carton
Color :
Color
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Resolution :
240 x 280
Display Size :
1.69 inch
Place of Origin :
China
Supply Ability :
5000000000 pieces/year
Display Type :
IPS TFT Screen
Description

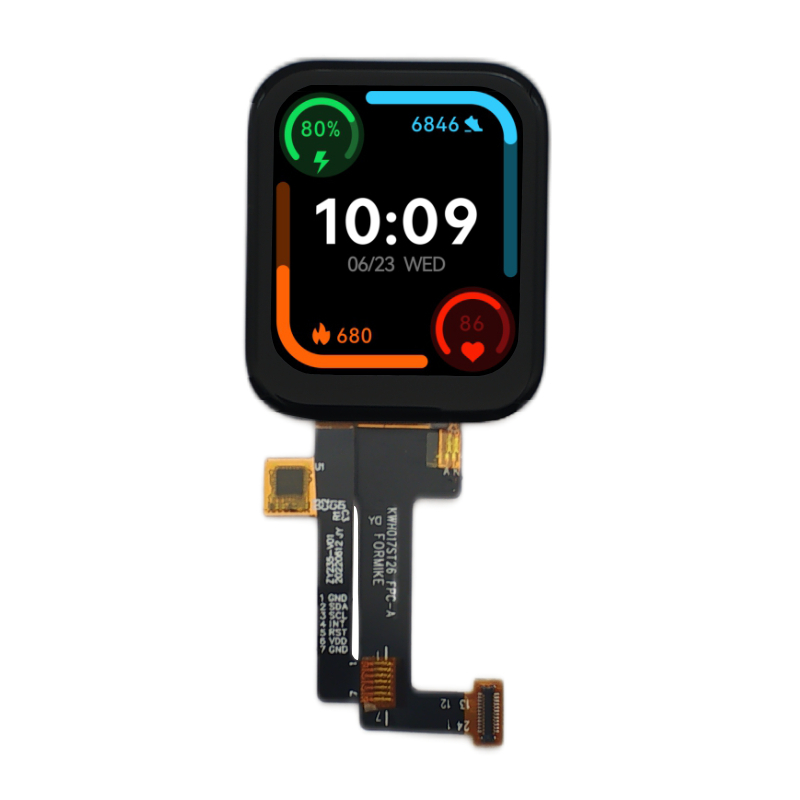

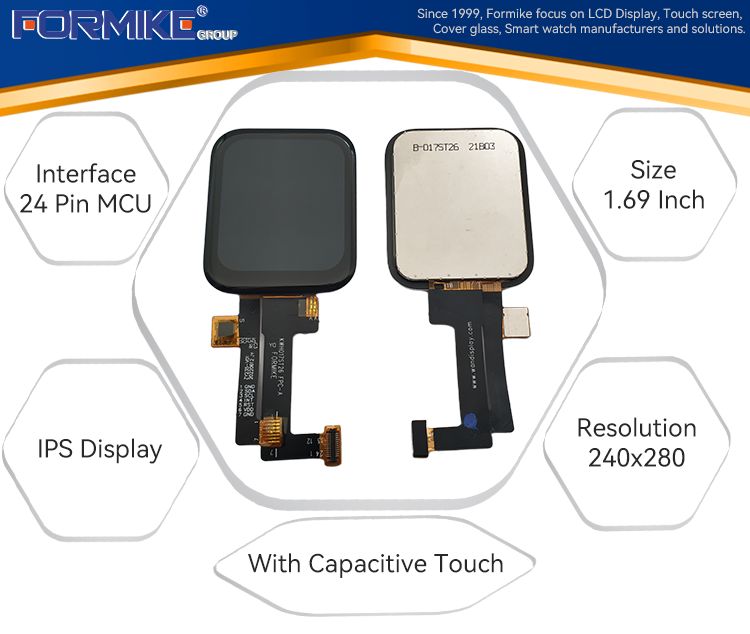

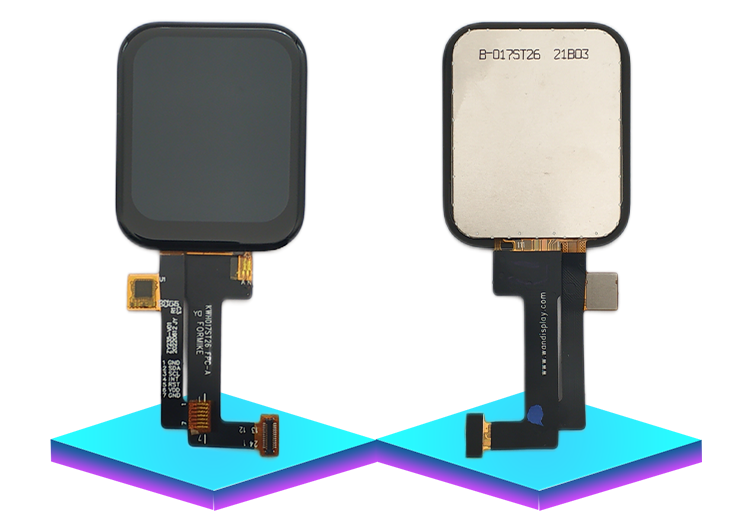

MCU LCD Display 240x280 TFT Touch Screen 1.69 Inch LCD Module with OCA Bonding

MCU LCD Panel Display Module 240x280 TFT Touch Screen With OCA Bonding

Product Name MCU LCD Display 240x280 TFT Touch Screen 1.69 Inch LCD Module with OCA Bonding
LCD Size 1.69 Inch TFT LCD Display Module
Display Mode IPS
Resolution 240x280
Outline Dimension (mm) 34.20X41.00X3.59
Active Area (mm) 27.97x32.63
Dot pitch (mm) 0.11655x0.11655
Viewing Direction All
Interface 8bit MCU Interface, 24 Pin
Driver IC JD9851A (Optional with ST7789V driver ic)
Brightness (Cd/m2) 300
Contrast Ratio 800:1
Backlight 3 White LED

Backlight Supply

(Current/Voltage)

 60mA 3.1V
Touch Screen With Capacitive Touch Panel

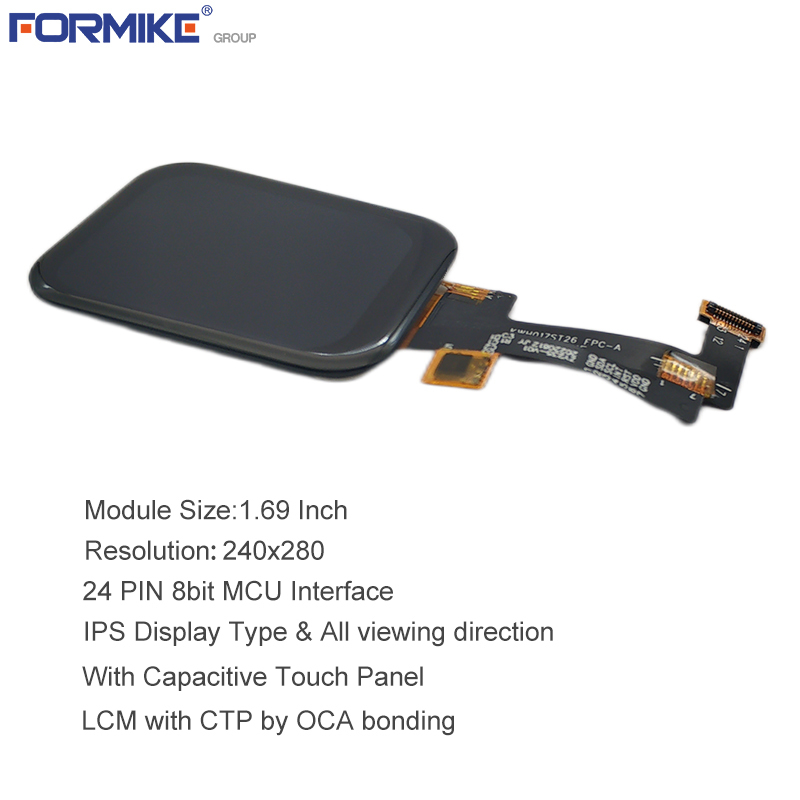

Feature:
1. LCM with CTP by OCA bonding;

2. G+F(OCA bonding with LCM);
3. Bigger screen, less Bezel (AA is 27.97mm x 32.63 mm on 34.20 x 41.00mm outline dimension);

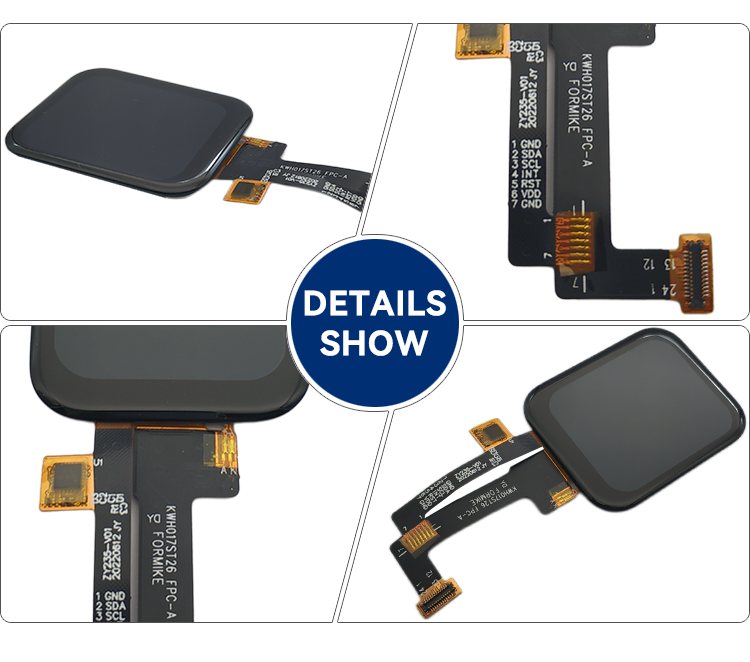

4. Intergrated two FPCs into one;
5. FPC has already bonded a connector;
6. The interface is MCU 8bit;
7. When LCM has CTP attached, the brightness is 300cd/m2, and without CTP, it is 350cd/m2;
8. CTP has already bonded a chip;
9. Cover glass of CTP is with 2.5D;
10. Cover glass of CTP is with AF Anti-fingerprint.

* KWH017ST26-C03 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 240x280 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
