Laser Dust Sensor KGD - PM - 117
Laser Dust Sensor KGD - PM - 117
Specifications
Brand Name :
KACISE
Model Number :
KGD-PM-117
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Detection Range :
0 - 1000μg/m³
Data Output :
PM1.0, PM2.5, PM10
Power-on Stabilization Time :
≤8s
Data Refresh Frequency :
1s
Operating Conditions :
-10°C to 50°C, 5 - 95%RH
Operating Voltage :
DC 5.0V±0.1V; with a ripple < 50mV
Description

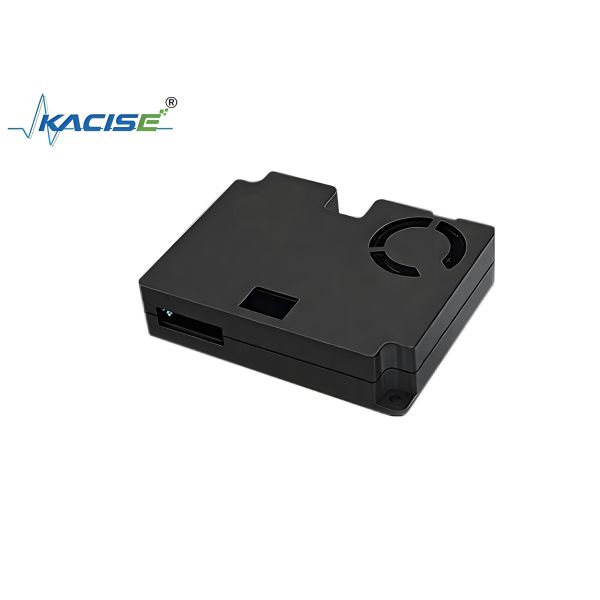

Laser Dust Sensor KGD - PM - 117

Product Introduction

The laser dust sensor KGD - PM - 117 is a laser dust sensor with the same installation size and interface as the PM1003 infrared dust sensor. It is used to measure the mass concentration of PM2.5 particulate matter in indoor air. The client can achieve a perfect upgrade from grade display to digital display without adjusting the structure and hardware.

Laser Dust Sensor KGD - PM - 117

Product Features

  • Rapid response and high accuracy.
  • The installation size and interface are fully compatible with those of the infrared sensor.
  • Built-in shield design, with good anti-interference performance.

Technical Parameters

Detection Range 0 - 1000μg/m³
Data Output PM1.0, PM2.5, PM10
Power-on Stabilization Time ≤8s
Data Refresh Frequency 1s
Detection Accuracy ±15μg/m³ or ±15% of the reading (Under the environmental conditions of 25℃±2℃, 50±10%RH, benchmarked against TSI8530)
Operating Conditions -10°C to 50°C, 5 - 95%RH
Storage Conditions -30°C to 60°C, 0 - 95%RH (non-condensing)
Operating Voltage DC 5.0V±0.1V; with a ripple < 50mV
Operating Current ≤100mA
Standby Current <20mA
Signal Output ① UART_TTL(3.3V) ② PWM(Default 5V, 3.3V reserved)
Product Dimensions W58.7H45D13.9(mm)
