R1234ZE Refrigerant Leakage Monitoring Sensor KGD-AM-205 Non-dispersive Infrared Detection And IP54 Protection
R1234ZE Refrigerant Leakage Monitoring Sensor KGD-AM-205 Non-dispersive Infrared Detection And IP54 Protection
Specifications
Brand Name :
KACISE
Model Number :
KGD-AM-205
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Detection Principle :
Non-dispersive infrared detection technology (NDIR)
Detection Range :
0 - 100%LFL (100%LFL = 6.5%Vol)
Service Life :
10 years
IP Protection Grade :
IP54 (IP65 can be customized)
Operating Conditions :
-30℃ to 60°C; 0 - 95%RH (non-condensing)
Product Certifications :
CE, REACH, ROHS
Description

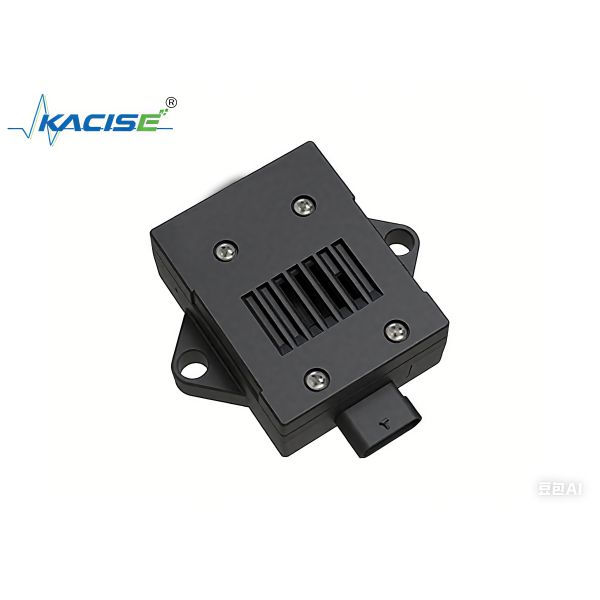

Refrigerant (R1234ZE) Leakage Monitoring Sensor KGD - AM - 205

Product Introduction

The refrigerant (R1234ZE) leakage monitoring sensor KGD - AM - 205 is a gas sensor for real-time monitoring of R1234ZE refrigerant leakage. It adopts the patented technology of Sifang Optoelectronic's infrared dual-beam, which not only extends the product's service life but also better solves the impact of temperature, humidity, and device aging on the measurement accuracy of the sensor. It has better long-term stability and higher reliability.

R1234ZE Refrigerant Leakage Monitoring Sensor KGD-AM-205 Non-dispersive Infrared Detection And IP54 Protection

Product Features

  • Long service life, up to 15 years.
  • Fast response speed, with no false alarms or missed alarms.
  • High precision, with high detection accuracy within the full temperature and humidity range.
  • Anti-condensation and high reliability.
  • Anti-interference and good gas selectivity.

Technical Parameters

Detection Principle Non-dispersive infrared detection technology (NDIR)
Detection Range 0 - 100%LFL (100%LFL = 6.5%Vol)
Service Life 10 years
IP Protection Grade IP54 (IP65 can be customized)
Operating Conditions -30℃ to 60°C; 0 - 95%RH (non-condensing)
Average Current ≤70mA (without anti-condensation function); ≤280mA (with anti-condensation function)
Output Modes 1. UART@3.3V (default)Analog voltage output 0.8 - 4V (default) PWM (can be customized by software) 4 - 20mA current output (can be customized by hardware) RS485 communication (can be customized by hardware)
Product Certifications CE, REACH, ROHS
