Refrigerant (R744) Leakage Monitoring Sensor KGD - AM - 206
Refrigerant (R744) Leakage Monitoring Sensor KGD - AM - 206
Specifications
Brand Name :
KACISE
Model Number :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Detection Principle :
Non-dispersive infrared detection technology (NDIR)
Detection Range :
0 - 4%Vol
Service Life :
10 years
IP Protection Grade :
IP54 (IP65 can be customized)
Operating Conditions :
-30℃ to 60°C; 0 - 95%RH (non-condensing)
Product Certifications :
CE, REACH, ROHS
Description

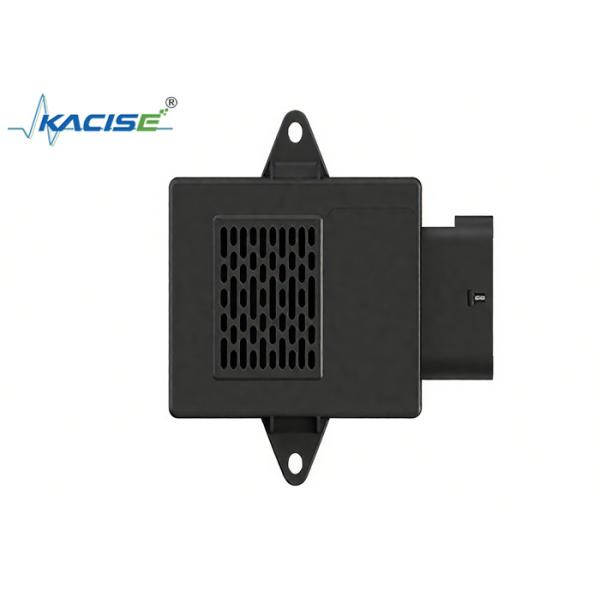

Refrigerant (R744) Leakage Monitoring Sensor KGD - AM - 206

Product Introduction

The refrigerant (R744) leakage monitoring sensor KGD - AM - 206 is a gas sensor for real-time monitoring of R744 refrigerant leakage. It adopts the patented technology of Sifang Optoelectronic's infrared dual-beam. While improving the product's service life, it can better address the impact of temperature, humidity, and device aging on the sensor's measurement accuracy, ensuring better long-term stability and higher reliability during use.

Refrigerant (R744) Leakage Monitoring Sensor KGD - AM - 206

Product Features

  • Long service life, up to 15 years.
  • Fast response speed, with no false alarms or missed alarms.
  • High precision, featuring high detection accuracy within the full temperature and humidity range.
  • Anti-condensation and high reliability.
  • Anti-interference and good gas selectivity.

Technical Parameters

Detection Principle Non-dispersive infrared detection technology (NDIR)
Detection Range 0 - 4%Vol
Service Life 10 years
IP Protection Grade IP54 (IP65 can be customized)
Operating Conditions -30℃ to 60°C; 0 - 95%RH (non-condensing)
Average Current ≤70mA (without anti-condensation function); ≤280mA (with anti-condensation function)
Output Modes 1. UART@3.3V (default) Analog voltage output 0.8 - 4V (default) PWM (can be customized by software) 4 - 20mA current output (can be customized by hardware) RS485 communication (can be customized by hardware)
Product Certifications CE, REACH, ROHS
