Portable Particle Counter KGD OPC 202 Power-on Stabilization Time ≤8s Detection Range 0 1
Portable Particle Counter KGD OPC 202 Power-on Stabilization Time ≤8s Detection Range 0 1
Specifications
Brand Name :
KACISE
Model Number :
KGD-OPC-202
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Number of Channels :
Multi-channel (0.3μm, 0.5μm, 1.0μm, 5.0μm, 10μm)
Counting Efficiency :
50%@0.3μm 100%@≥0.5μm (Under the environmental conditions of 25±2℃, 50±10%RH)
Detection Range :
0 - 1,000,000 pcs/28.3L
Power-on Stabilization Time :
≤8s
Data Refresh Frequency :
1s
Operating Conditions :
0℃ to 45℃; 0 - 95%RH (non-condensing)
Description

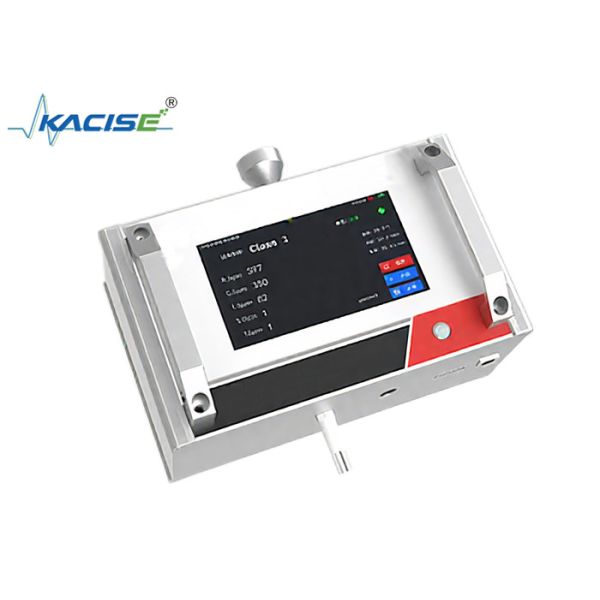

Portable Particle Counter KGD - OPC - 202

Product Introduction

The portable particle counter KGD - OPC - 202 adopts the principle of optical scattering. It can accurately detect and calculate the number of suspended particulate matters with different particle sizes in the air per unit volume. It is equipped with a built-in dust source intelligent recognition module unique to Sifang Optoelectronic, and has a high gas sampling rate of 28.3L/min. It can simultaneously output the particle numbers of five channels: 0.3μm, 0.5μm, 1.0μm, 5.0μm, and 10μm (the default unit is pcs/28.3L, and it can be switched to pcs/m³). The indication error meets the JJF - 1190 standard.

Portable Particle Counter KGD OPC 202 Power-on Stabilization Time ≤8s Detection Range 0 1

Technical Parameters

Number of Channels Multi-channel (0.3μm, 0.5μm, 1.0μm, 5.0μm, 10μm)
Counting Efficiency 50%@0.3μm 100%@≥0.5μm (Under the environmental conditions of 25±2℃, 50±10%RH)
Detection Range 0 - 1,000,000 pcs/28.3L
Power-on Stabilization Time ≤8s
Data Refresh Frequency 1s
Operating Conditions 0℃ to 45℃; 0 - 95%RH (non-condensing)
Storage Conditions -20℃ to 60℃, 0 - 95%RH (non-condensing)
Operating Voltage DC 24.0V±15%
Battery Standby Time ＞5h (Working for 2 minutes and sleeping for 28 minutes)
Average Operating Current ≤3A
Communication Interface RS485 interface (Standard configuration) RJ45 (Standard configuration)
Product Lifespan ≥3 years
Sampling Flow 28.3L/min
Sampling Head Isokinetic sampling probe
External Sampling Tube Inner diameter: ф10mm Length: ≤3m
Operating Mode Adjustable (Default: Working for 2 minutes and sleeping for 28 minutes)
Display 7-inch color screen
Calibration JJF 1190-2008
