high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter
high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter
high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter
high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter
high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter
high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter
high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter
high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter
high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter
high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter
Specifications
Brand Name :
ruiting
Model Number :
RTYS-1800LM
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
13000KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
380V,3phase,50HZ
Dimension(l*w*h) :
10000*4100*3200mm
Product name :
1800 Jumbol Diameter Roll Gantry Slitting Rewinding Machine With 400m/Min
Speed :
400m/min
Precision :
±0.1mm
Type :
paper slitting machine
Condition :
New
Description

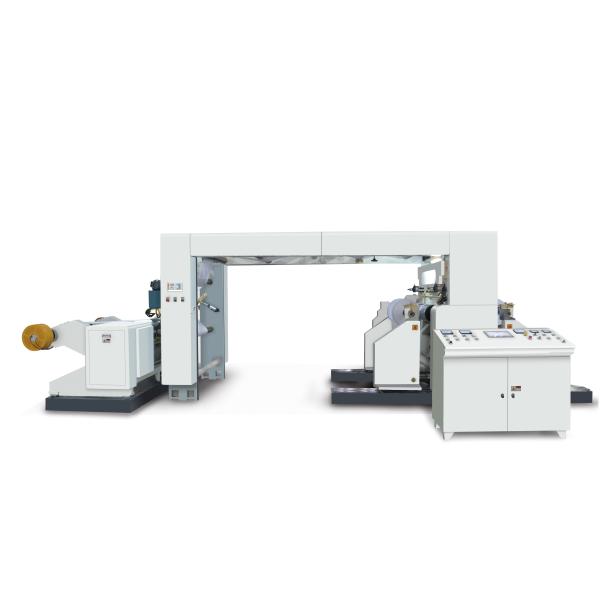

1800 Jumbol Diameter Roll Gantry Slitting Rewinding Machine With 400m/Min

Product Description

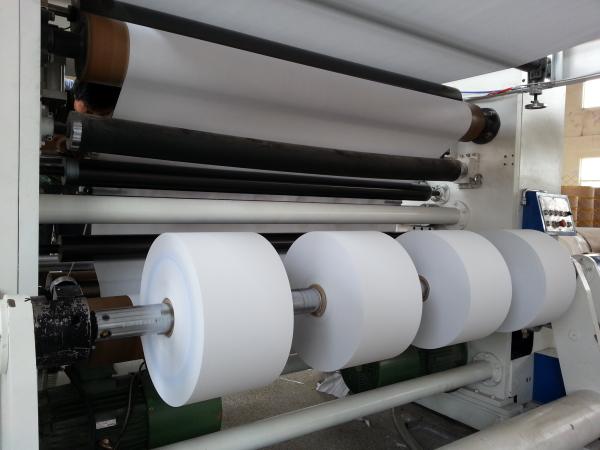

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

) Meter counting

2) EPC web guide system

3) Auto taper tension control

4) 10 sets rotary blade

5) PLC man- machine interface

6) 3 inch shaft for both rewinding

7) Automatic loading, unloading system

8) Max unwinding diameter 1600mm

9) Max rewinding diameter 1600mm

10) Unwinding use shaftless model

Main Technical Specification:

Max. web width 1800mm
Max. unwinding diameter 1600mm
Max. rewinding diameter 1600mm
Min. itemize width 30mm
Slitting precision ±0.2mm
Cutting speed 5-400m/min
Overall dimensions(L*W*H) 10000*4100*3200mm
Machine weight 13000kg

high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameterhigh speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameterhigh speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameterhigh speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameterhigh speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter

high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter

high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter

high speed 400m/Min Slitting Rewinding Machine 1800mm Jumbol Diameter
