Specifications
Brand Name :
ruiting
Model Number :
RTFQ-1300C
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
20 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Condition :
New
Power(w) :
5.5KW
Speed :
400M/MIN
Tension control :
Auto
Color :
Customized
Description

1300 model high speed paper pvc plastic film roll slitting machine slitter rewinder with friction shaft

Product Description

High speed paper film plastic roll to roll slitting rewinding machine

The machine is suitable for sltting paper, film material from jumbol roll to small narrow rolls in high speed.

Main features

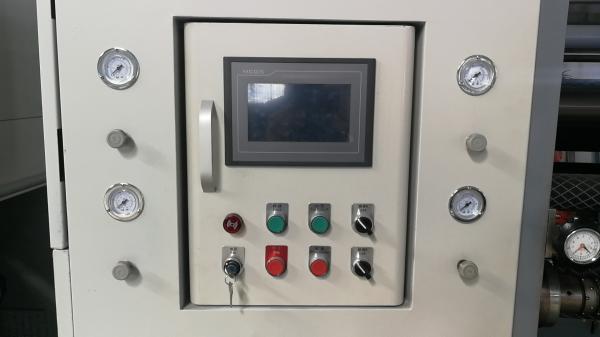

1) The machine adpot PLC( Germany Siemens) touch screen, 3 servo motors.

2) Meter counting system

3) Unwind use auto loading system, shaftless loading( which can suitable for 3 inch and 6 inch core both)

4) Rewinding with auto unloading frame

5) Unwind side use web guide system

6) With 8 sets slitting knife

Main Technical Specification:

Max web width

1300mm

Max rewinding diameter

550mm

Max. unwinding diameter

700mm

Min slitting width

30mm

Power Supplier

AC380V, 3 phase

Cutting precision

0.2mm

Cutting speed

10-400m/min

Overall dimensions(L*W*H)

2.0m*2.45m*1.35m

Machine weight

2300kg

Material details:

Slitting material paper,foil, PVC,
cutting knife razor knife,round knife as your request
Unwind put diameter can make machine according to your material max.size
Rewind diameter can customize

FQA

1.Are you factory or trading company?


We are factory.


2.What is your after service?


We offer customer a lifetime service.


3.Do you have CE certificate?

Yes, we have CE certificate of our machines.

4.What is the shipping time?


Around 15-30 days, depend on different model.


5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
