Specifications
Brand Name :
ruiting
Model Number :
RTYS-1600D
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
25 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
2600KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
380V,3phase,50HZ
Dimension(l*w*h) :
2000*2650*1350mm
Product name :
1600 Middle Speed Foil Slitting Machine With Web Guide System
Speed :
200m/min
Precision :
±0.1mm
Type :
foil,plastic film, slitting machine
Condition :
New
Description

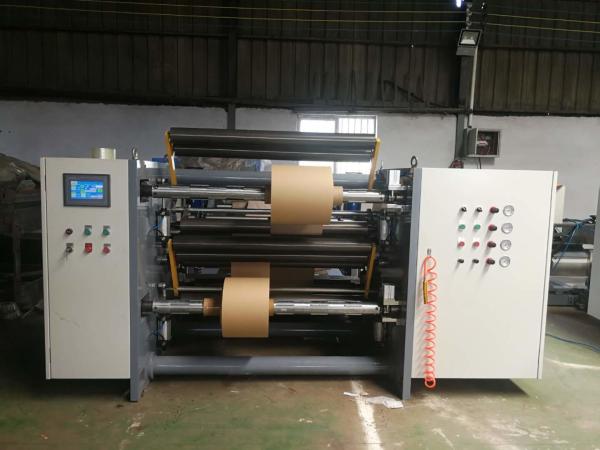

1600 Middle Speed Foil Slitting Machine With Web Guide System

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

) Meter counting

2) EPC web guide system

3) Auto taper tension control

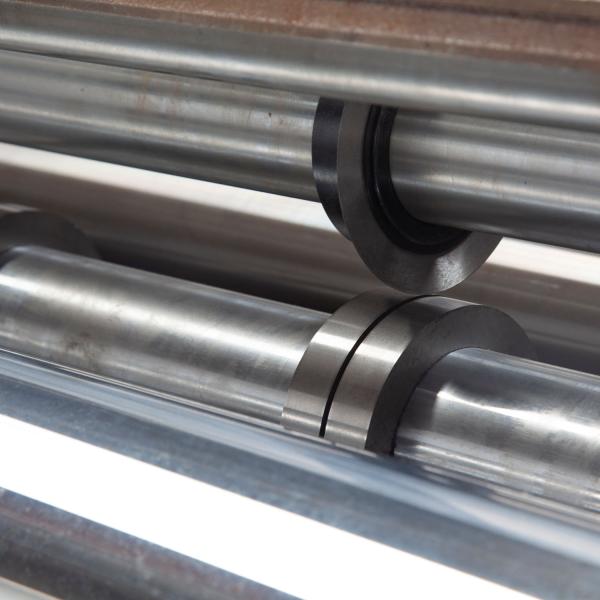

4) 10 sets rotary blade

5) PLC man- machine interface

6) 3 inch shaft for both rewinding

7) Automatic loading system

8) Max unwinding diameter 1400mm

9) Max rewinding diameter 600mm

Main Technical Specification:

Max. web width 1600mm
Max. unwinding diameter 1400mm
Max. rewinding diameter 600mm
Min. itemize width 30mm
Slitting precision ±0.2mm
Cutting speed 5-200m/min
Overall dimensions(L*W*H) 2.0*2.65*1.35m
Machine weight 2600kg
