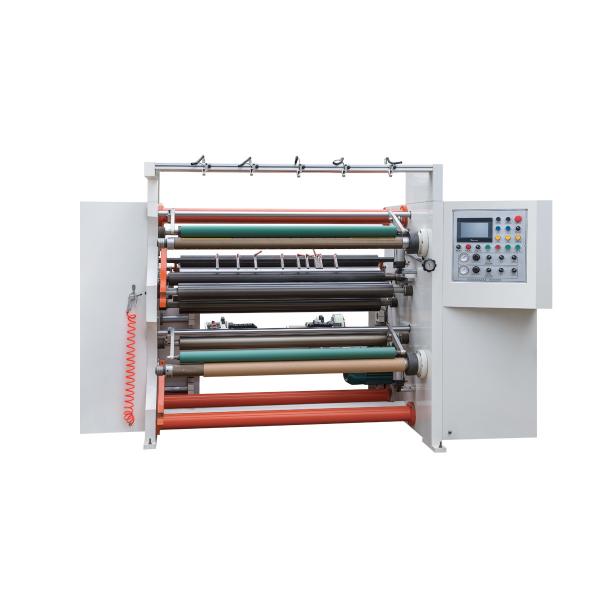

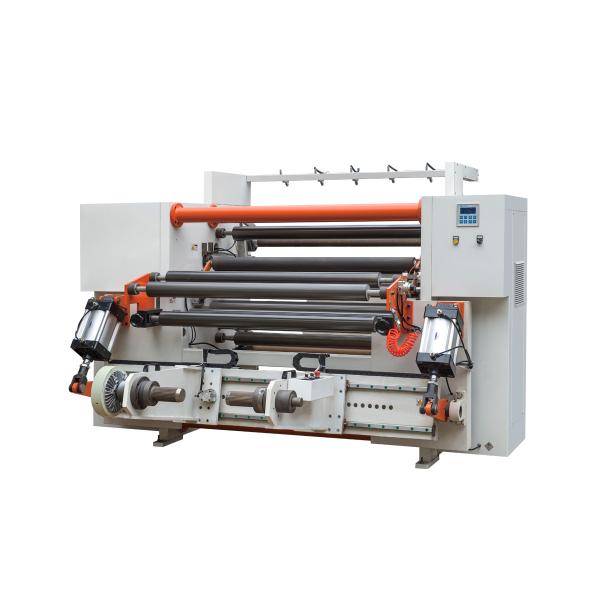

350m/min High Speed Slitting Machine With Auto Knife Adjust
350m/min High Speed Slitting Machine With Auto Knife Adjust
350m/min High Speed Slitting Machine With Auto Knife Adjust
350m/min High Speed Slitting Machine With Auto Knife Adjust
350m/min High Speed Slitting Machine With Auto Knife Adjust
350m/min High Speed Slitting Machine With Auto Knife Adjust
350m/min High Speed Slitting Machine With Auto Knife Adjust
350m/min High Speed Slitting Machine With Auto Knife Adjust
Specifications
Brand Name :
ruiting
Model Number :
RTFQ-1600C
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
3500KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
380V
Dimension(l*w*h) :
2800*3100*1800mm
Product name :
1600C High Speed Film Slitting Rewinding Machine With Auto Knife Adjust
Speed :
350m/min
Precision :
±0.1mm
Type :
Slitting Rewinder
Condition :
New
Description

1600C High Speed Film Slitting Rewinding Machine With Auto Knife Adjust

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

) Meter counting

2) EPC web guide system

3) Auto taper tension control

4) 10 sets rotary blade

5) PLC man- machine interface

6) 3 inch shaft for both rewinding

7) Hydraulic automatic loading

8) Max unwinding diameter 1000mm

9) Max rewinding diameter 600mm

10) Unwinding use shaftless model

Main Technical Specification:

Max. web width 1600mm
Max. unwinding diameter 1000mm
Max. rewinding diameter 600mm
Min. itemize width 20mm
Slitting precision ±0.2mm
Cutting speed 5-350m/min
Overall dimensions(L*W*H) 2.8*1.5*1.8m
Machine weight 3500kg
