Specifications
Brand Name :
ruiting
Model Number :
RTYS-1600A
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
3800KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
380V
Dimension(l*w*h) :
3500*3700*1900mm
Product name :
1600 Cardboard Paper Cup Roll Slitter With Big Diameter Rewind
Speed :
350m/min
Precision :
±0.1mm
Type :
paper slitting machine
Condition :
New
Description

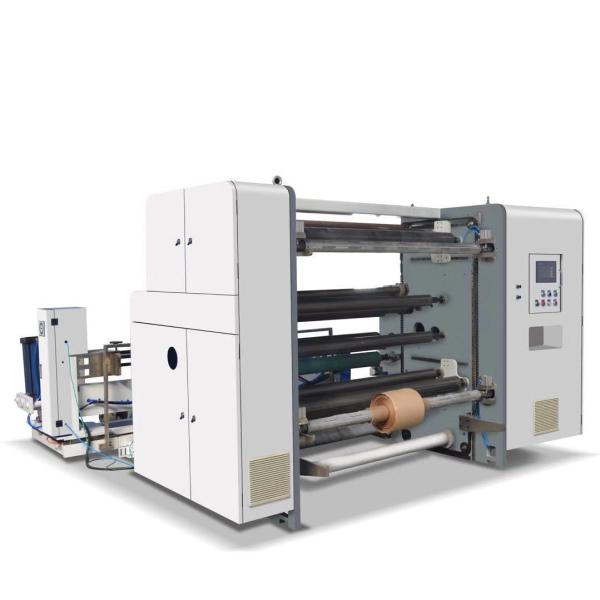

1600 Cardboard Paper Cup Roll Slitter With Big Diameter Rewind

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

) Meter counting

2) EPC web guide system

3) Auto taper tension control

4) 10 sets rotary blade

5) PLC man- machine interface

6) 3 inch shaft for both rewinding

7) Automatic loading, unloading system

8) Max unwinding diameter 1000mm

9) Max rewinding diameter 1000mm

10) Unwinding use shaftless model

Main Technical Specification:

Max. web width 1600mm
Max. unwinding diameter 1400mm
Max. rewinding diameter 1000mm
Min. itemize width 30mm
Slitting precision ±0.2mm
Cutting speed 5-350m/min
Overall dimensions(L*W*H) 3.5*3.7*1.9m
Machine weight 3800kg
