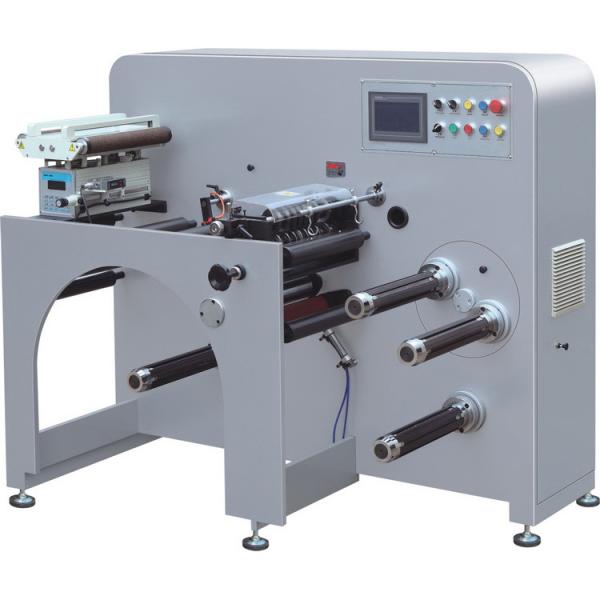

450mm High Speed Slitting Machine , 380V Turret Slitter Rewinder
450mm High Speed Slitting Machine , 380V Turret Slitter Rewinder
450mm High Speed Slitting Machine , 380V Turret Slitter Rewinder
450mm High Speed Slitting Machine , 380V Turret Slitter Rewinder
450mm High Speed Slitting Machine , 380V Turret Slitter Rewinder
450mm High Speed Slitting Machine , 380V Turret Slitter Rewinder
450mm High Speed Slitting Machine , 380V Turret Slitter Rewinder
450mm High Speed Slitting Machine , 380V Turret Slitter Rewinder
Specifications
Brand Name :
ruiting
Model Number :
RTON-450
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
1800KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
380V
Dimension(l*w*h) :
1850*1400*1300mm
Product name :
450 Automatic Aluminium Turrent Slitting Machine With Servo Motor
Speed :
350m/min
Precision :
±0.1mm
Type :
label slitter rewinder
Condition :
New
Description

450 Automatic Aluminium Turrent Slitting Machine With Servo Motor

Product Description

This machine is new product, mostly is used for slitting narrow roll material, it is for top high level market with full servo driven
system,typer tension system,top brand web guiding,turret rewind,it can meter and number counting,static eliminator,auto stop when lacking material.

Main features

1.Servo control with taper tension system, preset decelarate or stop when less roll detected,web guider with
haracteristics:
ultrasonic system.
2.Movable eccentric shear slitting in quick installation design. Standard high pressure waste suction system,plus
optional razor blade.
3.Taper tension control system, the turret rewinder save half time for collect the finished roll.
4.Imported Germany made best sensor for counting job, if the transparent film, it needs extra accessories.

Main Technical Specification:

Max. web width 450mm
Max. unwinding diameter 700mm
Max. rewinding diameter 500mm
Min. itemize width 30mm
Slitting precision ±0.2mm
Cutting speed 5-350m/min
Overall dimensions(L*W*H) 1.85*1.4*1.3m
Machine weight 1800kg
