Specifications
Brand Name :
ruiting
Model Number :
RTFQ-650H
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
1200KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
380V/220V
Dimension(l*w*h) :
2350*1400*1200mm
Product name :
600 High Speed Mobile Phone Protector Film Slitting Machine
Speed :
120m/min
Precision :
±0.1mm
Type :
film slitter rewinder
Condition :
New
Description

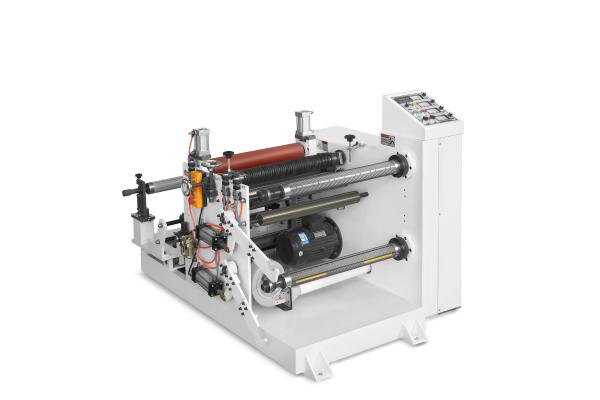

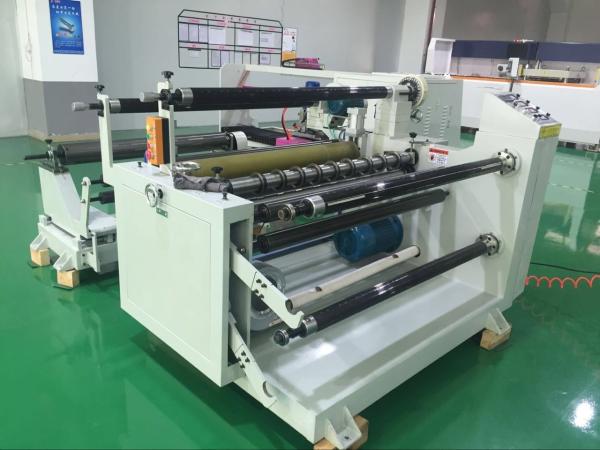

600 High Speed Mobile Phone Protector Film Slitting Machine

Product Description

This machine is a high-precision, high-sensitivity slitting equipment. Both rewinding and unwinding use high-precision air expansion shafts. The tension is freely adjusted by a magnetic powder clutch. The unwinding correction adopts ultrasonic probe automatic correction control, which can realize automatic detection. , Automatic deviation correction, automatic meter counting, anti-scratch material, automatic stop when set length, and alarm. It has the advantages of fast speed, precise cutting and simple operation.

Main features

  • ultrasonic web guide system
  • Inveter:Inovance brand
  • Unwind together type, max. 600mm diameter
  • Slitting knife:8 sets
  • Use special alu roller anti-scratch function

Main Technical Specification:

Max. web width 600mm
Max. unwinding diameter 800mm
Max. rewinding diameter 450mm
Min. itemize width 30mm
Slitting precision ±0.2mm
Cutting speed 5-100m/min
Overall dimensions(L*W*H) 2.3*1.4*1.2m
Machine weight 1200kg
