Specifications
Packaging Details :
plywood box
Test area :
infrared and ultraviolet flame detectors （IR,UR,IR2 flame detector）
Brand Name :
Gold
MOQ :
1
Supply Ability :
1 per 60 works days
Model Number :
GD-EN54-10
Place of Origin :
China
Delivery Time :
60 work days
Power Supply :
AC220V 50HZ (voltage fluctuation ≦±10%)
Laboratory Temperature :
15℃～35℃ (around 25℃ is ideal)
Name :
infrared and ultraviolet flame detectors Inspection apparatus
Certification :
ISO
Standard :
EN 54-10
Laboratory space :
Length 3.8 meters, Width 3.0 meters (including operating space), Height 3.0 meters or more
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,
Description

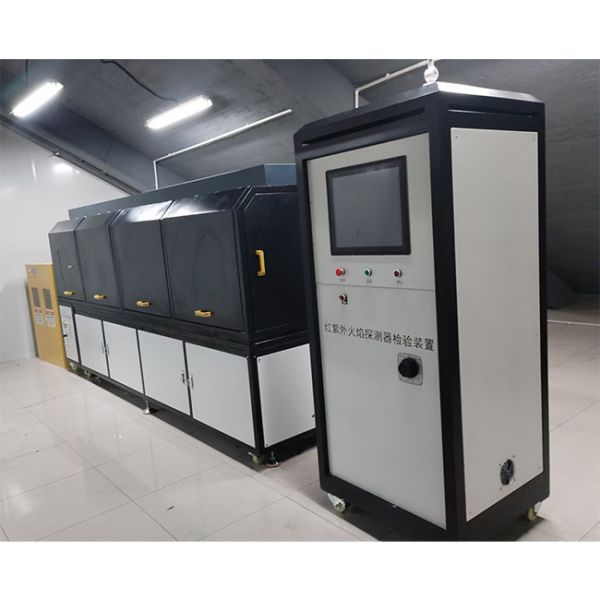

EN 54-10 Infrared and Ultraviolet Flame Detectors Inspection Apparatus
EN 54-10 infrared and ultraviolet flame detectors Inspection apparatus
This professional EN 54-10 UV/IR Flame Detector Tester is a functional testing device designed for field and laboratory testing of point flame detectors. It accurately simulates flame radiation signals and supports comprehensive testing including response threshold, consistency, repeatability, orientation, power-on, power supply parameter fluctuation, and ambient light interference testing.
Product Introduction
This portable, rechargeable battery-powered flame detector inspection apparatus employs high-precision radiation simulation sources. It is easy to operate, safe, and reliable, making it suitable for regular maintenance, installation, commissioning, performance verification, and compliance certification testing in hazardous industrial areas, petrochemical plants, warehouses, airports, tunnels, and other locations.
Compliance Standards
  • GB 12791-2006 & GB 15631-2008 Point-type infrared and ultraviolet flame detectors
  • EN 54-10:2002 + A1:2005 Fire Detection and Fire Alarm Systems
  • ISO 7240-10:2012 Fire detection and alarm systems
  • FM 3260 Approval Standard for Flame Radiation Detectors
Testing Capabilities
  • Response threshold test
  • Conformity test
  • Repeatability test
  • Orientation test
  • Power-on test
  • Power supply parameter fluctuation test
  • Ambient light interference test
Compatible Detector Types
  • Ultraviolet (UV) Flame Detector (185-260nm band)
  • Single-band Infrared (IR) Flame Detector
  • Dual-band Infrared (IR/IR) Flame Detector
  • Triple-band Infrared (IR3) Flame Detector
  • UV/IR Combined Flame Detector
  • UV/IR2 Combined Flame Detector
  • Multispectral Infrared Flame Detector
Technical Specifications
Optical System
• Dual-electric displacement track, effective length: 2.5m
• Movement measurement accuracy: ±4mm
• Straightness: <0.04mm
Light Source
• Methane combustion flame as red and ultraviolet light source
• Fuel gas: Methane (purity ≥99.9%)
• Radiant energy variation: <±5%
Sample Support System
• Height adjustment: 10-200 mm
• Angle adjustment: 0°, 15°, 30°, 45°, 60° (±5° accuracy)
• Movement speed: 50mm/s
• Distance range: 0-2500mm from flame
Control & Modulation
• Touch screen + PLC control system
• Chopper frequency: 0-14Hz continuously adjustable
• Remote-controlled high-voltage electronic ignition
Power Requirements
• Power supply: AC220V, 50Hz, 600W
• Voltage adjustment range: 0-50V for parameter fluctuation testing
Main Components
Component No. Description
1 Optical Track
2 Red/Ultraviolet Light Source
3 Neutral Density Filter
4 Modulator
5 Sample Slide Stage Support
6 Power Parameter Fluctuation Test
7 Control Box
8 Operation Display Touchscreen
9 Ambient Light Interference Device
Laboratory Requirements
Environmental Conditions
• Temperature: 15℃-35℃ (25℃ ideal)
• Relative Humidity: 25%-75% RH
• Atmospheric Pressure: 86-106 kPa
• No direct sunlight, open flames, or strong airflow
Space & Facility Requirements
• Minimum usable space: 3.8m × 3.0m × 3.0m
• Equipment dimensions: 2780mm × 530mm × 1370mm
• Minimum wall clearance: 600mm
• Well-ventilated laboratory environment
• Methane gas supply (99% purity)
