Specifications
MOQ :
1
Supply Ability :
1 per 60 works days
Name :
High,Medium,Low-expansion foam liquid foaming multiple and liquid separation time measuring instrument
Certification :
ISO
operating pressure range :
0.3–0.65 MPa
Brand Name :
Gold
Standard :
EN 1568 ,UL 162,NFPA 11
Model Number :
Gd-EN1568
Test area :
High,Medium,Low-expansion foam liquid foaming multiple and liquid separation time
Payment Terms :
L/C,D/P,D/A,T/T,
liquid separation time :
25,50%
Price :
negotiation
Packaging Details :
plywood box
Delivery Time :
60 works day
Place of Origin :
China
Foam material :
AFFF
Description
EN 1568 High, Medium, Low-Expansion Foam Liquid Testing Instrument
This precision testing instrument evaluates foam expansion ratio, 25% drainage time, and 50% drainage time for high-expansion, medium-expansion, and low-expansion foam solutions. Featuring stainless steel construction, high-precision flow control, and automated timing systems, it ensures accurate, repeatable results for foam concentrate manufacturers, fire safety laboratories, and regulatory compliance teams.
EN 1568 High,Medium,Low-expansion foam liquid foaming multiple and liquid separation time measuring instrument
Application Scope
Specifically designed for evaluating foam expansion ratio, 25% drainage time, and 50% drainage time of high-expansion, medium-expansion, and low-expansion foam solutions. The system supports international standards including ISO 7203-1-2, EN 1568-1-2-3, UL 162, and NFPA 11.
Compliance Standards
This equipment meets the following standards for determining foam expansion ratio and drainage times:
  • GB 15308-2006 "Foam Extinguishing Agents" - Sections 5.8 & 5.9
  • GB 19156-2019 "General Technical Conditions for Fire Monitors" - Section 6.4.4.1
  • GB 20031-2005 "Foam Fire Extinguishing Systems and Components" - Section 6.20.2
  • UL 162-2024 "Foam Equipment and Liquid Concentrates" - Section 10.2
  • EN 1568 Series:2018 "Fire extinguishing media - Foam concentrates"
  • NFPA 11-2024 "Standard for Low-, Medium-, and High-Expansion Foam"
  • ISO 7203 series:2019 "Fire extinguishing media - Foam concentrates"
Pressure Control
Proportional control valve and electromagnetic flowmeter ensure stable liquid supply pressure (0.3-0.65 MPa), compatible with ASTM D1881 test conditions.
Technical Specifications
System Composition

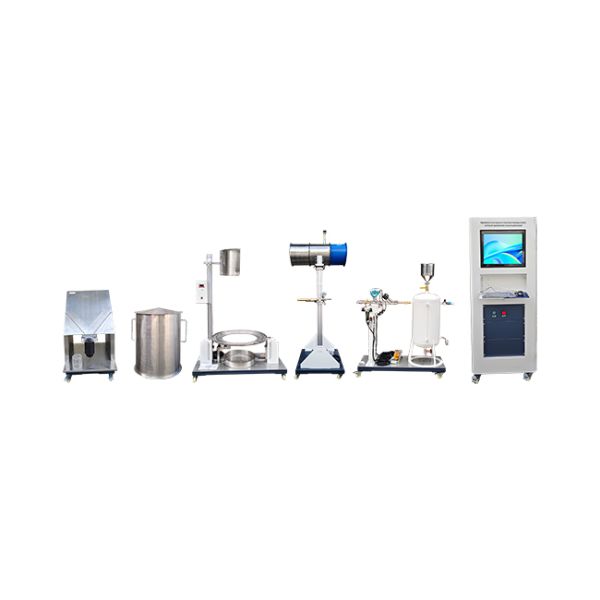

Standard compressed air foam system with high, medium, and low expansion foam collectors and foam separation tester.

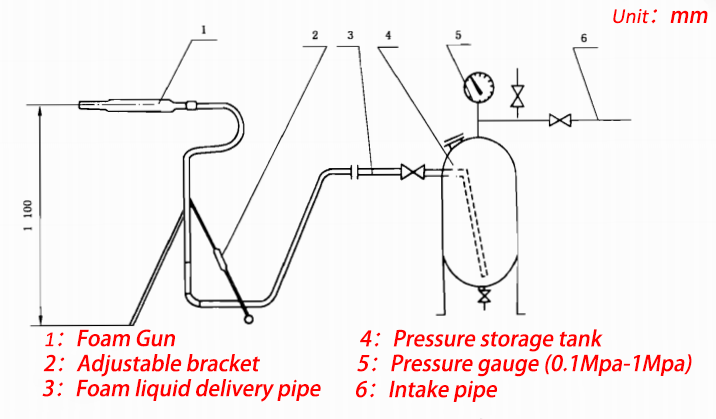

Low-Expansion Foam System

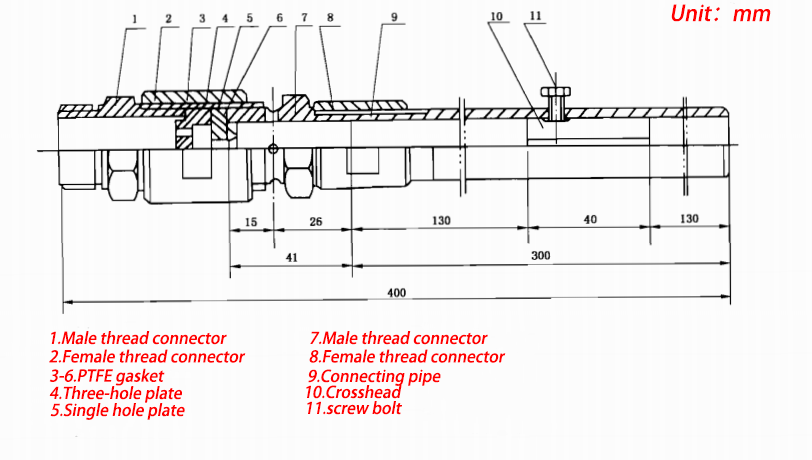

  • Standard foam gun: Water flow rate (11.4±0.4)L/min at (0.63±0.03)MPa

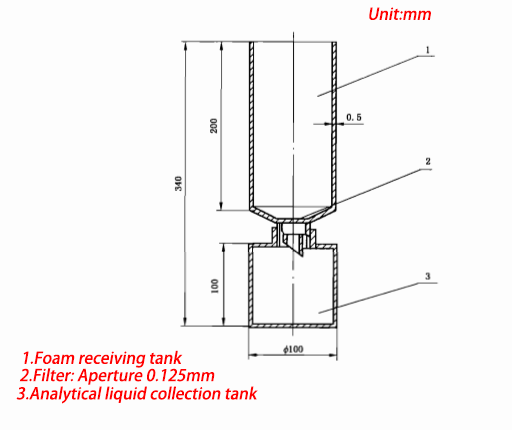

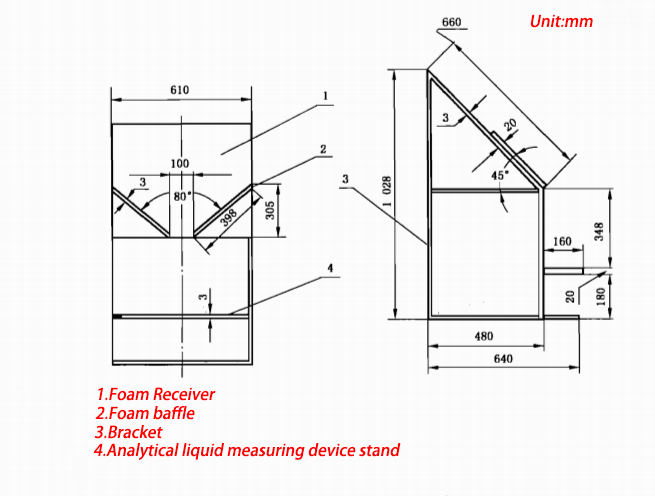

  • Stainless steel foam collector
  • Brass liquid analyzer with 1 mL accuracy
EN 1568 High,Medium,Low-expansion foam liquid foaming multiple and liquid separation time measuring instrument EN 1568 High,Medium,Low-expansion foam liquid foaming multiple and liquid separation time measuring instrument EN 1568 High,Medium,Low-expansion foam liquid foaming multiple and liquid separation time measuring instrument EN 1568 High,Medium,Low-expansion foam liquid foaming multiple and liquid separation time measuring instrument EN 1568 High,Medium,Low-expansion foam liquid foaming multiple and liquid separation time measuring instrument
Medium-Expansion Foam System

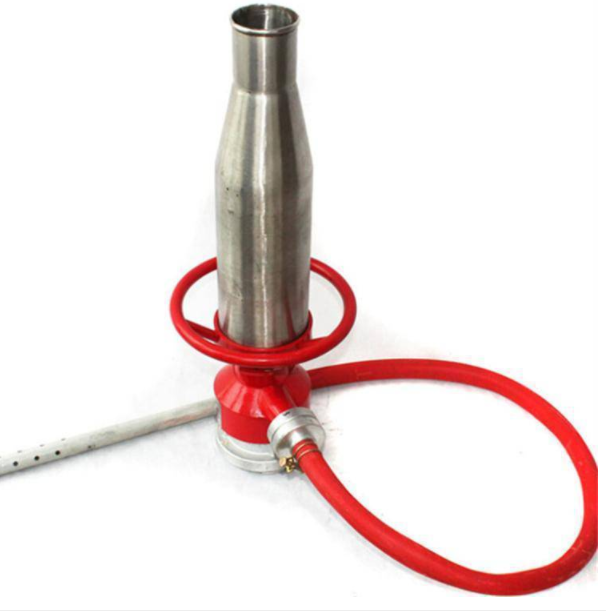

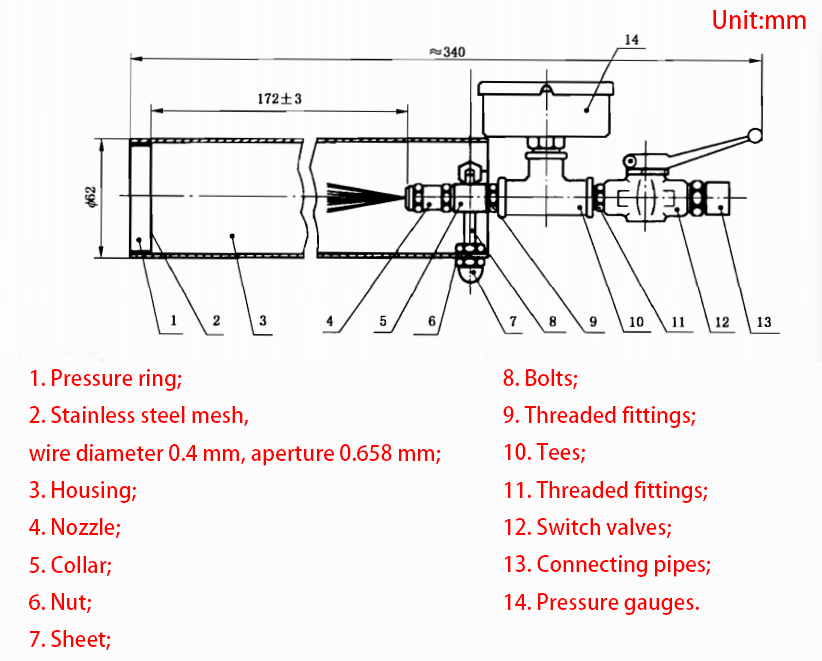

  • Foam generator: Water flow rate (3.25±0.15) L/min at (0.5±0.01) MPa

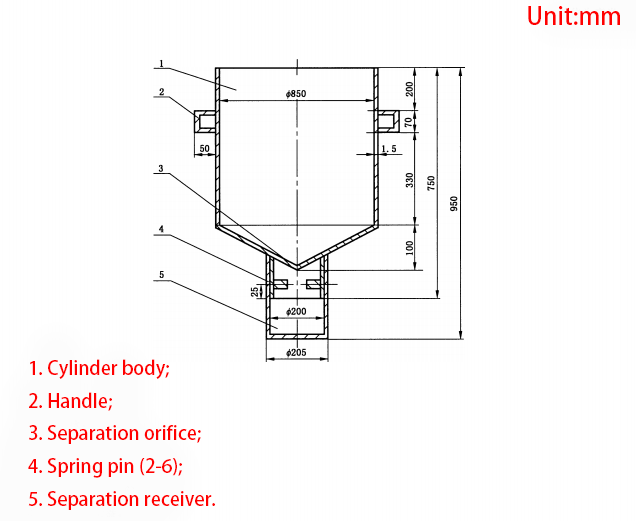

  • 200L stainless steel foam collector (±2L accuracy)
  • 10mL graduated cylinder
  • 1℃ graduation thermometer
  • 0.1s graduation stopwatch
  • 0.01kg accuracy platform scale
EN 1568 High,Medium,Low-expansion foam liquid foaming multiple and liquid separation time measuring instrument EN 1568 High,Medium,Low-expansion foam liquid foaming multiple and liquid separation time measuring instrument
High-Expansion Foam System

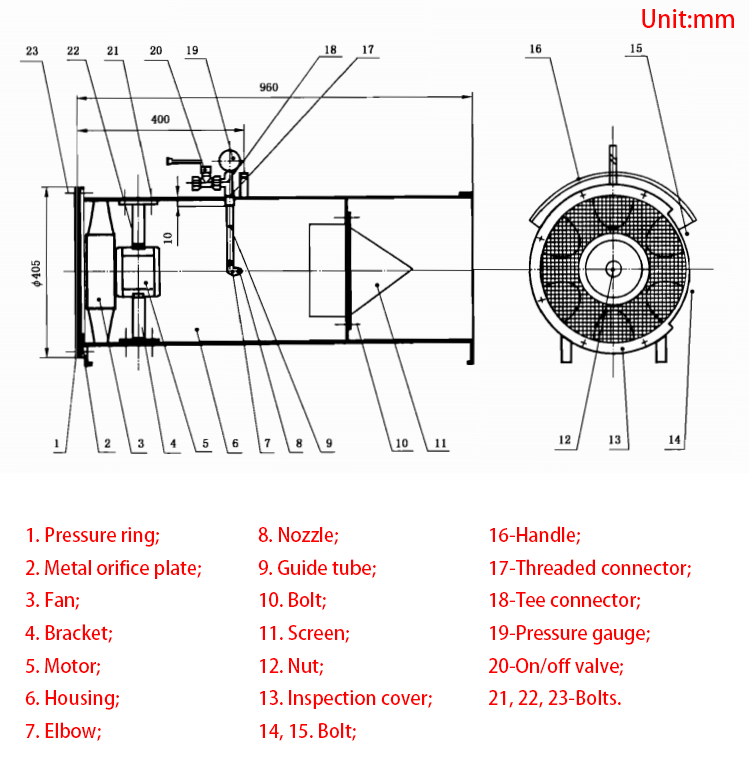

  • Foam generator: Water flow rate (6.1±0.1) L/min at (0.5±0.01) MPa

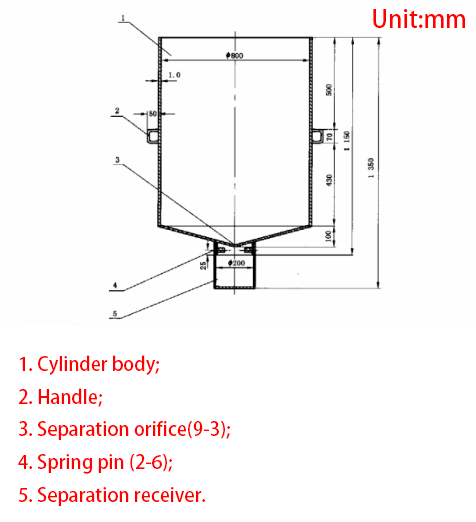

  • 500L stainless steel foam collector (±5L accuracy)
  • 10mL graduated cylinder
  • 1℃ graduation thermometer
  • 0.1s graduation stopwatch
  • 0.01kg accuracy platform scale
EN 1568 High,Medium,Low-expansion foam liquid foaming multiple and liquid separation time measuring instrument EN 1568 High,Medium,Low-expansion foam liquid foaming multiple and liquid separation time measuring instrument
Accessories
  • Air compressor: 0.8MPa, 30L/min flow rate
  • Thermometer: 1℃ graduation mercury thermometer
  • Measuring cylinder: 500mL, 10mL graduation
  • Balance: 1000g/0.1g
  • Stopwatch: 0.1s graduation
Measurement Environment Requirements
  • Ambient temperature: 15-25℃
  • Foam temperature: 15-20℃
