Specifications
Brand Name :
GOLD
Model Number :
GD-IEC 60811
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD2000-2500/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
5 set/per months
Delivery Time :
30 days
Packaging Details :
Exported standard packaging
Product :
Wires and Cables Natural Air Exchange Aging Test Chamber
Standard :
IEC 60811
Power Supply :
AC 220V 50/60HZ
Size :
950×750×1400mm
Materal :
SUS#304 Stainless Steel
Temperature Rang :
RT ~ 300℃
Ventilation Volume :
8～20
Temperature Uniformity: :
±2℃
Description

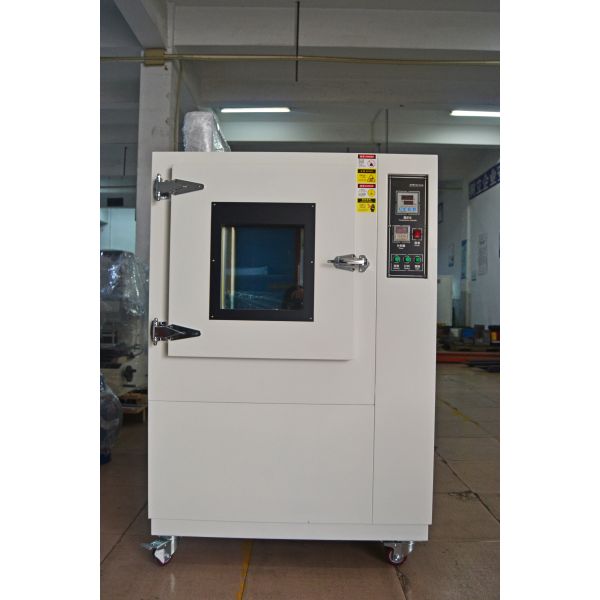

IEC 60811 Natural Air Exchange Aging Test Chamber



IEC 60811 Natural Air Exchange Aging Test Chamber Introduction:


Natural ventilation aging test equipment is mainly used for aging tests of polymer materials (plastic insulators or coatings for wires and cables) and heat resistance tests of electrical insulation materials and insulating components. It can also be used as a high-precision constant temperature drying oven for drying, baking, and heat treatment of items. However, it is not suitable for drying and testing flammable, explosive, or volatile materials that produce flammable or explosive substances. It is a commonly used testing equipment in industrial and mining enterprises, research institutions, universities, laboratories, and other departments.


IEC 60811 Natural Air Exchange Aging Test Chamber standard:


• IEC 60811-1-2

• IEC 60811-401

• VDE 0472

• GB/T 2951-2008


IEC 60811 Natural Air Exchange Aging Test Chamber Parameters:


External dimensions Approximately 950mm × 750mm × 1400mm
Power supply AC220V, 50/60HZ, 3KW


IEC 60811 Wires and Cables Natural Air Exchange Aging Test Chamber

IEC 60811 Natural Air Exchange Aging Test Chamber Feature:


● Temperature Range: Room temperature (approx. 25℃)～300℃;

● Temperature Fluctuation: ≤±0.5℃;

● Temperature Deviation: ≤±2℃;

● Heating Time: From room temperature to 300℃, approximately 50 minutes;

● Air Exchange Rate: 8～20 times/hour;

● Inner Chamber Dimensions: 450mm×450mm×500mm;

● Inner Chamber Material: SUS#304 stainless steel; Outer Chamber: Anti-static powder coating (white);

● Insulation Material: 100mm thick fiberglass wool filling on five sides, 60mm thick fiberglass wool filling at the bottom.


IEC 60811 Wires and Cables Natural Air Exchange Aging Test Chamber
