Specifications
Standard :
IEC 60529
Test water :
Use purified water; do not use unfiltered tap water.
Test power-on conditions :
24v DC，220v AC
Power supply :
AC380V three-phase (must be connected to protective ground)
Environmental conditions :
Temperature: +5℃～35℃; Relative Humidity: ≤85%; Atmospheric Pressure: 86kPa～106kPa
Brand Name :
Gold
Model Number :
GD-IPX56
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
7000 usd
Payment Terms :
D/P,T/T,D/A,L/C,MoneyGram
Supply Ability :
1 per 25 work days
Delivery Time :
25 work days
Packaging Details :
plywood box
Name :
IPX56 Waterproof test under power-on conditions Chamber for outdoor LED
Description

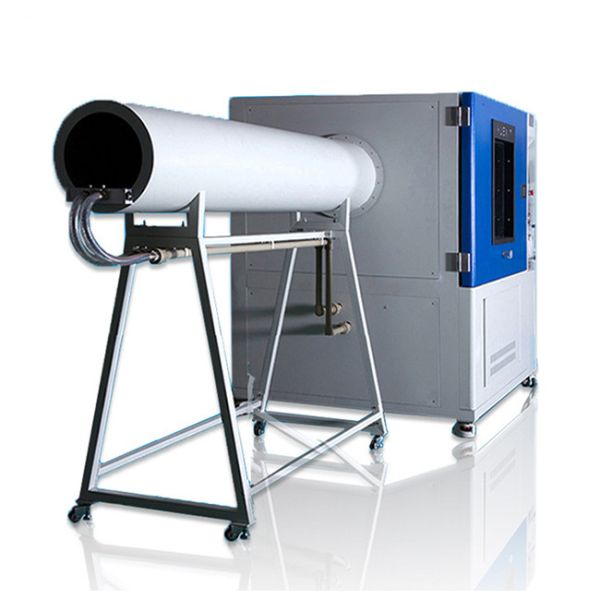

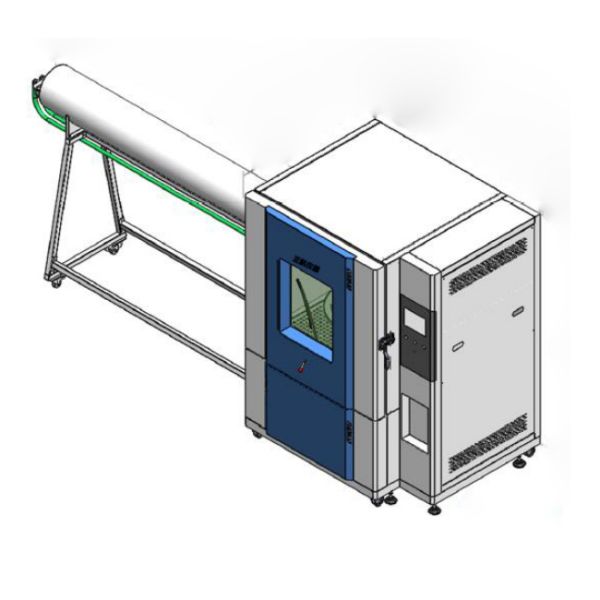

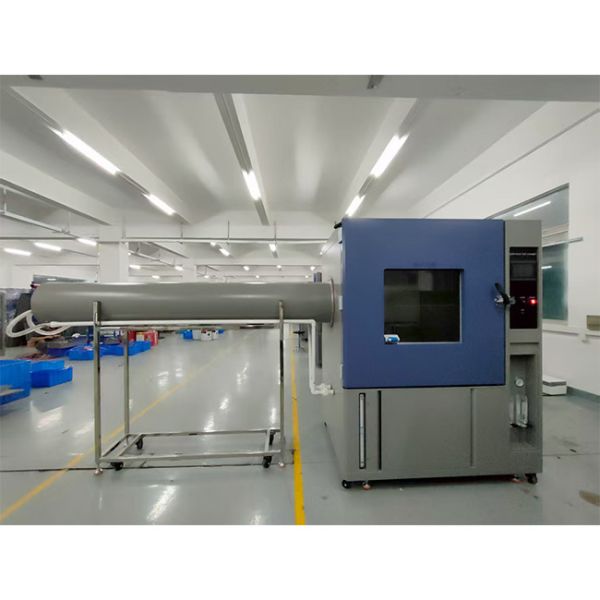

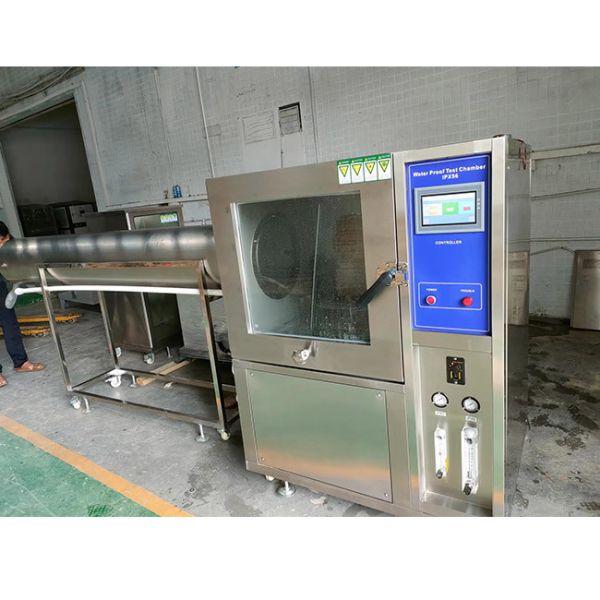

IEC 60529 IPX56 Waterproof Test Under Power-On Conditions Chamber for Outdoor LED
Waterproof test under power-on conditions Chamber
Product Overview

This chamber is designed for waterproof performance testing and IP waterproof rating evaluation of various products including communication equipment, automotive components (rearview mirrors, audio systems, electronics, lighting), outdoor lighting and signaling devices, and more.

Compliance Standards
  • IEC 60529:2013 / GB/T 4208-2017
  • ISO 20653:2013 (Automotive Components)
  • GB 7000.1 (Waterproofing Requirements for Luminaires)
  • UL 50E, MIL-STD-810, and other related requirements
IEC 60529 IPX56 Waterproof test under power-on conditions Chamber for outdoor LED
Applications
  • Outdoor LED streetlights, tunnel lights, and light boxes
  • Electric vehicle charging station housings and charging guns
  • fire/customs communication equipment
  • Outdoor smart doorbells and video intercoms
  • Marine signal lights and searchlights
  • 5G outdoor small base stations and antenna covers
  • Portable medical devices for outdoor emergency use
  • Outdoor speaker systems
  • Smart meter boxes and outdoor distribution boxes
  • Electric scooter/bicycle controller housings
  • Outdoor surveillance camera systems
  • Port crane and trestle control panels
Technical Specifications
Inner Box Dimensions W1000 × H1000 × D1000mm
Outer Box Dimensions W3950 × H1850 × D1250mm (Subject to actual product)

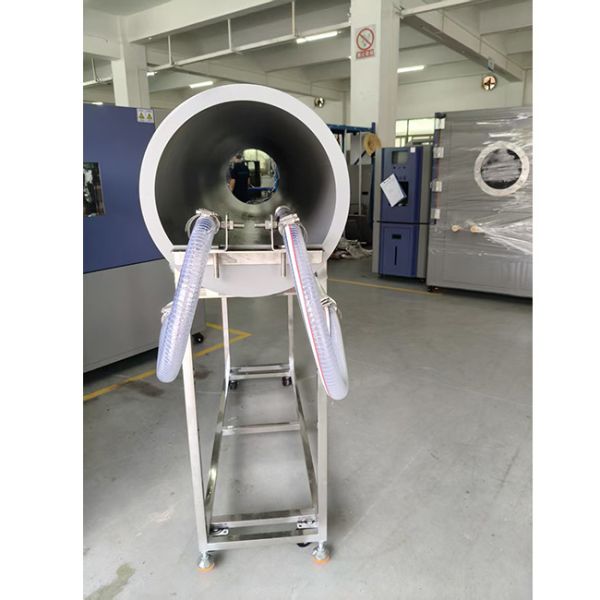

IP56 Spray Nozzle Included
Nozzle Diameter IPX5: 3mm, IPX6: 12.5mm
Sample Placement Rack Included

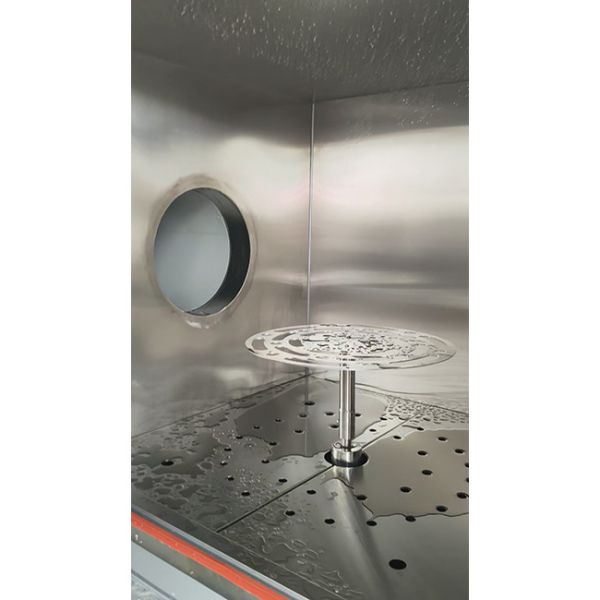

Turntable Rotation Speed 1-9RPM (Adjustable)
Turntable Diameter 500mm
IPX5 Water Flow Rate 12.5L±0.625L/min
IPX6 Water Flow Rate 100L±5L/min
Spray Pressure 50kpa~100kpa
Spray Distance 2.5~3 meters
