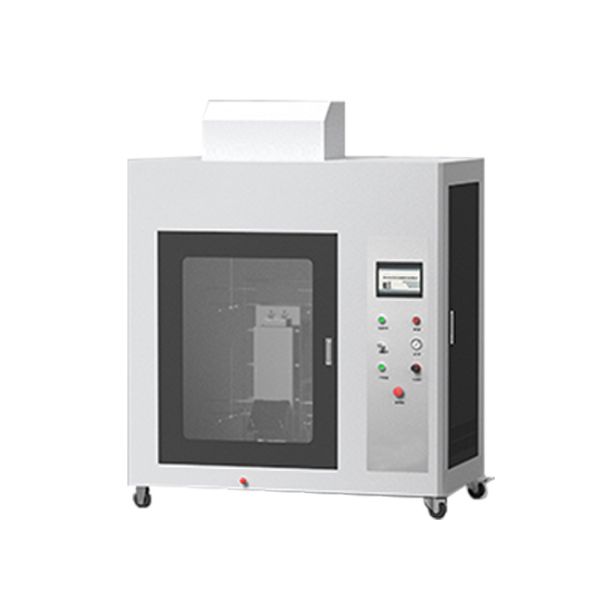

DIN EN 71-2 Toy Flammability Tester

Product introduce

The DIN EN 71-2 Toys Flammability Tester is a professional precision testing device for evaluating the flammability of toys. It strictly complies with the testing requirements of EN 71-2 (EU Toy Safety Standard Part 2: Flammability) and DIN EN 71-2 (the German version). It simulates a small flame ignition source to perform vertical, 45°, or edge ignition tests on toy materials, accurately measuring the flame propagation speed, burning time, and extinguishing characteristics to determine if the toy poses a potential fire hazard.

This tester is widely used for testing the flammability of high-risk toys such as plush toys, headwear, costumes, soft-filled toys, and children's play tents. It helps manufacturers, quality inspection agencies, and laboratories ensure that products comply with EU, Chinese GB 6675, and international ISO 8124 toy safety regulations. The equipment features adjustable clamps, a precise flame control system, and PLC touchscreen operation, making it convenient, safe, and reliable. It is an essential compliance testing tool for toys exported to the EU and global markets.

Standard

EN 71-2:2020

Safety of toys — Part 2: Flammability

ISO 8124-2:2014

Safety of toys — Part 2: Flammability

GB 6675.3-2014 / GB 6675.4-2014

Toy Safety — Part 3: Mechanical and Physical Properties / Part 4: Flammability

Test product range

Plush toys/cloth toys (plush dolls, rag dolls, cloth books, etc.)

Toys made of textiles or similar materials (cloth toys, rag costumes, soft toys)

Wearable toys and costumes for children (masquerade clothes, princess dresses, superhero capes, Santa Claus costumes, etc.)

Hair/wig toys (doll wigs, role-playing wigs, long-haired toy animals)

Additional decorations such as beards, eyebrows, and eyelashes (fake beards and false eyelashes on masks)

Grass skirts, tassels, and paper decorations (Hawaiian grass skirts, Christmas ribbon toys)

Soft/foam toys (sponge swords, sponge balls, foam guns, and other flammable foam materials)

Toys containing loose fibers (toys with cotton or stuffing exposed on the surface)

Children's tents, tunnels, and playhouses (children's play tents made of textiles)

Technical parameters

1. All sample holders are made of stainless steel; aesthetically pleasing and corrosion-resistant.

2. Imported standard burner; flame height adjustable from 0 to 60 mm; nozzle diameter 0.19 mm.

3. Automatic time recording and storage; timer accuracy 0.1 s.

4. Electronic automatic ignition; automatic extinguishing.

5. Ignition time can be set arbitrarily from 0 to 99.99 seconds; afterflame time and flame retardant time are automatically recorded and digitally displayed.

6. PLC. Equipped with a touchscreen control system, enabling more intelligent testing; automatic recording and storage of test data;

7. Imported brand pressure gauges and regulating valves ensure more stable gas pressure;

8. Imported needle valves precisely control flame height; resulting in a more stable flame;

9. High degree of intelligence, simple and easy operation;

10. Equipped with sample holders for different experiments; all made of stainless steel; equipped with a flame height gauge;

11. Burner angle is vertical and adjustable by 45°;

12. Programmable controller with a 7" touchscreen for control/detection/calculation/data display;

13. No need for a handheld stopwatch or manual timing; the system automatically records test time and generates an experimental report;

14. Test time and ignition time can be set on the touchscreen, meeting various testing standards.
