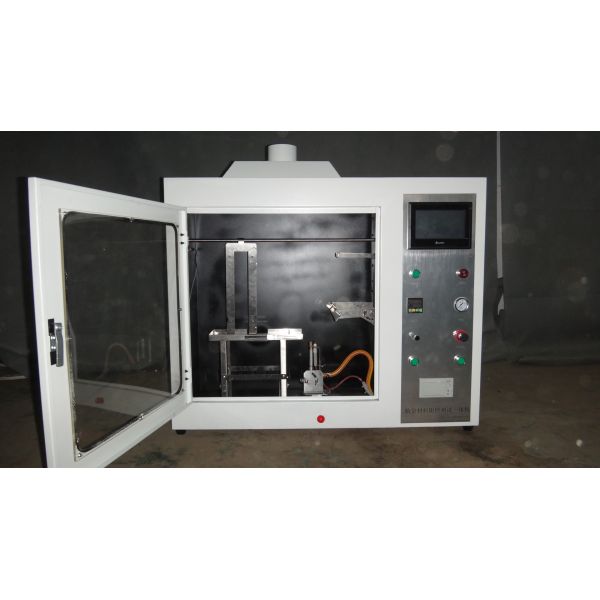

FAA FAR 25.853 Aircraft Component Combustion Tester CCAR-25
FAA FAR 25.853 Aircraft Component Combustion Tester CCAR-25
FAA FAR 25.853 Aircraft Component Combustion Tester CCAR-25
FAA FAR 25.853 Aircraft Component Combustion Tester CCAR-25
FAA FAR 25.853 Aircraft Component Combustion Tester CCAR-25
FAA FAR 25.853 Aircraft Component Combustion Tester CCAR-25
FAA FAR 25.853 Aircraft Component Combustion Tester CCAR-25
FAA FAR 25.853 Aircraft Component Combustion Tester CCAR-25
Specifications
Brand Name :
GOLD
Model Number :
GD-CCAR-25
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD3100-3400/set
Payment Terms :
L/C,T/T,,MoneyGram
Supply Ability :
5 set/per months
Delivery Time :
30 days
Packaging Details :
Exported standard packaging
Product :
Aircraft Component Combustion Tester
Standard :
Ccar-25 Faa.Far.25. Hb 5469
The Flame Height Measuring Device :
Flame Height Ruler Is About 38.1mm
Accuracy :
± 0.01 Seconds
Test Chamber Size :
305mm (Length) X 305mm (Width) X 610mm (Height)
Power Supply :
AC220V, 50Hz, 50W
Ignition Timing :
0 to 99.99 Seconds Set Arbitrarily
Test Program :
Equipped With Four Types Of Combustion Test Sample Holders: Horizontal, Vertical, 45°, And 60°
Description
FAA FAR 25.853 Aircraft Component Combustion Tester CCAR-25
Product Overview

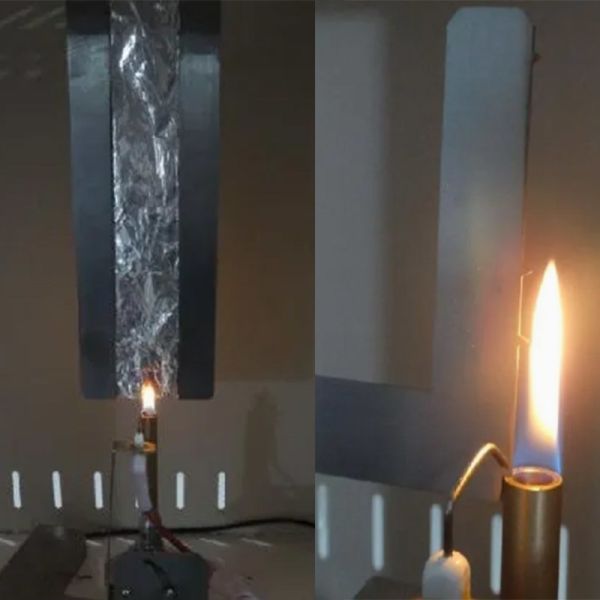

This FAA FAR 25.853 Aircraft Component Combustion Tester is designed to meet aviation standards CCAR-25 Appendix F requirements for testing aircraft component flammability. The equipment integrates multiple testing protocols including vertical combustion, 45° and 60° angle combustion tests.
Compliance Standards
• CCAR-25 Appendix F Part B (4, 6, 7)
• FAA FAR 25.853 - Transport Aircraft Cabin Interior Standards
• GB/T 5455 Vertical Flame Test
• HB 5469
Technical Specifications
Parameter Specification
Product Name FAR Bunsen Burner Test Apparatus
Ignition Timing 0 to 99.99 seconds (adjustable)
Flame Time Recording 0-99.99 seconds, accuracy ±0.01 seconds
Flame Height Measurement Approximately 38.1mm
Gas Type Methane, propane, butane or LPG
Power Supply AC220V, 50Hz, 50W
Weight Approximately 70kg

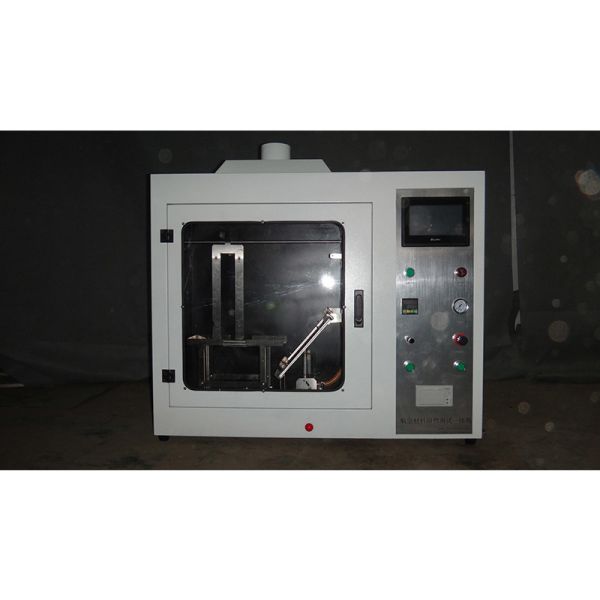

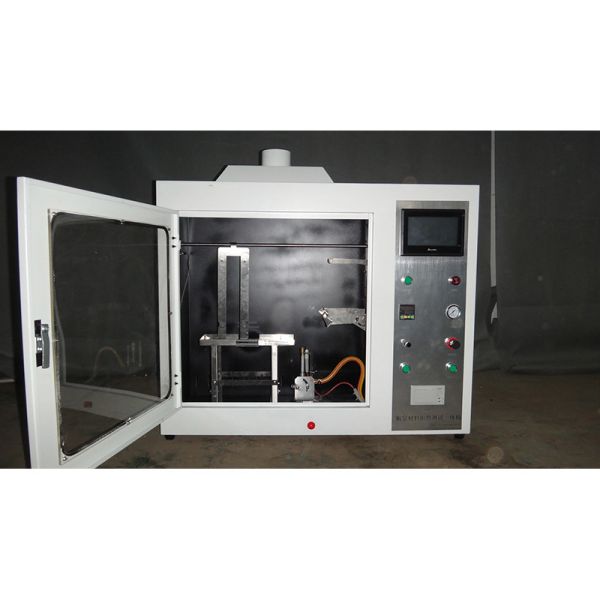

Product Images
FAA FAR 25.853 Aircraft Component Combustion Tester CCAR-25 FAA FAR 25.853 Aircraft Component Combustion Tester CCAR-25 FAA FAR 25.853 Aircraft Component Combustion Tester CCAR-25
Key Features

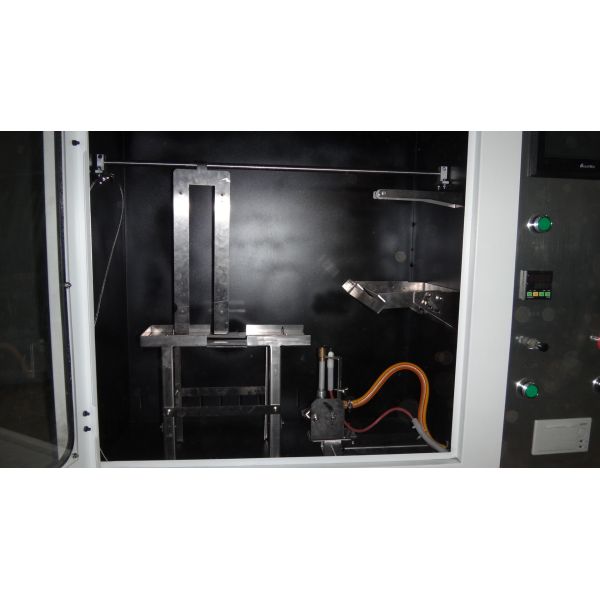

  • Powder-coated chamber with viewing window for clear observation
  • Chamber dimensions: 720mm * 450mm * 800mm
  • Automatic electronic ignition system
  • Adjustable ignition timing with digital display
  • Precise flame height adjustment capability

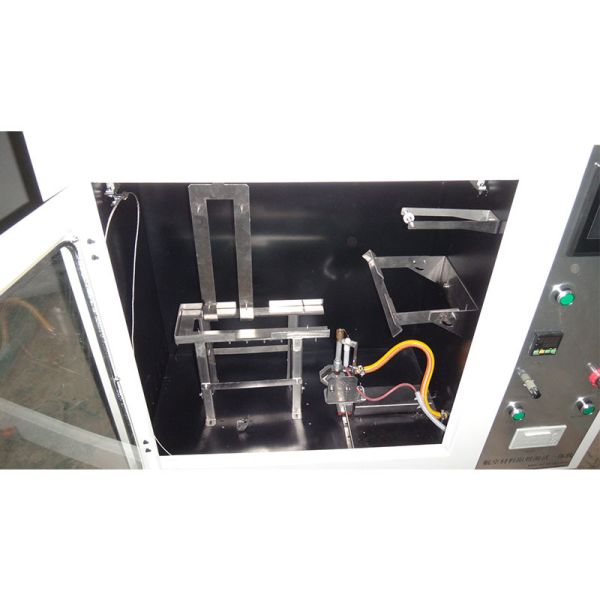

  • Push-pull fixture mechanism for easy sample handling
  • Sliding track burner positioning with automatic timing activation
  • Pin valve for precise gas flow control and standard flame height adjustment
  • Multiple customizable sample holders for various test requirements
  • Brand pressure gauge and regulator for accurate gas pressure control
  • Bunsen burner tube inner diameter: 9.5mm
  • Thermocouple measures flame temperatures up to 1000°C
  • Audible buzzer alerts when test timing completes
  • PLC microcomputer control system with touch screen for automated testing and data recording
