NF P92-505 EU95/28EC Melting Material Dripping Testing Machine
NF P92-505 EU95/28EC Melting Material Dripping Testing Machine
NF P92-505 EU95/28EC Melting Material Dripping Testing Machine
NF P92-505 EU95/28EC Melting Material Dripping Testing Machine
NF P92-505 EU95/28EC Melting Material Dripping Testing Machine
NF P92-505 EU95/28EC Melting Material Dripping Testing Machine
NF P92-505 EU95/28EC Melting Material Dripping Testing Machine
NF P92-505 EU95/28EC Melting Material Dripping Testing Machine
Specifications
Brand Name :
GOLD
Model Number :
GD-ASTM D6413
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD3700-4000/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
5sets per month
Delivery Time :
30 days
Packaging Details :
Exported standard packaging
Product :
Melting Material Dripping Testing Machine
Standard :
NF P92-505,EU 95/28/EC,ECE R118 Annex 7
The Radiation Heat of The RadiatorInlet Gas Pressure :
30kw/M2, up to 100kw/M2
The Heat RadiationTime :
Reacht to 3w / cm³
Specimen Holder Inner DiameterSystem :
118mm
Maximum HeightBurning Torch :
680mm
Radiation Shield DiameterApplication :
100mm±5mm
Power :
220V,50Hz
Description

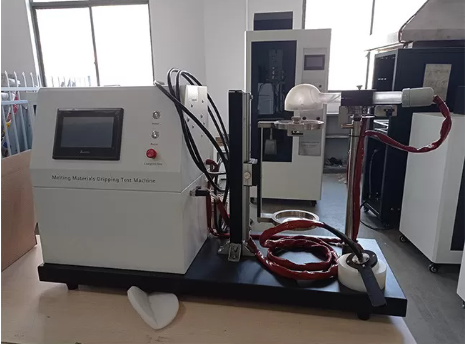

NF P92-505 EU95/28EC Melting Material Dripping Testing Machine



NF P92-505 Melting Material Dripping Testing Machine Introduction:


This thermal radiation molten drip tester meets the technical specifications and requirements specified in international standards NF P92-505, EU 95/28/EC, and ECE R118 Annex 7. According to NF P 92-505, this test is an additional test for Class M building materials. It is suitable for testing the molten dripping and combustion performance of hot-melt materials under the action of a primary heat source. It can test flexible and thin materials, such as cellulose in thermal insulation wadding.


NF P92-505 Melting Material Dripping Testing Machine standard:


NF P92-505
EU 95/28/EC
ECE R118 Annex 7


NF P92-505 Melting Material Dripping Testing Machine Specification:


Name
Thermal Radiation Dripping Test Apparatus
Power supply
220V, 50Hz
Base size
425×300mm
Maximum height of the instrument
680mm
Weight
13kg

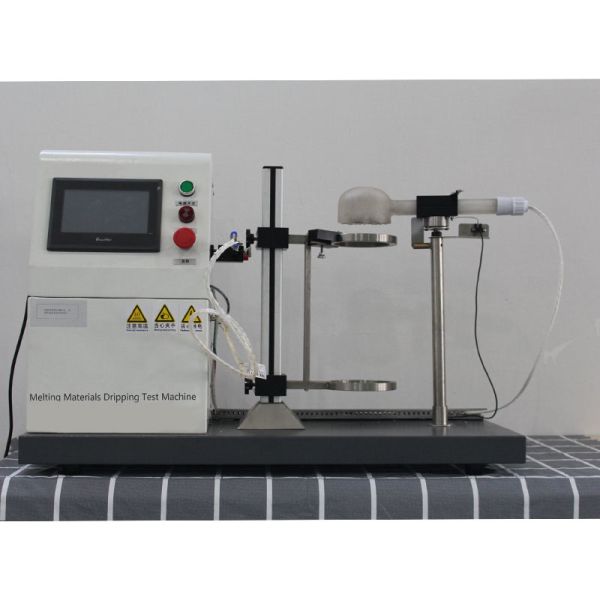

NF P92-505 EU95/28EC Melting Material Dripping Testing Machine


NF P92-505 Melting Material Dripping Testing Machine Feature:


1. All tooling is made of stainless steel, which is aesthetically pleasing and corrosion-resistant.

2. The radiation support is rotatable, with a rotation angle greater than 90 degrees, facilitating sample installation.

3. The sample installation height is adjustable.

4. Electric radiator.

5. The radiant heat output is linearly adjustable; the radiant heat is automatically adjusted via power control.

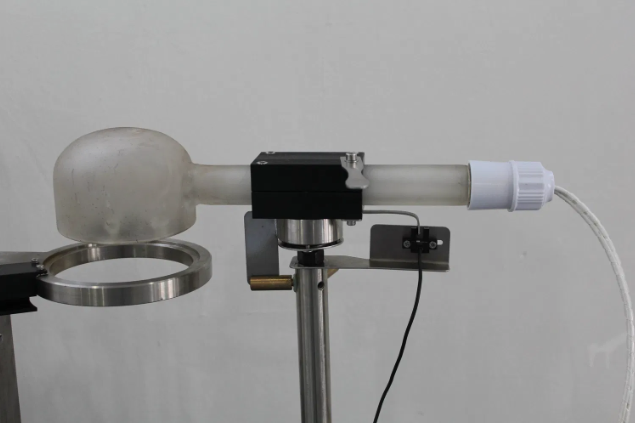

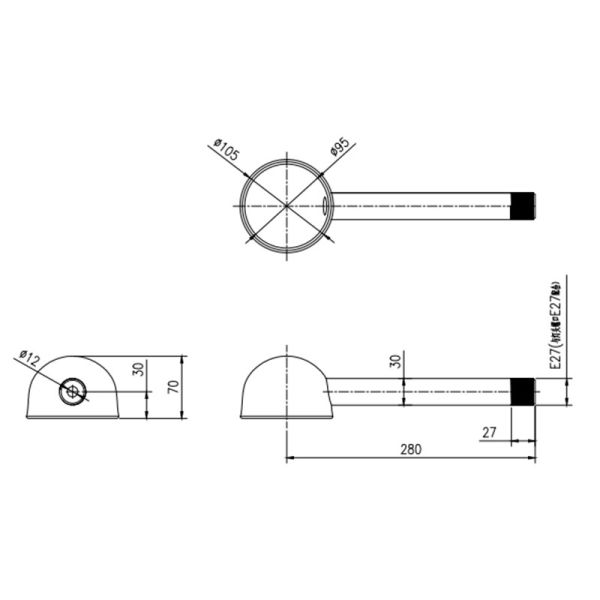

6. The radiation hood is made of quartz glass with an opening diameter of 100mm ± 5mm.

7. The thermal radiation at a distance of 30mm from the lower surface of the radiation hood is 3W/cm³.

8. The sample holder is made of a stainless steel ring with an inner diameter of 118mm.

9. The receiving tray has an inner diameter of 118mm and a depth of 12mm, and is stuffed with cotton.

10. Automatic timing reminder for sample ignition.

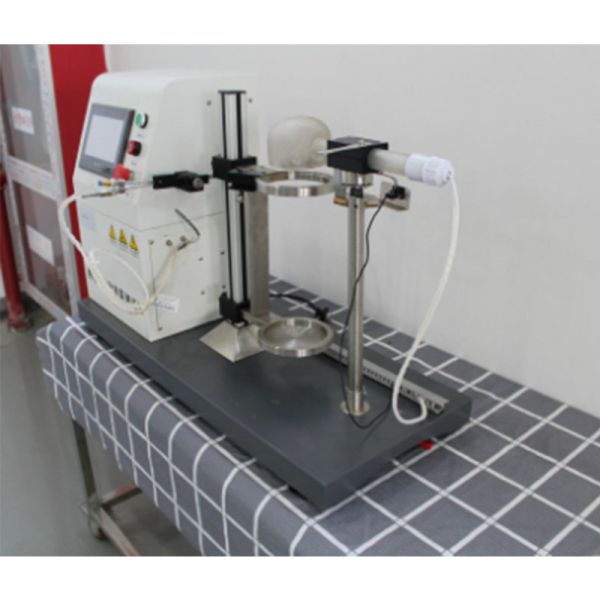

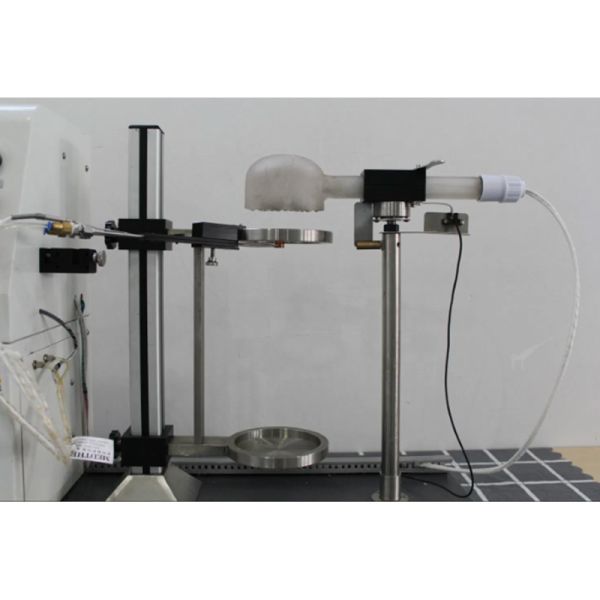

NF P92-505 EU95/28EC Melting Material Dripping Testing Machine
