Specifications
Brand Name :
GOLD
Model Number :
GD-ASTM C1113
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD5000-6500/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
5sets per month
Delivery Time :
30 days
Packaging Details :
Exported standard packaging
Product :
ASTM C1113 ASTM D5930 Thermal Conductivity Tester
Standard :
ASTM C1113,ASTM D5930,GB/T 10297,GB/T 11205
Temperature Range :
-30~100 °C
Acquisition Time :
1~20 s
Working Environment :
0~40 °C, ≤ 65% RH
Voltage :
220V Electrical Equipment
Application :
Auto Testing, Laboratory Testing, Lab Testing
Control :
Computer Control
Description

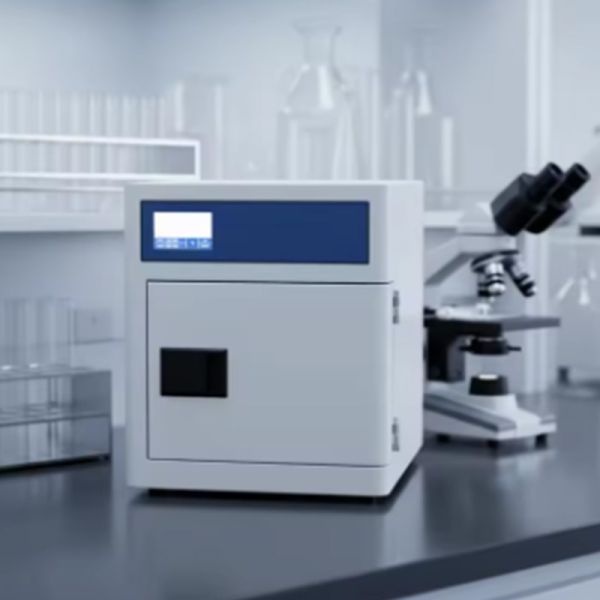

Low Temperature General Purpose Thermal Conductivity Meter
Compliant with ASTM C1113 and ASTM D5930 standards, this advanced thermal conductivity meter offers precise measurements across a wide temperature range with exceptional accuracy and efficiency.
Product Overview
This universal thermal conductivity meter operates within a temperature range of -30 to 100°C and features an automated control system that supports automatic measurement at multiple temperature points. The instrument delivers high testing accuracy, rapid measurement speeds, precise temperature control, minimal sample requirements, and user-friendly operation.
Compatible Standards
  • ASTM C1113
  • ASTM D5930
  • GB/T 10297
  • GB/T 11205
Technical Specifications
Measurement Principle Transient hot-wire method
Temperature Range -30~100 °C
Measurement Accuracy ± 3%
Measurement Range 0.001~50.0 W/(m*K) (extended to 100 W/(m*K))
Resolution 0.0005 W/(m*K)
Acquisition Time 1~20 s
Sample Size Side length > 25mm (thickness requirement related to sample type); Colloid/Paste ≥ 50mL
Sample Shape Blocks, Flakes, Pastes, Powders, Granules, Colloids
Data Transmission USB
Operating System Windows
Working Environment 0~40 °C, ≤ 65% RH
Reference Standard ASTM C1113, ASTM D5930, GB/T 10297, GB/T 11205
Key Features
  • Wide measurement range: -30~100°C (optional -30~200°C), simultaneously meeting high and low temperature testing requirements
  • High degree of automation: Features automatic measurement and automatic multiple data acquisition
  • Fast testing speed: Measurement results obtained within minutes after sample temperature stabilization
  • Flexible sample requirements: No specific shape or size required
  • Direct measurement method: Directly obtains thermal conductivity without needing additional physical property data
  • Wide applicability: Compatible with block, flake, powder, paste, and colloid sample forms
Typical Applications
  • Synthetic materials: Ceramics, rubber, additives, fabrics, glass, paper, pharmaceuticals
  • Composite materials: Plastics, substrate materials, thermoelectric materials, phase change materials, insulation materials
  • Natural materials: Wood, food, grains, soil, rocks
  • Colloidal materials: Adhesives, greases, gels, jellies, thermally conductive adhesives, cosmetics, viscous solvents
