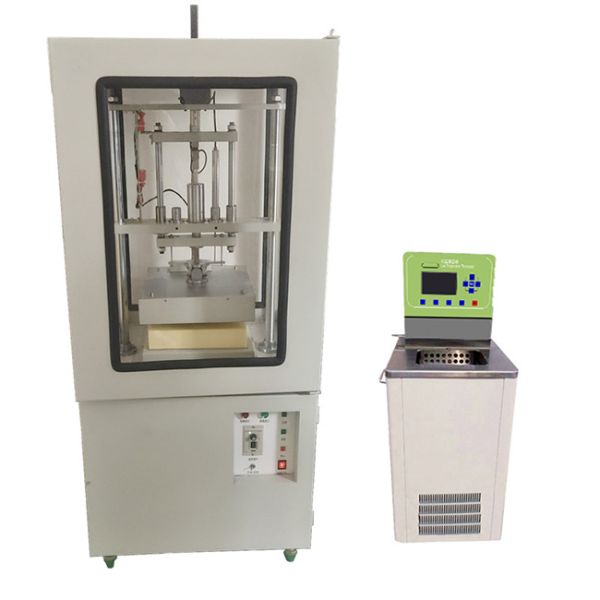

ASTM C518 ISO 8301 Thermal Conductivity Tester Heat Flow Meter for Insulation Materials Testing
ASTM C518 ISO 8301 Thermal Conductivity Tester Heat Flow Meter for Insulation Materials Testing
ASTM C518 ISO 8301 Thermal Conductivity Tester Heat Flow Meter for Insulation Materials Testing
ASTM C518 ISO 8301 Thermal Conductivity Tester Heat Flow Meter for Insulation Materials Testing
ASTM C518 ISO 8301 Thermal Conductivity Tester Heat Flow Meter for Insulation Materials Testing
ASTM C518 ISO 8301 Thermal Conductivity Tester Heat Flow Meter for Insulation Materials Testing
Specifications
Name :
Thermal Conductivity Tester
standard :
ASTM C518 ISO 8301
size :
700*700*1500
weight :
130KG
power supply :
220v
The flat plate heater Accuracy :
0.1℃
Brand Name :
Gold
Model Number :
GD-ASTMC518
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,
Supply Ability :
1 per 30 days
Delivery Time :
30 days
Packaging Details :
plywood box
Description
ASTM C518 ISO 8301 Thermal Conductivity Tester Heat Flow Meter for Insulation Materials Testing
Product Description
The ASTM C518 Thermal Conductivity Tester (also known as Heat Flow Meter Apparatus) is a professional steady-state thermal conductivity testing instrument that fully complies with international standards including ASTM C518, ISO 8301, EN 12667, and GB/T 10295.
ASTM C518 ISO 8301 Thermal Conductivity Tester Heat Flow Meter for Insulation Materials Testing
Compliance Standards
  • ASTM C518 - Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus
  • ISO 8301 - Thermal insulation - Determination of steady-state thermal resistance and related properties - Heat flow meter apparatus
  • EN 12667 - Thermal performance of building materials and products - Determination of thermal resistance by means of the heat flow meter method
Applications
The ASTM C518 tester measures steady-state thermal conductivity (including thermal conductivity k-value and thermal resistance R-value) of flat, homogeneous materials (typically 5-50 mm thick). Suitable for:
  • Insulation foam boards: XPS, EPS, PUR, PIR
  • Fiberboards and felts: fiberglass, rock wool, mineral wool
  • Rubber and plastic products: rubber mats, foam rubber boards
  • Building composite structures: sandwich panels, vacuum insulation panels
  • Ceramic and cement products: ceramic fiber boards, cement-based insulation
  • Textile and specialty materials: fabric laminates, aerogel boards
Key Features
  • High-precision programmable temperature control with 0.01℃ resolution
  • Constant temperature water tank control with less than 0.05℃ fluctuation
  • Protective measurement devices ensure test accuracy and repeatability
  • Automatic pressure application and thickness measurement functions
Technical Specifications
Parameter Specification
Thermal conductivity range 0.0010~3.0000 W/mK (4 decimal places)
Measurement accuracy ±3%
Sample size 300×300mm (custom sizes available)
Hot surface temperature Room temperature ~100℃ (standard), up to 300℃ available
Cold surface temperature 5~90℃ (water-cooled)
Pressure range 0-1000N (0.1N resolution)
Thickness measurement 0-50mm (0.001mm resolution)
