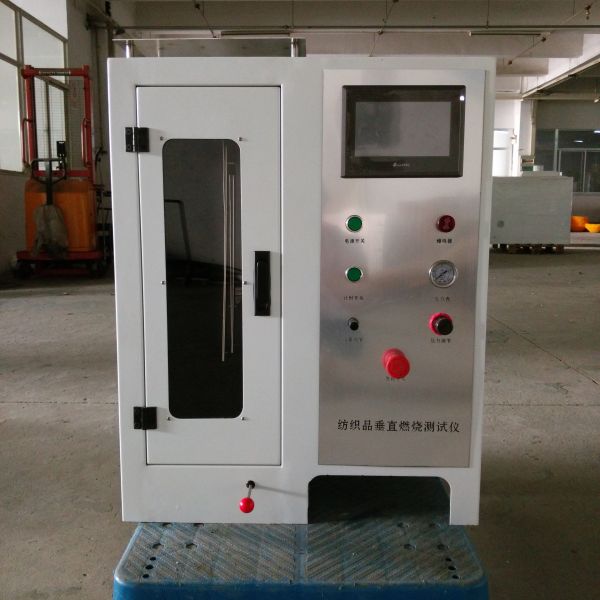

ASTM D6413 Vertical Flammability Tester for Textile Fire Test
ASTM D6413 Vertical Flammability Tester for Textile Fire Test
ASTM D6413 Vertical Flammability Tester for Textile Fire Test
ASTM D6413 Vertical Flammability Tester for Textile Fire Test
ASTM D6413 Vertical Flammability Tester for Textile Fire Test
ASTM D6413 Vertical Flammability Tester for Textile Fire Test
Specifications
Product :
Vertical Flammability Tester For Textile Fire Test
Standard :
ASTM D 6413, CPAI 84, GBT5455, ASTM F1358
Usage :
Textile flammability test
Gas :
99% propane gas; customer prepared
Timer :
0～999.9s, precision: 0.1s;
Igniter timing :
0 to 999.9 seconds arbitrary setting
Brand Name :
GOLD
Model Number :
GD-ASTMD6413
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 1500-3500
Payment Terms :
L/C,T/T,,MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
25 working days
Packaging Details :
Standard exported package
Description
Vertical Flammability Tester For Textile Fire Test ASTM D6413
The Textile Vertical Flammability Tester is engineered in compliance with ASTM D6413 and CPAI-84 standards to evaluate the vertical fire resistance properties of textile materials with precision and reliability.
Key Features
  • Transparent observation window with top-mounted steady air cover for clear visibility
  • Combustion chamber dimensions: 330mm x 330mm x 762mm (L x W x H)
  • Electronic automatic ignition system with programmable timing
  • Ignition time range: 0-99.9 seconds with automatic recording of continuous ignition and flame-retardant duration
  • Adjustable flame height control for precise testing conditions
  • Push-pull specimen fixing mechanism for secure positioning
  • Burner mounted on sliding track with automatic timing activation
  • Precision needle valve for accurate gas flow and flame height regulation
  • Multiple sample holder options for diverse testing requirements
  • Imported pressure gauge and pressure regulating valve system
  • High-quality Bunsen burner with 10mm inner diameter lamp tube
  • Standard flame tongues: 19mm and 38mm height options
ASTM D6413 Vertical Flammability Tester for Textile Fire Test
Compliance Standards
  • ASTM D6413-2011: Test Method for Fire Resistance of Textiles (Vertical Test)
  • CPAI 84: Flame Retardancy Test for Tents
  • GBT 5455-2014: Textiles - Tests for Flame Resistance - Vertical Method (Reference)
  • ASTM F1358-2016: Standard Test Method for Fire Effects of Protective Clothing Materials
Technical Specifications
Parameter Specification
Test Clip Size 16.63 inch x 3.0 inch
Sample Exposure Size 14 inch x 2 inch
Igniter Timing Range 0 to 999.9 seconds, programmable
Timer Precision 0.1 seconds
Flame Height Measurement 19mm and 38mm standard options
Gas Requirement 99% propane gas (customer supplied)
Power Supply AC220V, 50Hz, 50W
Unit Weight Approximately 20 kg
About Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
With over 15 years of specialized expertise, we are a leading manufacturer and supplier of high-precision flammability testing instruments. Our commitment to advancing fire safety has established us as trusted partners for laboratories, quality control institutions, research centers, and manufacturers worldwide.
Deep Industry Expertise: Our extensive experience provides profound insight into international test standards including ISO, ASTM, IEC, and GB. We deliver comprehensive testing solutions tailored to specific client challenges.
Advanced R&D and Innovation: Our in-house engineering team drives continuous product development using high-quality components and precision manufacturing to ensure accurate, repeatable, and globally credible test results. Our portfolio spans from fundamental flame tests to large-scale fire resistance evaluators.
