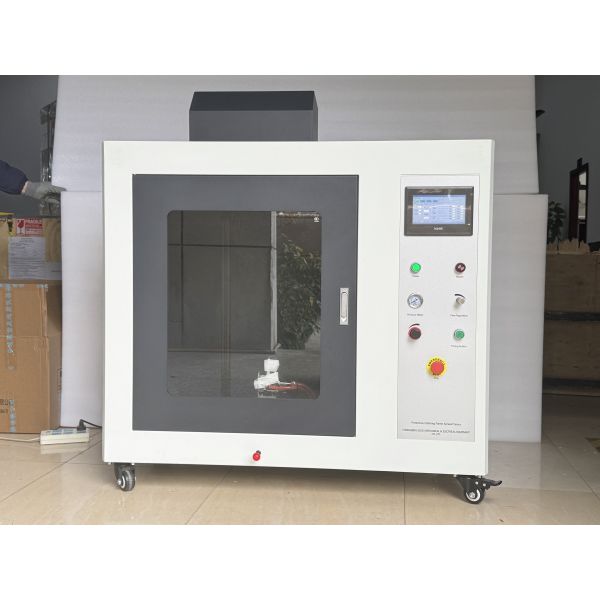

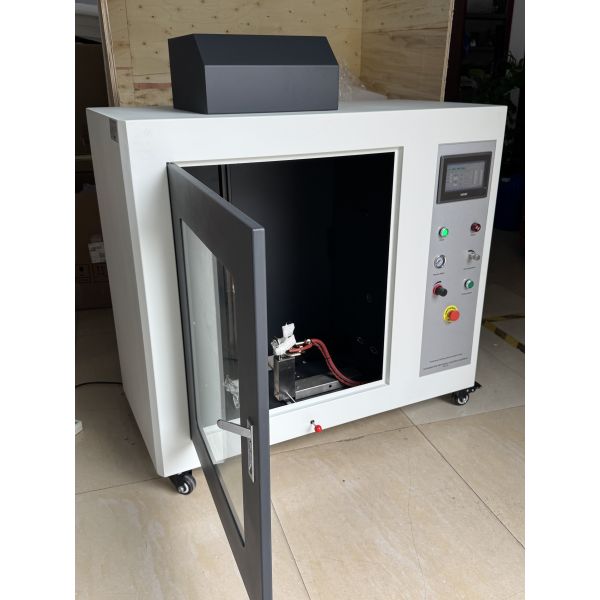

Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
Specifications
Brand Name :
GOLD
Model Number :
GD-ISO 15025
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1set
Price :
USD 2900-3105/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
5 Set per 30 days
Delivery Time :
30days
Packaging Details :
Standard Wooden Case
Name :
Protective Clothing Flame Test Machine
Standard :
BS EN ISO 15025
Specification :
580× 580× 650mm
Horizontal Flame Height :
25mm ± 2mm
Power Source :
220V,50/60Hz
Burner Angle :
Adjustable to Horizontal, Vertical & 30 °
Vertical Flame Height :
40mm ± 2mm
Nozzle Orifice :
0.19mm
Description
Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
The Protective Clothing Burning Flame Spread Tester evaluates flame spread performance according to ISO 15025 standards. This specialized equipment simulates ignition risks to assess how protective clothing and fabric materials resist flame propagation under controlled laboratory conditions.
Testing Standards
BS EN ISO 15025
Technical Specifications
Parameter Specification
Sample Holders Size 160 × 200mm and 80 × 200mm
Burner Nozzle Orifice 0.19mm
Flame Height 25mm ± 2mm
Timer Accuracy 0.1s
Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
Key Features
  • Stainless steel combustion chamber (1200 × 600 × 1200mm) - elegant and corrosion-resistant
  • All specimen holders constructed from stainless steel
  • Standard burner with precise flame control: 25mm ± 2mm horizontally, 40mm ± 2mm vertically
  • Automatic time recording and storage with 0.1s timer accuracy
  • PLC control system with touch screen for intelligent testing operations
  • Imported pressure gauge and regulating valve for stable gas pressure
  • Imported needle valve for precise flame height control and stable flame
  • User-friendly operation with high level of automation
  • Dual specimen holders for surface combustion and bottom combustion testing
  • Automatic system ignition and extinguishing
  • Integrated flame height gauge for verification
  • Pulsed high-voltage electronic automatic ignition system
  • PLC automated timing eliminates manual stopwatch use

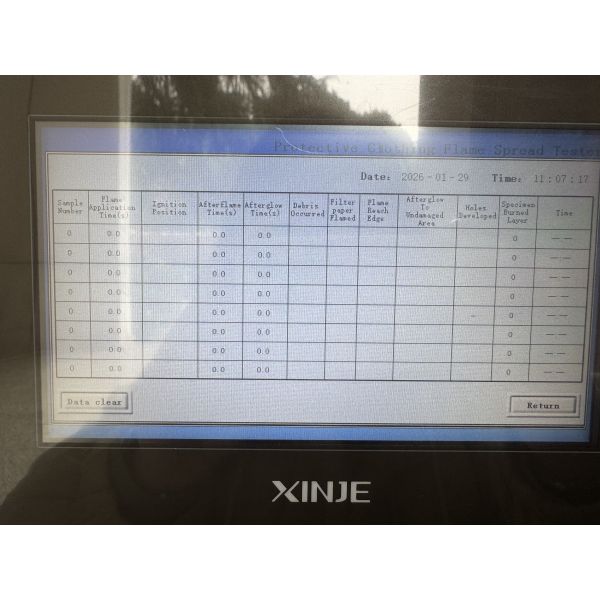

  • Automatic test report generation with recorded data
  • Customizable test and ignition times via touchscreen interface
  • Switchable test programs for surface burning and bottom edge burning
Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
