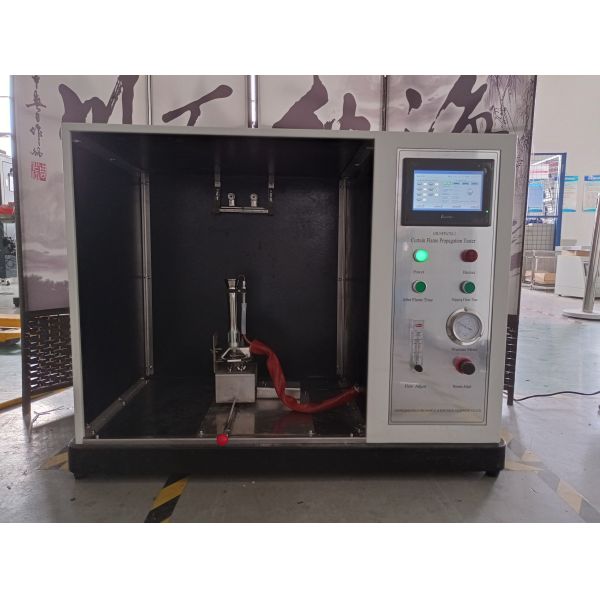

NFPA 701 Curtain Fabric Film Flame Spread Combustion Tester

NFPA701 Curtain Flame Propagation Test Machine Introduction:

This equipment is primarily developed and manufactured according to the US NFPA 701 standard and is used to test the flame propagation performance of fabric and film materials. This standard specifies flame retardancy testing methods for window covering materials such as curtains, drapes, and door curtains, as well as similar products such as awnings, tents, tarpaulins, stage curtains, architectural fabric structures, and banners. It is widely used to evaluate the combustion characteristics and safety of decorative and functional textile products in open flame environments.

NFPA701 Curtain Flame Propagation Test Machine standard:

NFPA 701: Standard Methods of Fire Tests for Flame Propagation of Textiles and Films
Method 1: Applicable to single-layer or tightly combined multi-layer fabrics (such as curtains, draperies, tablecloths, etc.), requiring a surface area density of ≤700g/m2, and testing flame propagation and afterburning time.

NFPA701 Curtain Flame Propagation Test Machine Parameters:

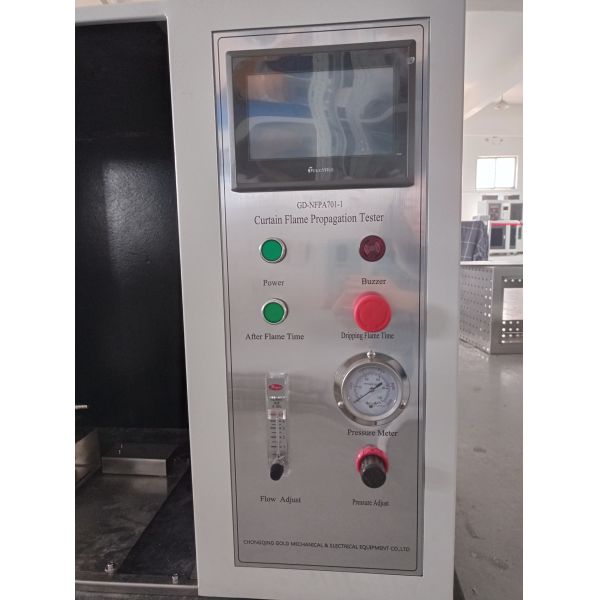

NFPA701 Curtain Flame Propagation Test Machine Feature:

1. Painted casing with a transparent observation window

2. Combustion chamber dimensions: 940mm (L) x 505mm (W) x 705mm (H)

3. Electronic automatic ignition; imported Meker burner

4. Automatic burner timer; automatic timer reminder

5. Ignition time can be set arbitrarily from 0 to 99.99 seconds; afterburning time and flame retardant time are automatically recorded and digitally displayed

6. Adjustable flame height and can be equipped with a flame temperature measuring device

7. "Push-pull" sample holder fixing device

8. Burner fixed on a sliding rail for easy operation; needle valve allows for flame height adjustment

9. Flow meter range: 0–1800cc/min

10. Power supply: 220V, 50Hz, 30W
