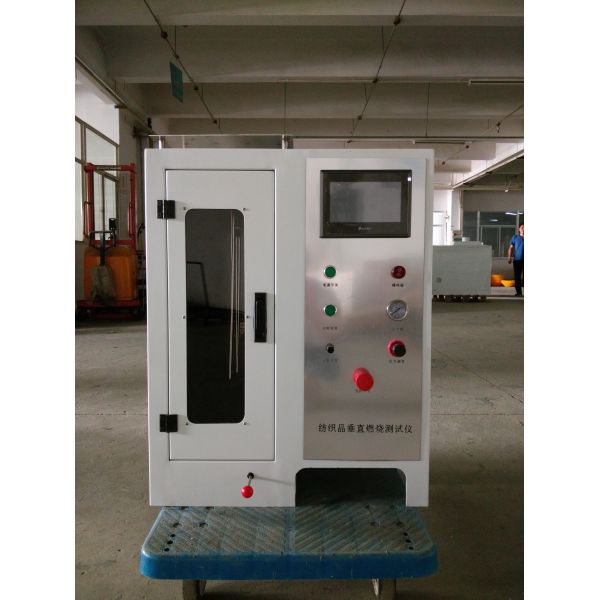

ASTM D6413 CFR 1615/1616 Vertical Burning Tester for Textiles

ASTM D6413 Fabric Vertical Flammability Tester Introduction:

This textile vertical burning tester is designed and manufactured according to relevant standards such as CFR 1615/1616, CA TB117, and ASTM D6413. It is primarily used to assess the flame retardancy of children's pajamas or pajama fabrics when exposed to a small open flame.

ASTM D6413 Fabric Vertical Flammability Tester standard:

ASTM D6413

CFR 1615/1616 Children's Pajamas

CA TB117 US Flame Retardant Standard for Upholstered Furniture Fabrics and Fillings

GB/T 5455 Vertical Burning Test

ASTM D6413 Fabric Vertical Flammability Tester Parameters:

ASTM D6413 Fabric Vertical Flammability Tester Feature:

1. Painted chamber with a transparent observation window;

2. Internal dimensions of the combustion chamber: 329mm (L) x 329mm (W) x 767mm (H)

3. Electronic automatic ignition;

4. Automatic burner timing and positioning;

5. Ignition time can be set arbitrarily from 0 to 99.99 seconds; afterburning time and flame retardant time are automatically recorded and digitally displayed;

6. Adjustable flame height and optional flame temperature measurement device;

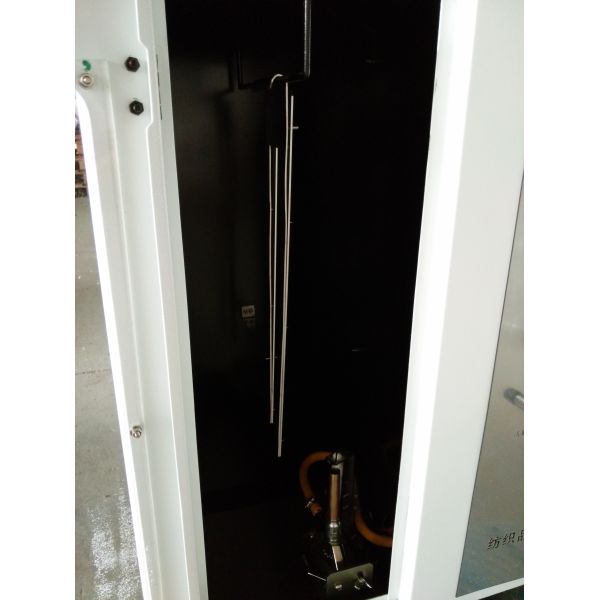

7. Push-pull sample holder fixing device;

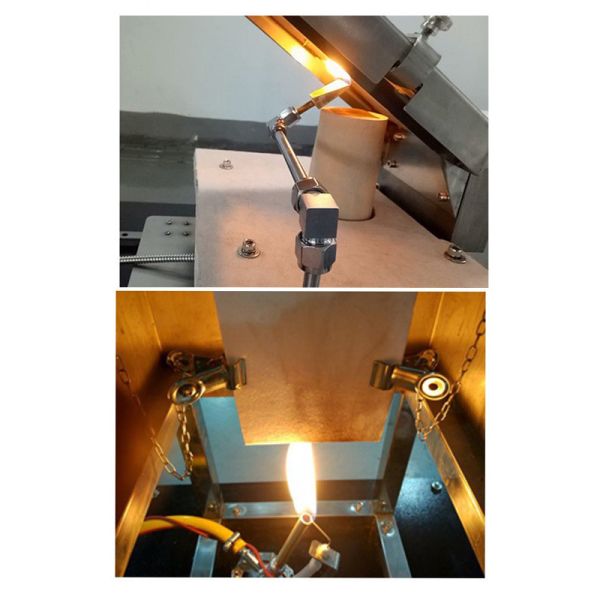

8. Burner fixed on a sliding track for easy operation; needle valve allows for flame height adjustment;

9. Multiple sample holders are available to suit different test samples.

ASTM D6413 Fabric Vertical Flammability Tester Technical indicators:

1. Sample size: Textiles: 80mm × 300mm

2. Burner moving motor power consumption: 10W

3. Ignition timer: 0～99.99 seconds (standard is 12 seconds)

4. Afterflame time and flame retardant time timer: 0～99.99 seconds, accuracy: ±0.01 seconds

5. Flame height measuring device: Scale height 40mm

6. Operating gas: Methane, propane, butane, liquefied petroleum gas, or other flammable gases

7. Power supply: AC220V, 50Hz, 50W

8. Weight: Approximately 20kg
