CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials
CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials
CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials
CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials
CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials
CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials
CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials
CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials
CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials
CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials
Specifications
Name :
Vertical Flammability Tester for Aviation Cabin Materials
Standard :
CCAR-25 FAR 25.853
Test chamber size :
305mm (length) x 305mm (width) x 610mm (height);
weight :
50kg
power supply :
AC220V, 50Hz, 50W
Test program :
Equipped with four types of combustion test sample holders: horizontal, vertical, 45°, and 60°.
Brand Name :
Gold
Model Number :
GD-CCAR-25
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,,MoneyGram
Supply Ability :
1 per 30 days
Delivery Time :
30 days
Packaging Details :
plywood box
Description
CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials

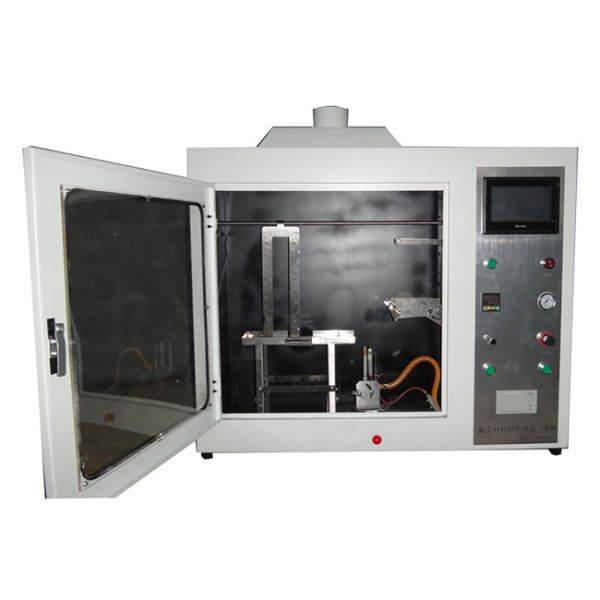

The CCAR-25/FAR 25.853 Vertical Flammability Tester is a professional fire testing instrument designed specifically for aviation interior materials. It fully complies with CCAR-25, FAR 25.853 Appendix F Part I, CS-25, Airbus AITM 2.0002, and Boeing BSS 7230 standards. Equipped with a precision Bunsen burner, automatic timing system, and standardized specimen holder, it accurately performs 12-second and 60-second vertical burn tests to evaluate flame spread length, after-flame time, and drip characteristics of aircraft cabin materials.
CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials
Compliance Standards
  • FAR 25.853 Appendix F Part I
  • Federal Aviation Regulation Part 25: Compartment Interiors Flammability Requirements
  • CCAR-25 Appendix F Part I
  • Appendix F to CCAR-25 -- Fire Test Criteria for Aircraft Material
Product Applications
The CCAR-25 Aircraft Vertical Flammability Tester is primarily used to evaluate the fire resistance of materials in aircraft cabins and cargo holds. The testing scope covers all materials exposed to passenger or crew areas:
  • Interior Ceiling Panels
  • Interior Wall Panels
  • Partitions
  • Galley Structure
  • Large Cabin Walls
  • Structural Flooring
  • Overhead luggage rack materials
  • Seat cushions and upholstery
  • Floor coverings
  • Decorative and non-decorative coated fabrics
  • Leather
  • Trays and galley furnishings
  • Electrical conduit
  • Air ducting
  • Joint and edge coverings
  • Liners for Class B and E Cargo Compartments
  • Floor Panels for Class B, C, E, and F Cargo Compartments
  • Cargo Covers
  • Transparencies
  • Moulded and Thermoformed Parts
  • Air Ducting Joints
  • Trim Strips - Decorative and Chafing
These products must pass a vertical test (flame application for 12 or 60 seconds) to ensure a burn length <203 mm, afterflame <15 seconds, and no dripping combustion.
Main Features
  • Painted chamber with a transparent observation window
  • Combustion chamber internal dimensions: 305mm (L) x 305mm (W) x 610mm (H)
  • Electronic automatic ignition
  • Ignition time can be set arbitrarily from 0 to 99.99 seconds
  • Adjustable flame height, and can be equipped with a flame temperature measuring device
  • "Push-pull" sample holder fixing device
  • Burner is fixed on a sliding track for easy operation
  • Imported needle valve precisely controls gas flow and adjusts flame height to 38.1mm
  • Multiple sample holders available to suit different test samples
  • Imported brand pressure gauge and pressure regulating valve for adjusting gas pressure

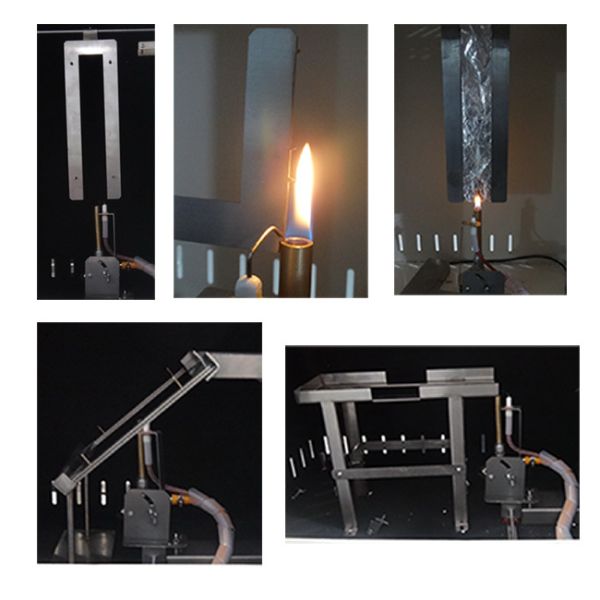

  • Equipped with four types of combustion test sample holders and test programs: horizontal, vertical, 45°, and 60°
  • Factory-verified flame temperature 843℃
  • PLC equipped with a touchscreen microcomputer control system
  • System provides data storage for 6-8 samples
  • System provides 4 sets of test programs
Note: This experiment is conducted with the front door open; a front decorative door is optional. The laboratory is opened, and the door is closed after the experiment.
CCAR-25 FAR 25.853 Vertical Flammability Tester for Aviation Cabin Materials
Technical Specifications
Specification Details
Sample Size Vertical and horizontal: 76*305mm; 60°C burning: sample length 762mm; 45°C burning: sample size: 254*254mm
Ignition Timing 0-99.99 seconds (standard is 12 seconds)
Timer Accuracy ±0.01 seconds
Flame Height Measurement Scale height 38.1mm
Gas Used Methane, propane, butane, liquefied petroleum gas, or other flammable gases
Power Supply AC220V, 50Hz, 50W
Weight Approximately 50kg
