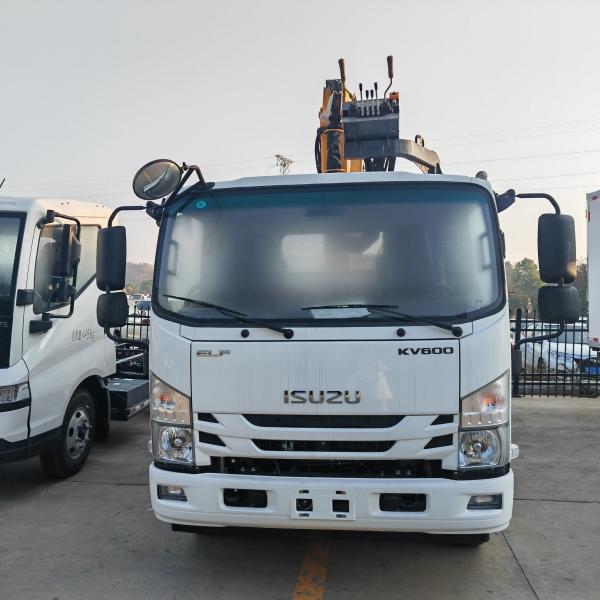

ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
Specifications
Certification :
ISO9001, ISO14001, OHSAS18001, CCC
Place of Origin :
China
Brand Name :
ISUZU Kv600
Model Number :
CLW
MOQ :
1
Price :
15000-35000 per unit
Packaging Details :
Nude
Delivery Time :
65 working days after deposit
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
500PCS/Week
Model NO. :
ISUZU Kv600
Condition :
New
Maximum Lifting Height :
15-20m
Maximum Lifting Weight :
5-7t
Shaft Number :
2
Crane Jib :
Four-Arm
Type :
Straight Arm
Product Name :
Ruck Monted Crane Telescopic Boom Lifting Mac
Driver Type :
4*2
Crane Model :
Lqs78A
Cabin :
Left Hand Driving, Remote Front Door Lock, with a/
ABC :
Equipped
Engine :
4 Cylinders
Power :
132HP
Emission Standard :
Euro 4
Fuel Type :
Diesel
Gearbox :
6 Speed
Front and Rear Axle Load :
2.5t/4.8t
Wheel Base :
2815mm
Engine Model :
Kh1cn6hb
Tyre :
750r16
Transport Package :
Nude Packing or Roro Ship
Specification :
11900x2500x3850 (mm)
Trademark :
ISUZU Kv600
Origin :
China
HS Code :
871631100
Customization :
Available
After-sales Service :
12 Month
Warranty :
10 Year
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Manufacture :
Chengli Special Automobile Co.,Ltd
Crane Brand :
XCMG
Description
ISUZU Kv600 Lorry Mini Truck Mounted Lqs78A Knuckle Boom Crane


1 telescopic boom or knucle boom all available
2 crane brand :CLW,ZOOMLION, SMJ, S ANY or others
3 Crane capacity : 2 ton ,3.2 ton ,4 ton ,5 ton ,6.3 ton ,7 ton ,8 ton ,10 ton ,12 ton ,14 ton ,16 ton ,20 ton ,25 ton ,30 ton ,40 ton ,60 ton ,70 ton ,80 ton ,100 ton ,120 ton ,150 ton etc

Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc


A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has
two parts: the carrier, often referred to as the Lower, and the lifting component which includes the
boom, referred to as the Upper. These are mated together through a turntable, allowing the upper
to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is
usually powered via hydraulics run through the turntable from the pump mounted on the lower. In
older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the
crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran
the upper through a hydraulic pump of its own. Many older operators favor the two-engine system
due to leaking seals in the turntable of aging newer design cranes.


Technical date :
Truck Specification
Truck model CL5044JSQZ
Cab ISUZU Kv600
Driving Type 4*2 Left hand driving
Max Speed (km/h) 95
Overall dimension(mm) 5995*1900*2820
GVW( kg) 4495
Mass in working order kg) 2900
Wheelbase(mm) 3360
F/R track base (mm) 1600/1535
F/R overhang (mm) 1160/1470
Approach/Departure Angel 18/16
Tire 7.00R16(6+1)
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box 6 Speed
Bridge Front axle 2.5T
Rear axle 4.8T
Enging Model KH1CN6HB
Fuel Type Diesel fuel
Type Water-cooled four-stroke,, direct injection, turbocharged
Exhaust(ml) 2540
Max output power/rotate speed (hp /rpm ) 90/3000
Max torque/rotate speed(N.m/rpm) 220/2100
Braking system Service Brake Compressed air brake
Park Brake Spring energy
Eletric system 24v
Upper-Body specification
Model LQS78-A
Match the truck Above 3 tons loading truck
Assembling space (mm) 900
Mass working weight (kgs) 950
Max lifting weight (t) 3.5
Max lifting torque(t.m) 8.8
Max lifting height (m) 9.5
Max working radius (m) 7.61
Cross section form Pentagon
Number of arms 3
Length(m) 3.5-7.82
Extending speed(m.s) 0.1
Range 1-73
The arm angular velocity (°/s) 5.2
Hook speed (m/min) 9
Diameter of wire rope (mm) 8
Length of wire rope (mm) 45
Slewing mechanism Rotating speed (r/min) 2.5
Rotating range (°) 360
Leg Type H
Span(m) 1.85-3.1
Hydraulic system Pressure (mpa) 17
Capacity(l) 45
Safety device Overwind alarm
Lifting capacity
Working radius (m) 2.5 3.5 4.5 5.5 7.61
Rated loading (kgs) 3500 1380 930 680 430

Chassic :

CNHTC , Beiben trucks , Shacman trucks , FAW trucks , I SUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks



ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane

Application:

For general cargo lifting and other special things like timber and brick by changing other equipment.

ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane

Details :
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

ISUZU Kv600 Lorry Mini Truck Mounted Crane Lqs78A Telescopic Knuckle Boom Crane
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
