Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Specifications
Certification :
ISO9001, ISO14001, OHSAS18001, CCC
Place of Origin :
China
Brand Name :
Foton Auman
Model Number :
CLW
MOQ :
1
Price :
15000-35000 per unit
Packaging Details :
Nude
Delivery Time :
65 working days after deposit
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
500PCS/Week
Model NO. :
Foton Auman
Condition :
New
Maximum Lifting Height :
25-30m
Maximum Lifting Weight :
>16t
Shaft Number :
3
Crane Jib :
Five-Arm
Type :
Folding
Engine Model :
Isge3-380
Driver Type :
8*4
Crane Model :
Sqz560
Lorry Capacity :
30ton
Axle :
6ton /16ton
ABC :
Equipped
Tyre :
12.00r20 20pr
Power :
380HP
Emission Standard :
Euro 3
Fuel Tanker :
350L
Fuel Type :
Diesel
Lorry Length :
7meter
Wheel Base :
1800+3950+1350
Transport Package :
Nude Packing or Roro Ship
Specification :
9000*2500*3540 (mm)
Trademark :
Foton
Origin :
China
HS Code :
871631100
Customization :
Available
After-sales Service :
12 Month
Warranty :
10 Year
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Manufacture :
Chengli Special Automobile Co.,Ltd
Description
Foton Auman RHD Cargo Truck Mounted 28ton SQZ560 Folding Hydraulic Mobile Telescopic Boom Crane

Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc


A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has two parts: the carrier, often referred to as the Lower, and the lifting component which includes the boom, referred to as the Upper. These are mated together through a turntable, allowing the upper to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is usually powered via hydraulics run through the turntable from the pump mounted on the lower. In older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turntable of aging newer design cranes.


Technical date :
1.Technical parameters
Production date Brand new
Warranty time 12 months
Driving type 8 X 4, Right Hand Drive
Chassis Brand FOTON EST
Overall Dimension(mm) 12000×2550×3990
Wheelbase(mm) 1800+3950+1350
Gross weight(kg) 31000
Curb weight(kg) 20800
Front axle 5.26 T
Rear axle 16 T
Transmission HW23712
Max driving speed(km/h) 95
Tire 12.00R20 20PR
Quantity 12+1
Paint Automotive metallic paint
Cab Standard cab 2 passengers allowed
Engine Brand Foton C ummins
Fuel type Diesel
Model ISGe3-380
Max Horsepower (hp) 380
Emission standard Euro 3
28 Ton Folding Crane
Max Lifting Capacity kg 28000
Max Lifting Hight Meter 21
Work Radius Meter 18.5
Rotation Angle . 360 All Rotation
Model SQZ560-7

Chassic :

CNHTC , Beiben trucks , Shacman trucks , FAW trucks , I SUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks

Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane


More Crane:
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Application:
For general cargo lifting and other special things like timber and brick by changing other equipment.
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane

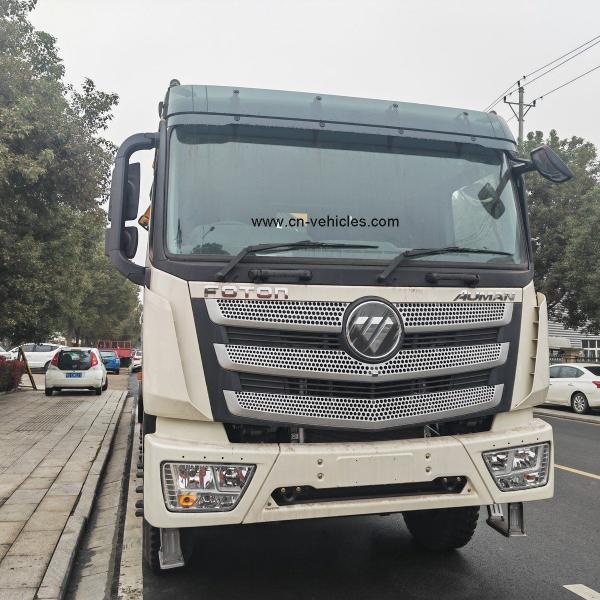

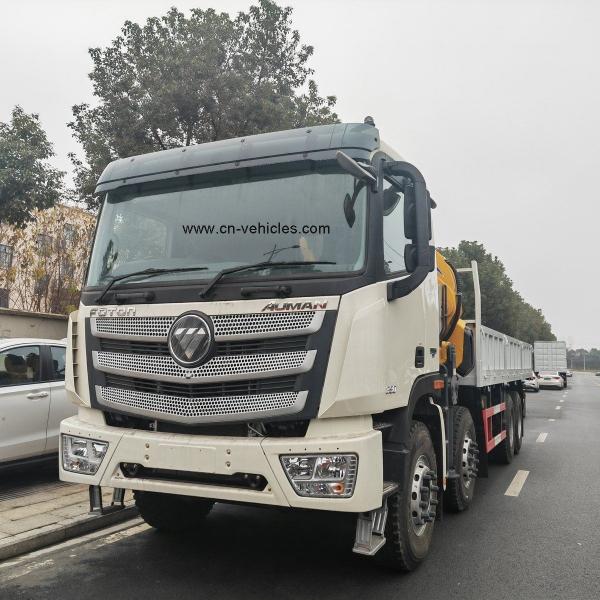

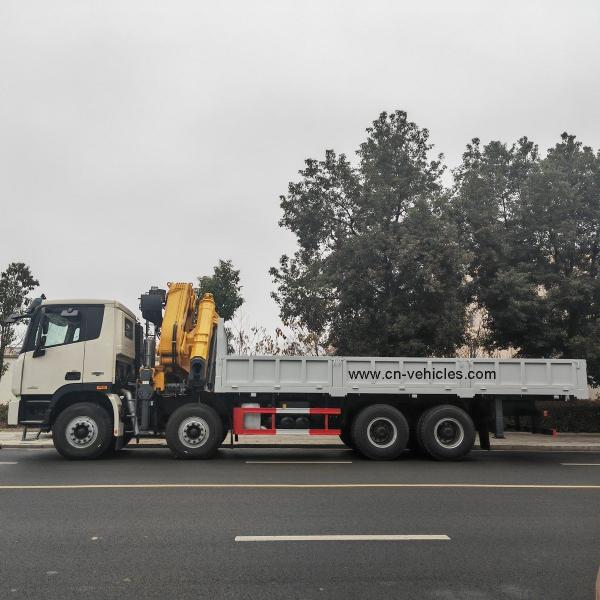

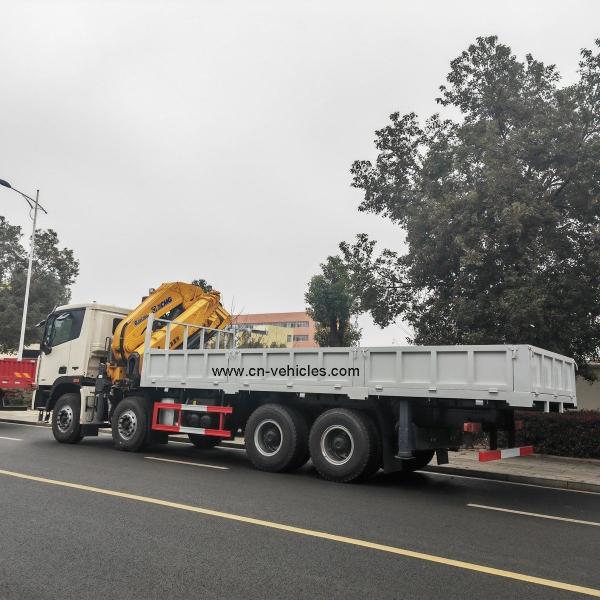

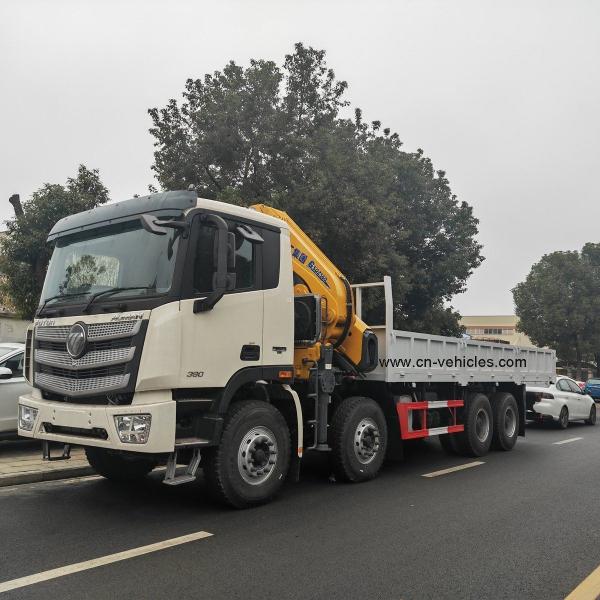

Truck Details:
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
Telescopic Boom Truck Mounted Crane 28ton SQZ560 Folding Hydraulic Mobile Crane
