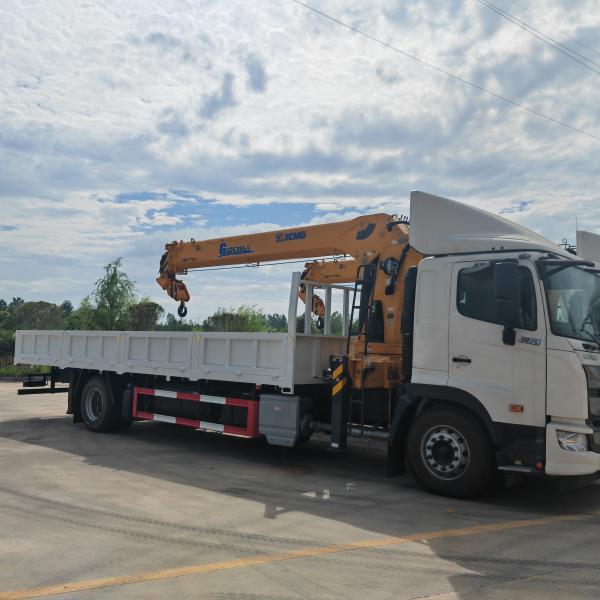

HINO 700 Truck With XCMG 12Ton GSQS300-5 Straight Crane

700 truck paired with an X CMG 12-ton GSQS300-5 straight crane is a heavy-duty combination designed for various lifting and transport tasks
Engine Options: The Hino 700 series offers a range of engine power ratings, typically from 320hp and 1275Nm up to 480hp and 2157Nm of torque. They generally meet Euro 6 exhaust emission standards, focusing on cleaner operations and improved fuel efficiency.
Transmission: Available with both true automatic and automated manual transmissions (AMT), including the ZF 16 TraXon AMT for enhanced drivability and fuel consumption
Axle Configurations: The 700 series comes in various axle configurations, such as 4x2, 6x2, 6x4, and 8x4, to suit different applications and gross vehicle mass (GVM) and gross combination mass (GCM) requirements
Safety Features: Modern Hino 700 trucks often include advanced safety features like Hino SmartSafe, pre-collision systems, lane departure warning, pedestrian detection, vehicle stability control, electronic braking systems, and reversing cameras. The cab is also typically certified to ECE-R29 crash test standards for strength.

The X CMG GSQS300-5 is a 12-ton (or 13-ton, depending on the specific model variation) straight/stiff boom truck-mounted crane.

Max Lifting Capacity: 12,000 kg (12 tons) to 13,000 kg (13 tons).

Max Lifting Moment: Around 30 t.m to 330 kN·m.

Max Hydraulic Boom Length: Varies depending on the specific model, but generally in the range of 18.2m to 22.417m.

Max Lifting Height: Approximately 18.75m.

Rotation Angle: 360° all rotation.

Outrigger Span: Can range from approximately 2474mm to 7582mm for stability during lifting operations.

Crane Weight: Around 4415 kg.

Features: Often includes features like a mechanical stroke valve double-cylinder telescopic system for reliable sequential operations and reduced pressure loss.
