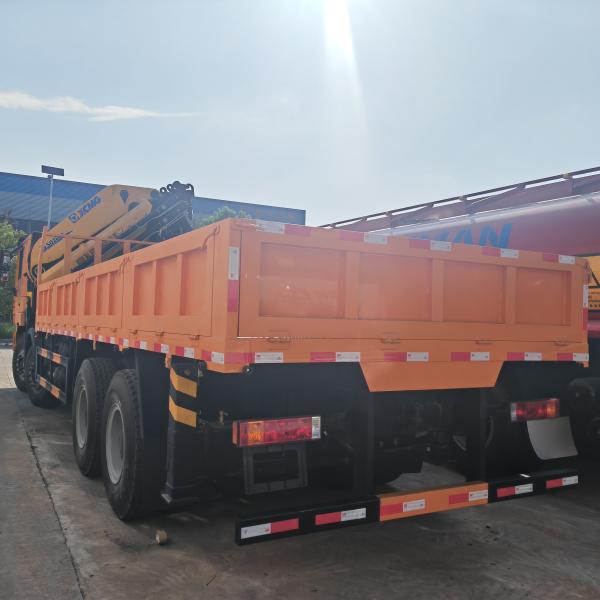

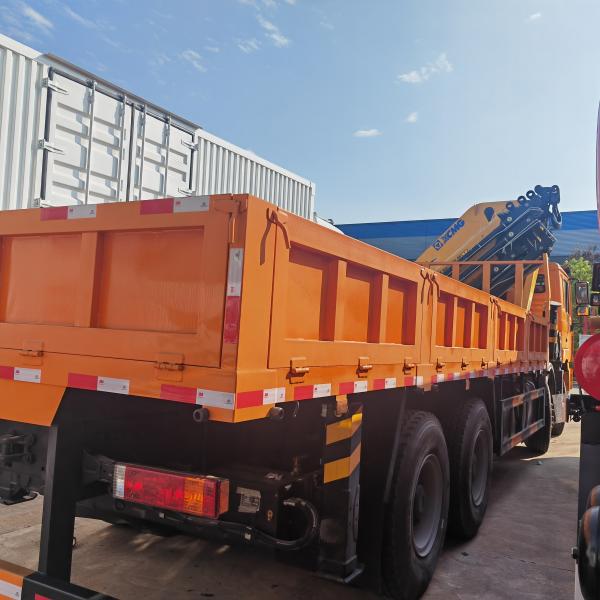

Shacman F3000 Truck With XCMG GSQZ860 32ton Folding Crane

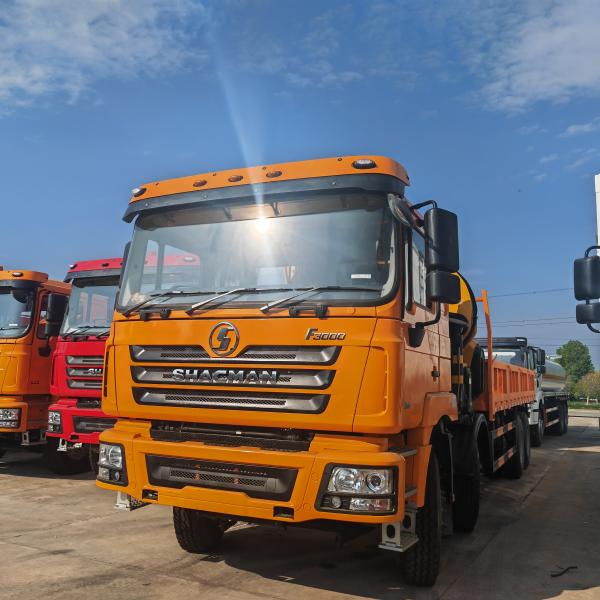

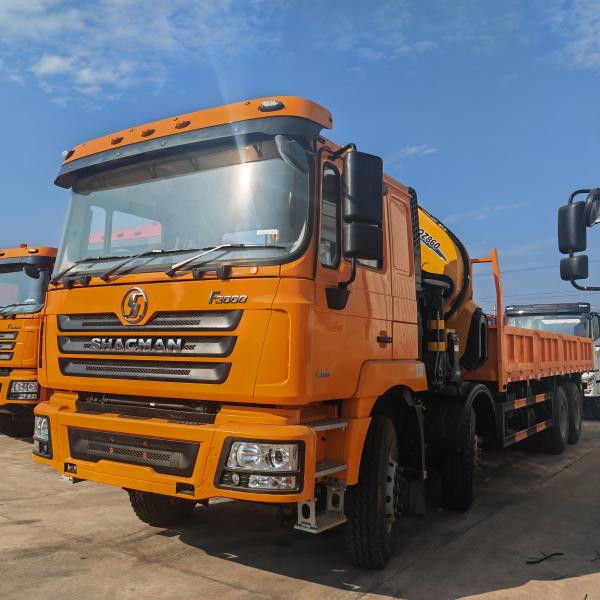

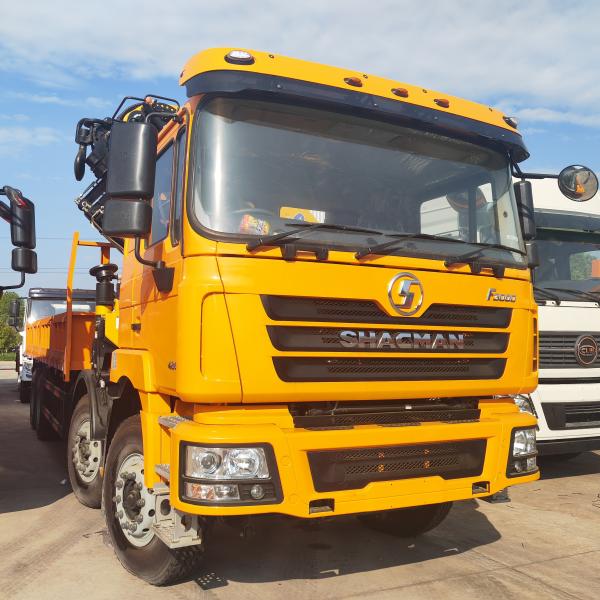

Shacman F3000 is a heavy‑duty truck series from Chinese manufacturer Shaanxi Heavy Duty Automobile, built on the MAN F2000 platform. Available configurations include 4×2, 6×4, and 8×4, with diesel engines (Weichai WP10/WP12 or Cummins ISM) ranging from 270 to 460 hp, compliant with Euro II–V emission standards

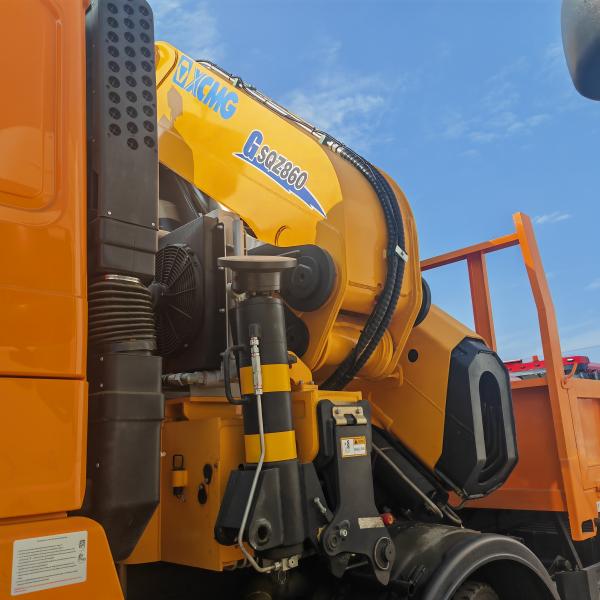

The GSQZ860 series comprises knuckle‑boom truck‑mounted cranes with lifting capacity of approximately 43 tons (≈ 43,000 kg).
Maximum lifting capacity: 43,000 kg

GSQZ860.6
Maximum lifting capacity: 43,000 kg

Maximum outreach: ~15.83 m

Lifting moment: ~740 kN·m

Rotation: 360° continuous

Outrigger spread: ~8.2 m

Compact design with finite element lightweight boom and octagonal cross‑section for increased strength and reduced weight

GSQZ860.7
Similar specs to 860.6 but with outreach extending up to ~17.98 m

Maximum working height: ~17.84 m

Also features 740 kN·m moment and 360° rotation

GSQZ860.8
Lifting capacity: 43,000 kg

Max. boom length: ~20.13 m

Max. lifting torque: ~772 kN·m

As with other variations, full 360° rotation, regenerative pump and sequential telescopic control for high efficiency. Optional remote control, dual-cylinder outriggers for enhanced stability, and temperature‑adapted hydraulic oil included as standard

Heavy-duty lifting: Capable of handling large loads (~43 t) with solid lifting torque up to ~772 kN·m.

Versatile range: Depending on the variant, outreach from ~15.8 m to ~20.1 m.

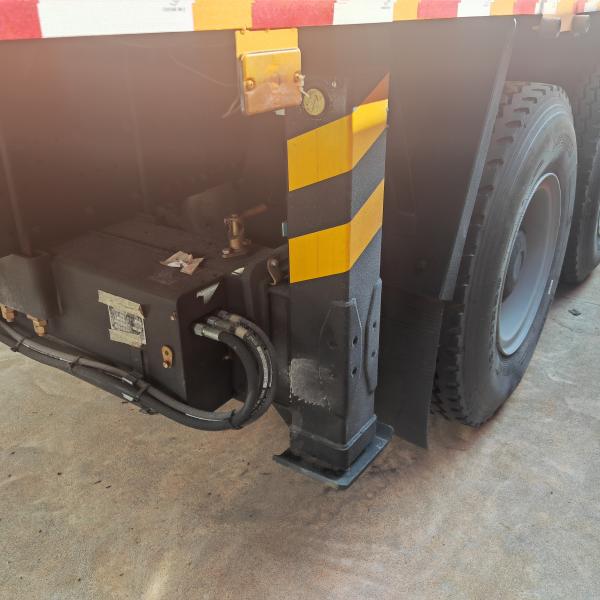

Stability and safety: Dual‑stage outriggers, locking legs, torque‑limiting valves, and optional remote control enhance both safety and ease of operation.

Space‑efficient design: Knuckle‑boom fold mechanism allows compact stowage on the flatbed, minimizing overall vehicle length
