ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
Specifications
Place of Origin :
China
Brand Name :
ISUZU Giga
Certification :
GS, RoHS, CE, ISO9001
Model Number :
CLW
MOQ :
1
Price :
15000-35000 per unit
Packaging Details :
Nude
Delivery Time :
65 working days after deposit
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
500PCS/Week
Model NO. :
ISUZU Giga
Maximum Lifting Height :
15-20m
Maximum Lifting Weight :
14-16t
Shaft Number :
3
Crane Jib :
Four-Arm
Type :
Straight Arm
Driver Type :
4*2
Crane :
8ton
Lorry Capacity :
16 Ton
Cabin :
Left Hand Driving, Remote Front Door Lock, with a/
ABC :
Equipped
Engine :
6 Cylinders
Power :
204HP
Emission Standard :
Euro 6
Displacement :
6.7L
Fuel Type :
Diesel
Gearbox :
9 Forward & 1 Reverse Gear
Front and Rear Axle Load :
8000/11500(Kg)
Wheel Base :
5550mm
Overhang( Front/Rear) :
1250/3545(mm)
Transport Package :
Nude Packing or Roro Ship
Specification :
11980*2500*3980 (mm)
Trademark :
giga
Origin :
China
HS Code :
871631100
Package Size :
1.00cm * 1.00cm * 1.00cm
Package Gross Weight :
1.000kg
Customization :
Available
Condition :
New
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Manufacture :
Chengli Special Automobile Co.,Ltd
Description

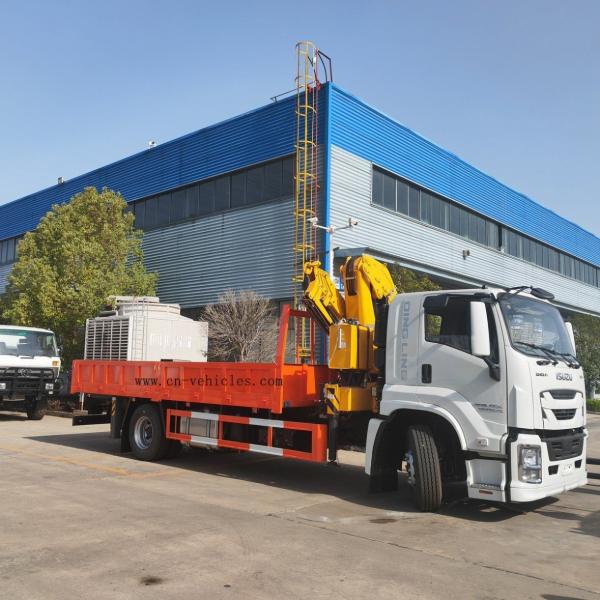

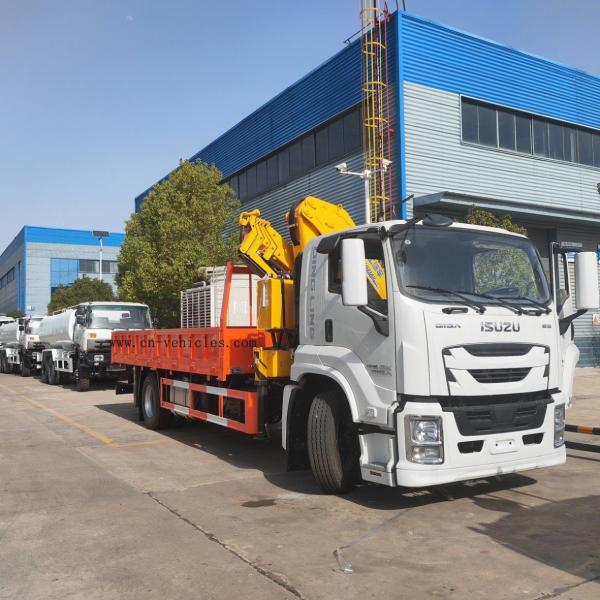

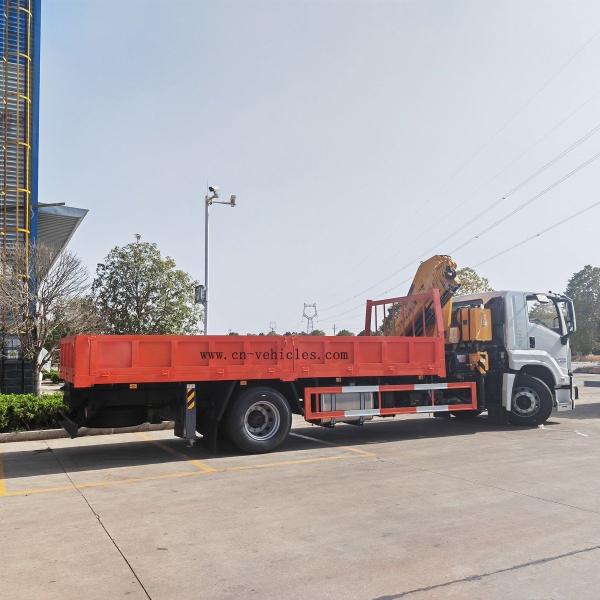

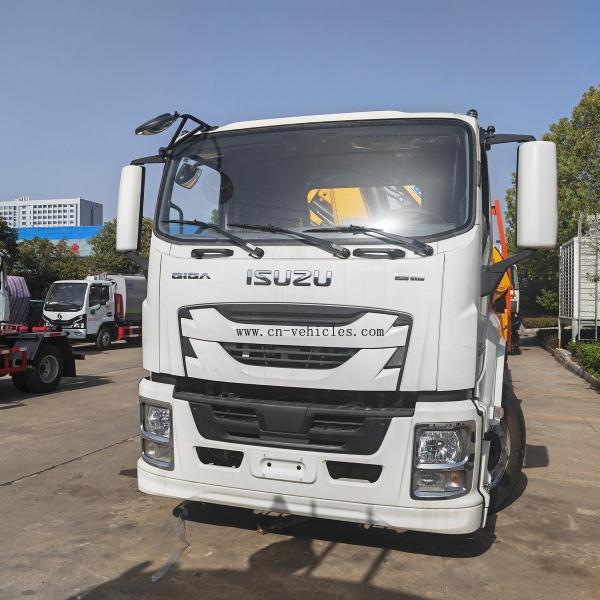

ISUZU Giga 204hp truck with SQ8ZK3Q 8ton Mobile Folding Crane

Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc


GIGA 16 Wheels 16Ton Hydraulic Mobile Straight Boom Arm Crane Truck With High Position Seat For Heavy Duty Equipments Delivery
Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
General Technical Parameters
Overall Dimension 11980×2500×3980 (mm)
Gross Vehicle Weight 24900(Kg)
Curb Weight 15800(Kg)
Chassis Specification
Chassis Brand Giga
Drive model 8*4
Cabin Double, Left Hand Driving, with air conditional
Number of Passengers 3
Engine Model 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power
204hp
Emission standard EURO 6
Displacement 8300(ml)
Fuel type Diesel
Gearbox 9Forwards & 1Reverse
Brake System Air break
Wheel Base 4500 mm
Front/Rear Axle Loading 8000/11500(Kg)
Approach/Departure Angle 23/12(°)
Overhang 1250/3545(mm)
Tire 11.00R20
Max Driving Speed 90(km/h)
Upperstructure Specification
Cargo Body Dimension 8600×2300×550(mm)
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm
Working System Boom Type Straight 4-Arm telescopic boom
Crane Crane Brand SQ8ZK3Q
Range of Sprayer 30m
Max Lifting Moment 25(T.M)
Max Lifting Capacity 16000(kg)
Max lifting height 12(m)
Rotation angle 360(°)
Installation space 1150(mm)
Recommented power 30(kw)
Maximum working pressure 26(Mpa)
Max Flow 63(l/min)
Crane weight 3800(kg)
Oil tank capacity 160(L)
Leg Leg type H type
Leg Span 2.28-5.9(m)
Hydraulic system Pressure 18(M pa)
Capacity 70(l)
Other Configuration Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.


CNHTC , Beiben trucks , Shacman trucks , FAW trucks , ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks



ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
Application:

For general cargo lifting and other special things like timber and brick by changing other equipment.

ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane

Details :
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
ISUZU Truck Mounted Crane 8ton Mobile Folding Boom Truck Crane
