SS316L Welding Longitudinal Finned Pipe Tube For Radiator Customized
SS316L Welding Longitudinal Finned Pipe Tube For Radiator Customized
SS316L Welding Longitudinal Finned Pipe Tube For Radiator Customized
SS316L Welding Longitudinal Finned Pipe Tube For Radiator Customized
SS316L Welding Longitudinal Finned Pipe Tube For Radiator Customized
SS316L Welding Longitudinal Finned Pipe Tube For Radiator Customized
SS316L Welding Longitudinal Finned Pipe Tube For Radiator Customized
SS316L Welding Longitudinal Finned Pipe Tube For Radiator Customized
Specifications
Brand Name :
YuHong
Model Number :
ASTM A213 TP316L Longitudinal Welding Finned Tube F
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China
MOQ :
2 PCS
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIAGHT
Supply Ability :
According to Clients' requirements
Delivery Time :
35-60 Days (Depend on Order's Quantity and Complexity)
Packaging Details :
Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Product Name :
Stainless Steel Longitudinal Welding Finned Tube
Base Tube Specification :
ASTM A213
Base Tube Material :
TP316L
Fin Material :
SS316L
Base Tube OD&Wall Thickness :
Customized
Fin Size :
Customized
Fin Shape :
U Shape
Application :
Heater Parts, HVAC Systems, Heat Exchanger, Power Generation
Description
ASTM A213 TP316L Welding Longitudinal Finned Tube for Heat Exchanger and Boiler
Product Specifications
Attribute Value
Product Name Stainless Steel Longitudinal Welding Finned Tube
Base Tube Specification ASTM A213
Base Tube Material TP316L
Fin Material SS316L
Base Tube OD & Wall Thickness Custom-sized
Fin Size Custom-sized
Fin Shape U Shape
Application Heater Parts, HVAC Systems, Heat Exchanger, Power Generation
Product Description

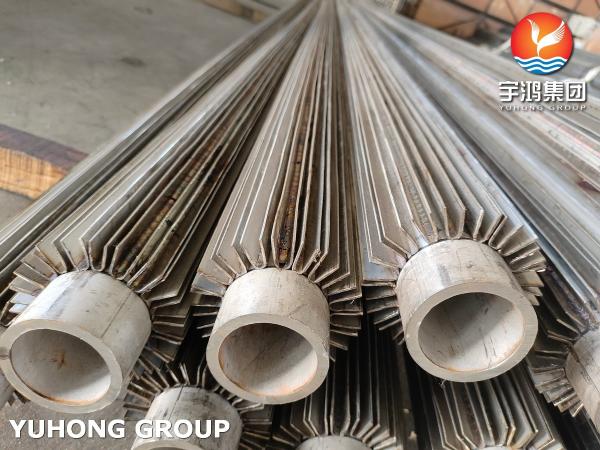

Longitudinal Welding Finned Tubes are specialized heat transfer components designed to maximize efficiency by increasing surface area. These tubes feature fins welded longitudinally onto the outer surface of a base tube, creating enhanced thermal exchange capabilities ideal for critical heat transfer applications.
Key Features
Construction
  • Base Tube: ASTM A213 TP316L stainless steel or other alloys
  • Fins: Metal strips welded longitudinally using high-frequency techniques
  • Strong bond between fins and base tube ensures durability
Design
  • Fins aligned parallel to tube axis
  • Customizable fin height, thickness, and spacing
Advantages
  • Increased surface area for superior heat transfer
  • High mechanical strength and durability
  • Excellent corrosion resistance with stainless steel construction
  • Fully customizable to specific thermal requirements
Material Composition (ASTM A213 TP316)
Element Composition (%)
Carbon (C) 0.08% max
Manganese (Mn) 2.00% max
Phosphorus (P) 0.045% max
Sulfur (S) 0.030% max
Silicon (Si) 1.00% max
Chromium (Cr) 16.0% - 18.0%
Nickel (Ni) 10.0% - 14.0%
Molybdenum (Mo) 2.00% - 3.00%
Nitrogen (N) 0.10% max
Mechanical Properties
Property Value
Tensile Strength 515 MPa (75,000 psi) min
Yield Strength 205 MPa (30,000 psi) min
Elongation (in 2 inches) 40% min
Hardness (Typical) 80 HRB max
Performance Characteristics
  • Superior resistance to pitting, crevice corrosion, and stress corrosion cracking
  • Maintains mechanical properties at elevated temperatures
  • Excellent weldability with proper post-weld treatment
  • Ideal for chloride-containing environments
Industrial Applications
  • Shell-and-tube heat exchangers for petrochemical and power industries
  • Boilers and superheaters in power plants
  • Chemical processing equipment handling corrosive media
  • Refinery distillation and processing units
  • Food processing and pharmaceutical manufacturing
  • Marine and offshore heat exchange systems
  • HVAC and waste heat recovery applications
