Specifications
Brand Name :
YUHONG
Model Number :
ASTM A213 TP316L
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply - Wooden Case + Iron Frame
Base Tube Material Grade :
TP304, TP304L, TP304H, TP310, TP310H, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H,
Fin Material :
Carbon Steel , Stainless Steel , Alloy Steel
Type :
Longitudinal Finned Tube
Application: :
Furnace Tube, Tube Coil , Radiate Tube , Convenction Tube , Fired Heater
Description

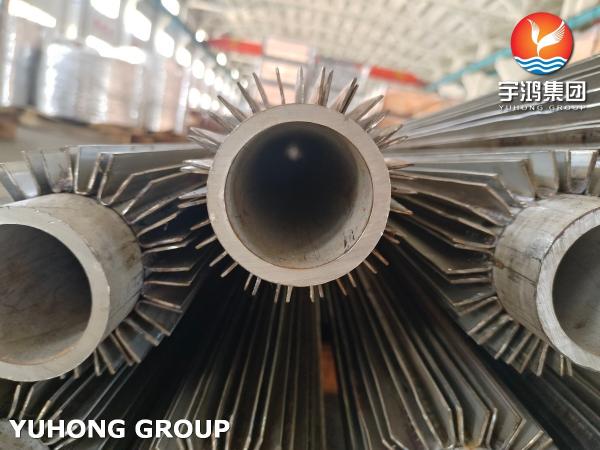

ASTM A213 TP316L Longitudinal Finned Tube Furnace Boiler
Product Specifications
Attribute Value
Base Tube Material Grade TP304, TP304L, TP304H, TP310, TP310H, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H
Fin Material Carbon Steel, Stainless Steel, Alloy Steel
Type Longitudinal Finned Tube
Application Furnace Tube, Tube Coil, Radiate Tube, Convenction Tube, Fired Heater
Product Description

High Frequency Welding (HFW) Fin Tubes are engineered for superior heat transfer efficiency and durability across multiple industrial applications. Their robust construction withstands high temperatures and pressures while offering excellent corrosion resistance.

Fin Tube Types
Type Description Base Tube O.D. (mm) Fin Pitch Fin Height Fin Thickness
Embedded G-type fin tube 16-63 2.1~5 <17 ~0.4
Extruded Single metal combined metal 8-51 1.6~10 <17 0.2-0.4
Low fin tube T-type fin tube 10-38 0.6~2 <1.6 ~0.3
Bamboo tube Corrugated tube 16-51 8.0~30 <2.5 /
Wound L/KL/LL type fin tube 16-63 2.1~5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
Chemical Composition (ASTM A213 TP316L)
C Si Mn P S Cr Ni Mo
≤ 0.035 ≤ 0.75 ≤ 2.0 ≤ 0.040 ≤ 0.03 16.0~18.0 10.0~15.0 /
Industrial Applications
  • Heat Exchangers
  • Chemical Industry
  • Refrigeration and Air Conditioning
  • Oil and Gas
  • Power Industry
  • Marine Engineering
  • Food and Pharmaceutical Industries
