Specifications
Brand Name :
YUHONG
Model Number :
Longitudinal Finned Tube , Longitudinal Welding Fin tube
Certification :
ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 75 Days
Packaging Details :
Bundle + Cap , Ply wooden case
Base Tube Material :
TP316L
Base Tube Standard :
ASTM A213 , ASME SA213
Fin Type :
Longitudinal Finned Tube , Longitudinal Welding Fin tube
Fin qty :
..., 16U , 18U, 20U, 22U ,...
Fin Tube Length :
20m/pc
Application :
HVAC systems, Refrigeration units, Industrial heat exchangers, Boiler, Air cooler, Power Plant
Description
HVAC Systems Refrigeration Units ASTM A213 TP316L Longitudinal Welding Fin Tube
Product Specifications
Attribute Value
Base Tube Material TP316L
Base Tube Standard ASTM A213, ASME SA213
Fin Type Longitudinal Finned Tube, Longitudinal Welding Fin tube
Fin Quantity ..., 16U, 18U, 20U, 22U, ...
Fin Tube Length 20m/pc
Application HVAC systems, Refrigeration units, Industrial heat exchangers, Boiler, Air cooler, Power Plant
Product Description

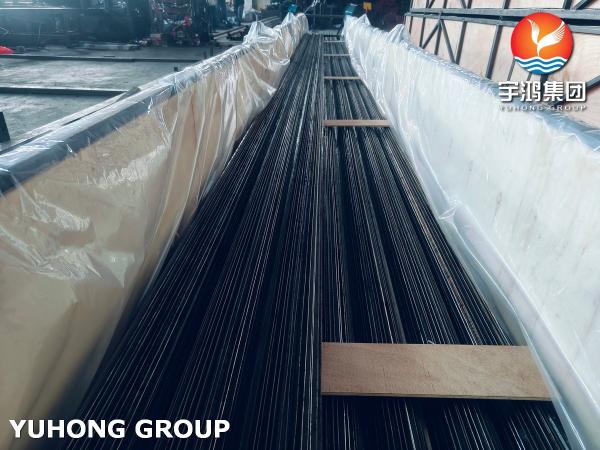

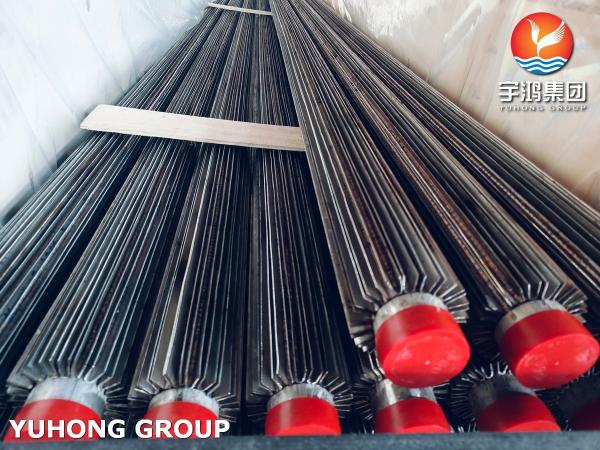

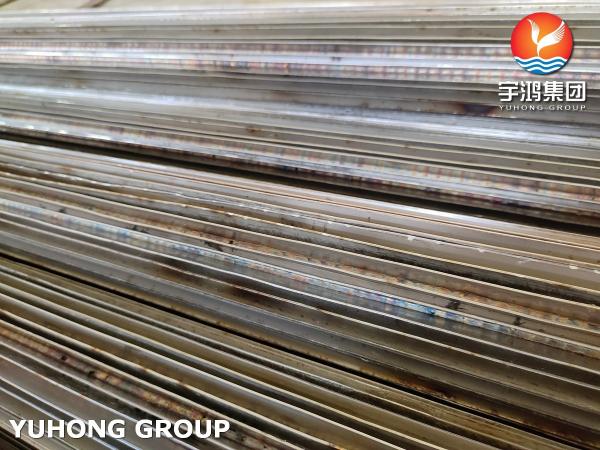

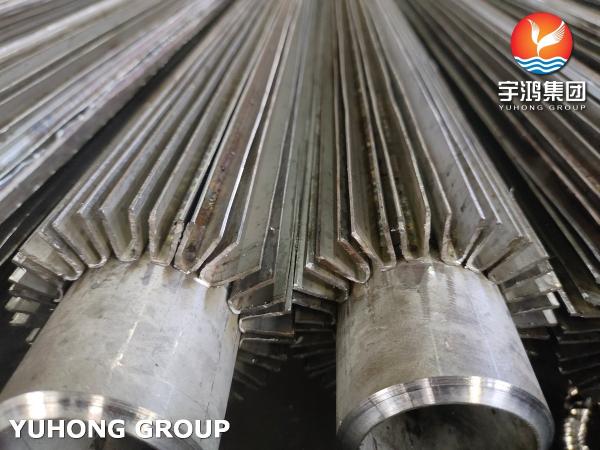

ASTM A213 TP316L Longitudinal Welding Fin Tube is a specialized heat transfer component manufactured from TP316L stainless steel, renowned for its exceptional corrosion resistance, particularly in chloride-rich environments. The longitudinal fin design, with fins running parallel to the tube, significantly enhances heat transfer efficiency by increasing the surface area. The low carbon content of TP316L minimizes carbide precipitation, improving weldability and resistance to intergranular corrosion.
Chemical Composition
Grade Cr Ni Mo C
TP316L 16.0-18.0% 10.0-14.0% 2.0-3.0% ≤ 0.03%
Mechanical Properties
Grade Tensile Strength Yield Strength Elongation Hardness
TP316L ≥ 170 MPa (25 ksi) ≥ 485 MPa (70 ksi) ≥ 35% in 50 mm Typically ≤ 90HRB
Industry Applications
  • Chemical Processing: Heat exchangers and reactors handling corrosive chemicals at high temperatures, ensuring consistent performance and longevity.
  • Food and Beverage Industry: Pasteurizers and sterilizers requiring high corrosion resistance to maintain hygiene and safety standards.
  • Pharmaceutical Industry: Process heaters and coolers demanding stringent cleanliness and corrosion resistance for precise temperature control.
  • Desalination Plants: Evaporator tubes handling saline solutions with exceptional durability and corrosion resistance.
  • Marine Applications: Heat exchangers operating in high-chloride environments, resistant to pitting and crevice corrosion.
