UNS 50400 GR7 Heat Exchanger Pipe Air Preheater Tube In Chemical Industries
UNS 50400 GR7 Heat Exchanger Pipe Air Preheater Tube In Chemical Industries
UNS 50400 GR7 Heat Exchanger Pipe Air Preheater Tube In Chemical Industries
UNS 50400 GR7 Heat Exchanger Pipe Air Preheater Tube In Chemical Industries
UNS 50400 GR7 Heat Exchanger Pipe Air Preheater Tube In Chemical Industries
UNS 50400 GR7 Heat Exchanger Pipe Air Preheater Tube In Chemical Industries
UNS 50400 GR7 Heat Exchanger Pipe Air Preheater Tube In Chemical Industries
UNS 50400 GR7 Heat Exchanger Pipe Air Preheater Tube In Chemical Industries
Specifications
Brand Name :
YUHONG
Model Number :
Seamless Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 60 Days
Packaging Details :
Ply-Wooden Case + Iron Frame
Material :
GR7
Standard :
UNS 50400
Ends :
PE , BE
Application :
Heat Exchangers, Condensers, Coolers, Etc.
Description

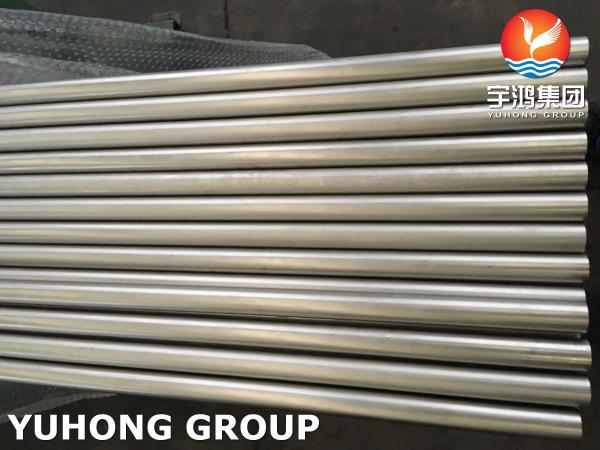

Titanium Alloy Steel UNS 50400 GR7 Heat Exchanger Tube In Chemical Industries
Product Specifications
Attribute Value
Material GR7
Standard UNS 50400
Ends PE, BE
Application Heat Exchangers, Condensers, Coolers, Etc.
Product Overview

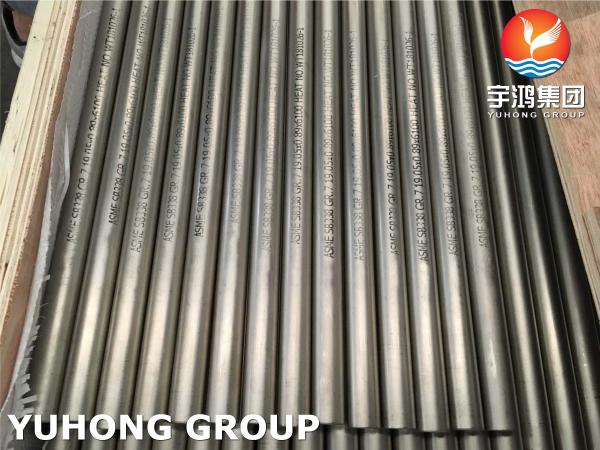

The ASME SB338 standard governs the material specifications for titanium tubes and titanium alloy tubes used in heat exchangers and other high-pressure applications. The "SB" designation indicates that the material is for boiler and pressure vessel applications.
The Grade 7 (Gr. 7) designation refers to a specific titanium alloy with 0.2% palladium for enhanced corrosion resistance. This alloy is lighter than steel, which is particularly advantageous in aerospace, marine, and other weight-sensitive industries. It provides strong mechanical performance, allowing for the construction of pressure vessels and heat exchangers without excessive material thickness.
Chemical Composition
  • Titanium Grade 7 (Ti-0.2Pd) is an alloy primarily composed of titanium with a small percentage of palladium (0.12-0.25%). This alloy offers enhanced corrosion resistance in aggressive environments.
  • Titanium (Ti) provides excellent strength-to-weight ratio, outstanding corrosion resistance, and high-temperature performance.
  • Palladium (Pd) improves resistance to general corrosion, particularly in acidic environments.
Manufacturing and Processing
  • Cold Working: Typically processed into tubes, sheets, and plates through extrusion, rolling, or drawing.
  • Heat Treatment: Annealing or solution heat treatment can improve ductility and strength in specific applications.
  • Welding: Weldable using TIG processes, with palladium enhancing weldability compared to other titanium grades.
  • Surface Finish: Smooth surfaces preferred for heat exchanger applications to enhance efficiency and reduce fouling.
Key Applications
  • Seawater heat exchangers for ships, offshore oil rigs, and desalination plants
  • Cooling systems for naval vessels and submarines
  • Offshore oil and gas platform heat exchangers
  • Petrochemical refining cooling systems
  • Reverse osmosis (RO) desalination unit cooling systems
