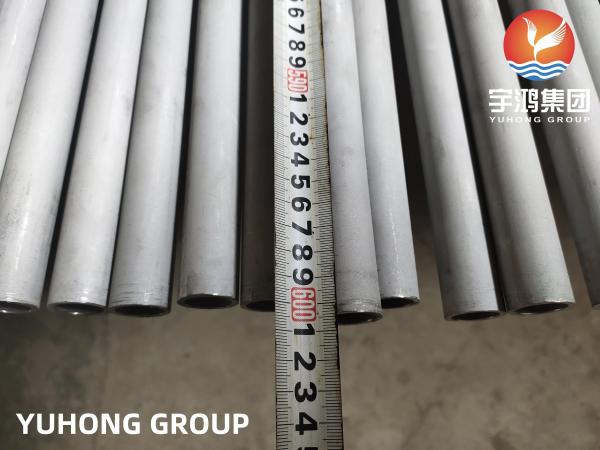

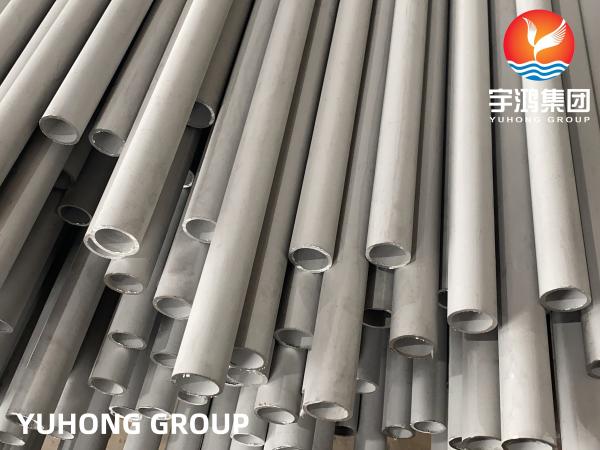

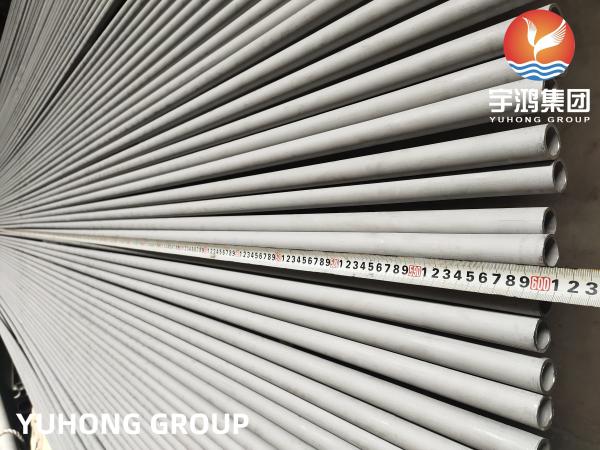

Heat Exchanger Tube EN10216-5 1.4541 Stainless Steel Tube For Chemical Processing
Product Specifications
Attribute | Value |
Material | 1.4541 |
Standard | EN10216-5 |
Ends | PE, BE |
Testing | UT, ET, HT, PMI |

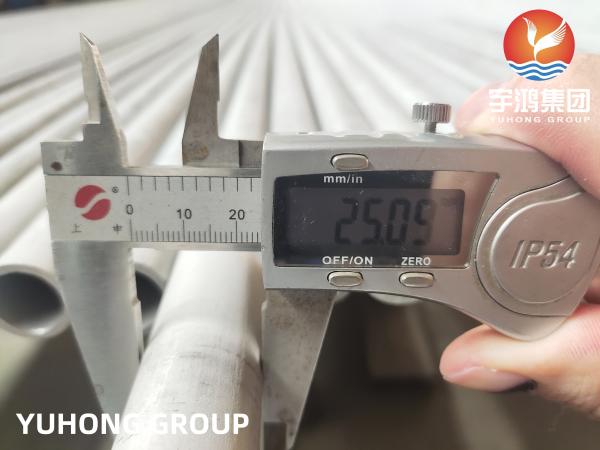

Size | OD: 6mm~50.8mm, WT: 0.5mm~15mm, L: Max:34m/pc |
Application | Heat Exchanger, Cooling, Heating, Condenser, Tube Bundle |
Product Description
The EN10216-5 1.4541 Stainless Steel Heat Exchanger Tube is engineered for high-temperature applications, delivering exceptional corrosion resistance and thermal stability. This austenitic stainless steel (equivalent to AISI 321) is titanium-stabilized to prevent carbide precipitation, making it ideal for demanding chemical processing environments.
Grade 1.4541 contains chromium (17-19%) and nickel (9-12%) with titanium additives for enhanced stability. It offers superior resistance to various corrosive conditions, particularly intergranular corrosion. Manufactured to EN10216-5 standards, these seamless pressure tubes meet rigorous quality requirements for safety and performance.
Chemical Composition
Grade | Cr | Ni | Ti | C |
1.4541 | 17.0-19.0% | 9.0-12.0% | ≥ 5x C content | ≤ 0.08% |
Mechanical Properties
Grade | Tensile Strength | Yield Strength | Elongation | Hardness |
1.4541 | ≥ 210 MPa (30 ksi) | ≥ 520 MPa (75 ksi) | ≥ 35% in 50 mm | Typically ≤ 95 HRB |
Key Features
- Optimized Material Composition: Chromium (17-19%), nickel (9-12%), and titanium for enhanced stabilization
- Superior Corrosion Resistance: Excellent resistance to intergranular corrosion, especially in welded applications
- High-Temperature Performance: Maintains stability in elevated temperature environments
- Exceptional Durability: Withstands thermal cycling and mechanical stress while maintaining structural integrity
Industrial Applications
- Chemical Processing: Reactors, heat exchangers, and equipment handling corrosive chemicals
- Oil & Gas: Offshore platforms, refineries, and petrochemical facilities for heat exchangers and piping
- Power Generation: Heat exchangers in high-temperature, high-pressure power plant environments
- Food & Beverage: Pasteurization and sterilization equipment requiring hygienic properties
- Pharmaceuticals: Processes demanding high cleanliness standards and corrosion resistance
- Marine Engineering: Components exposed to seawater and aggressive marine conditions
- Aerospace: Aircraft components requiring oxidation resistance at elevated temperatures
