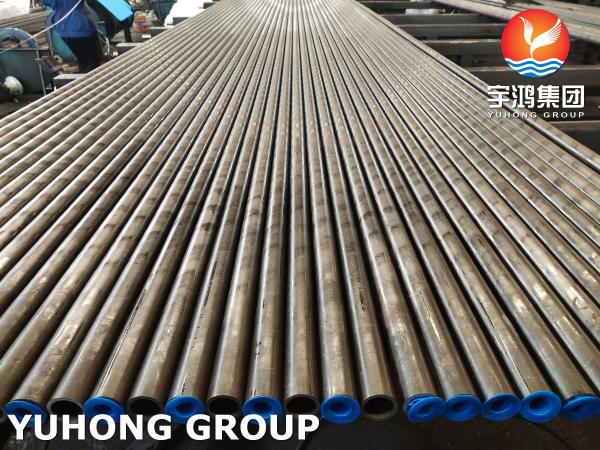

Custom ASME SA210 T1A Seamless Boiler Tube Replacement For Heating Systems
Custom ASME SA210 T1A Seamless Boiler Tube Replacement For Heating Systems
Custom ASME SA210 T1A Seamless Boiler Tube Replacement For Heating Systems
Custom ASME SA210 T1A Seamless Boiler Tube Replacement For Heating Systems
Custom ASME SA210 T1A Seamless Boiler Tube Replacement For Heating Systems
Custom ASME SA210 T1A Seamless Boiler Tube Replacement For Heating Systems
Custom ASME SA210 T1A Seamless Boiler Tube Replacement For Heating Systems
Custom ASME SA210 T1A Seamless Boiler Tube Replacement For Heating Systems
Specifications
Brand Name :
YUHONG
Model Number :
Boiler Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case + Iron Frame
Material Grade :
SA209 T1A
Standard :
ASTM A209 , ASME SA209
External Diameter :
>38.1
Ends :
PE , BE
Tube Material :
Nickel Alloy , Alloy , Stainless Steel , Duplex Stainless Steel , Carbon
Application :
Boiler
Description
Alloy Steel Boiler Tube ASME SA209 T1A Seamless Tube
For Heating Systems & Power Generation Industry
Product Specifications
Attribute Value
Material Grade SA209 T1A
Standard ASTM A209, ASME SA209
External Diameter >38.1
Ends PE, BE
Tube Material Nickel Alloy, Alloy, Stainless Steel, Duplex Stainless Steel, Carbon
Application Boiler
Product Description

The ASME SA209 T1A is a seamless carbon-molybdenum alloy-steel boiler and superheater tube specification. This grade offers exceptional high-temperature strength and pressure resistance, making it ideal for demanding thermal and mechanical applications in boiler systems.

Chemical Composition
Grade C Mn P S Si Mo
SA209 T1A 0.10-0.20% 0.30-0.80% ≤ 0.25% ≤ 0.25% 0.10-0.50% 0.44-0.65%
Mechanical Properties
Grade Tensile Strength Yield Strength Elongation Hardness
SA209 T1A Minimum 410 MPa (59,500 psi) Minimum 205 MPa (29,700 psi) 30% minimum in 50 mm ≤ 85 HRB
Key Features
  • High-Temperature Strength: Reliable performance in extreme heat conditions
  • Oxidation Resistance: Excellent protection in demanding environments
  • Creep Resistance: Maintains integrity under continuous high-temperature exposure
  • Durability: High tensile strength ensures long service life
  • Weldability: Facilitates easy fabrication and repair
  • Versatility: Suitable for diverse high-pressure applications
Industrial Applications

Industrial Boilers:

  • Heating systems for high-pressure steam/hot water generation
  • High-temperature process piping
  • Superheater tubes in extreme conditions

Power Generation:

  • Power plant boiler construction
  • Superheater tubes for high-pressure steam
  • Steam piping systems

Chemical Processing:

  • Reactors and pressure vessels
  • High-temperature fluid transport systems
  • Heat recovery applications
