Specifications
Brand Name :
YUHONG
Model Number :
Boiler Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case + Iron Frame
Material Grade :
A213 T5
Standard :
ASTM A213 , ASME SA213
External Diameter :
>38.1
Ends :
PE , BE
Tube Material :
Nickel Alloy , Alloy , Stainless Steel , Duplex Stainless Steel , Carbon
Application :
Boiler
Description

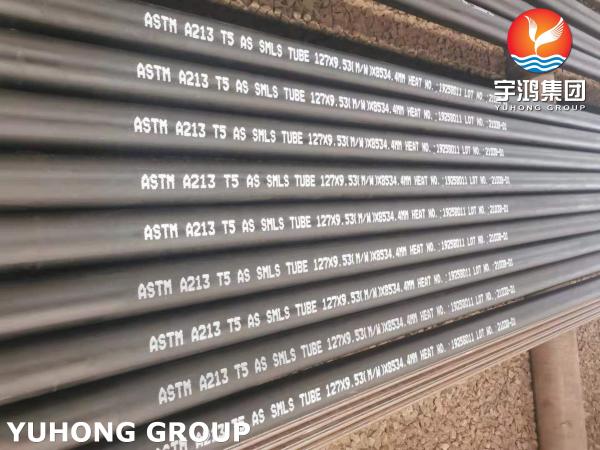

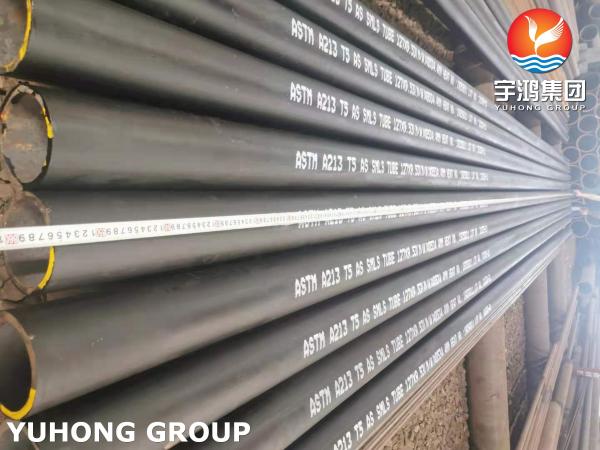

Alloy Steel Boiler Tube ASTM A213 T5 For Steam Boiler, Gas Processing Industries
Product Specifications
Attribute Value
Material Grade A213 T5
Standard ASTM A213, ASME SA213
External Diameter >38.1
Ends PE, BE
Tube Material Nickel Alloy, Alloy, Stainless Steel, Duplex Stainless Steel, Carbon
Application Boiler
ASTM A213 T5 stainless steel boiler tubes are engineered for demanding applications in power generation, petrochemical processing, industrial boilers, oil and gas, and marine industries. Their exceptional performance in high-temperature and corrosive environments ensures long-term reliability and operational efficiency.
Chemical Composition
Grade Cr Mo C Mn P S Si Fe
A213 T5 4.0-6.0% 0.45-0.65% 0.15% max 0.30-0.60% ≤ 0.25% ≤ 0.25% 0.50% max Balance
Mechanical Properties
Grade Tensile Strength Yield Strength Elongation Hardness
A213 T5 Min 415 MPa (60,200 psi) Min 220 MPa (31,900 psi) 30% min in 50 mm ≤ 85 HRB
Key Features
  • High-Temperature Strength: Ensures reliable performance in extreme heat conditions
  • Corrosion Resistance: Excellent protection against oxidation and corrosive environments
  • Creep Resistance: Maintains structural integrity under continuous high-temperature exposure
  • Durability: High tensile strength and toughness for extended service life
  • Weldability: Facilitates easy fabrication and maintenance
  • Versatility: Suitable for diverse high-temperature and high-pressure applications
Industrial Applications
Power Generation Industry:
  • Boiler construction for high-pressure steam generation in power plants
  • Superheater tubes requiring high-temperature resistance
  • Steam piping systems operating under extreme conditions
Petrochemical Industry:
  • Refinery equipment processing high-temperature steam
  • Catalytic cracking units demanding corrosion resistance
  • High-temperature heat exchangers in processing plants
Industrial Boilers:
  • Heating systems including industrial boilers and furnaces
  • High-temperature process piping for various applications
  • Superheater tubes exposed to extreme pressures and temperatures
