Seamless Carbon Steel Boiler Fin Tube Steel Pipe ASME SA179 For Petrochemical
Seamless Carbon Steel Boiler Fin Tube Steel Pipe ASME SA179 For Petrochemical
Seamless Carbon Steel Boiler Fin Tube Steel Pipe ASME SA179 For Petrochemical
Seamless Carbon Steel Boiler Fin Tube Steel Pipe ASME SA179 For Petrochemical
Seamless Carbon Steel Boiler Fin Tube Steel Pipe ASME SA179 For Petrochemical
Seamless Carbon Steel Boiler Fin Tube Steel Pipe ASME SA179 For Petrochemical
Seamless Carbon Steel Boiler Fin Tube Steel Pipe ASME SA179 For Petrochemical
Seamless Carbon Steel Boiler Fin Tube Steel Pipe ASME SA179 For Petrochemical
Specifications
Brand Name :
YUHONG
Model Number :
Boiler Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case + Iron Frame
Material Grade :
A179
Standard :
ASTM A179 , ASME SA179
External Diameter :
>38.1
Ends :
PE , BE
Tube Material :
Nickel Alloy , Alloy , Stainless Steel , Duplex Stainless Steel , Carbon
Application :
Boiler
Description

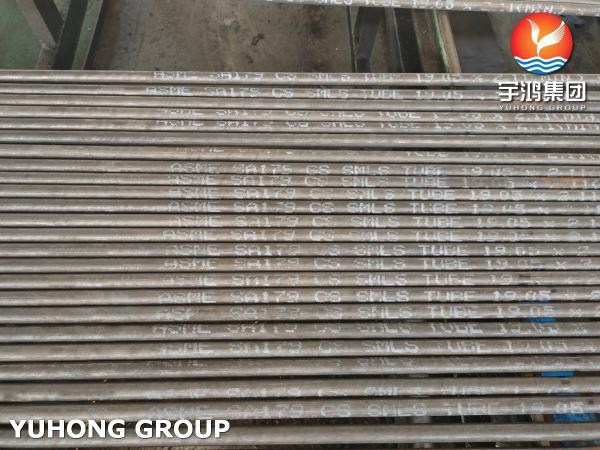

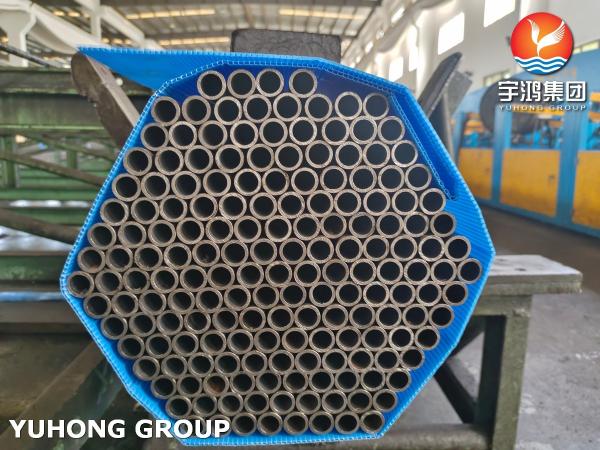

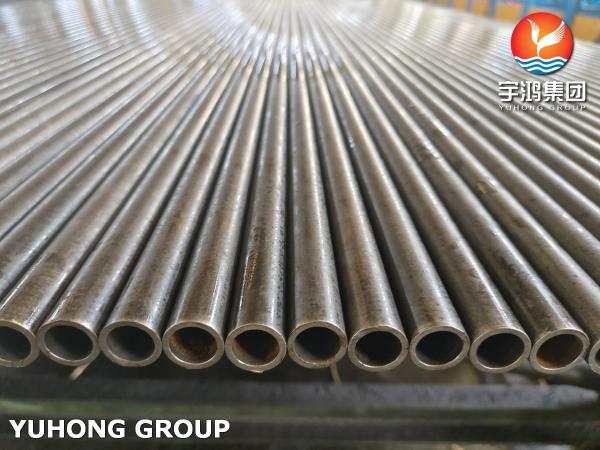

ASME SA179 Carbon Steel Boiler Tube For Boilers, Petrochemical
Product Specifications
Attribute Value
Material Grade A179
Standard ASTM A179, ASME SA179
External Diameter >38.1
Ends PE, BE
Tube Material Nickel Alloy, Alloy, Stainless Steel, Duplex Stainless Steel, Carbon
Application Boiler
Product Overview

ASME SA179 Carbon Steel Boiler Tube is a specification for seamless carbon steel tubes specifically designed for heat exchangers, condensers, and boiler systems. These tubes excel in moderate-temperature, lower-pressure environments compared to higher-grade steels like ASME SA192.

SA179 is an ASME (American Society of Mechanical Engineers) standard for seamless cold-drawn carbon steel tubes, ideal for heat transfer applications with moderate temperature and pressure conditions.

Chemical Composition
  • Carbon: 0.06-0.15%
  • Manganese: 0.27-0.63%
  • Phosphorus: ≤ 0.035%
  • Sulfur: ≤ 0.035%
  • Silicon: 0.10-0.35%
Mechanical Properties
  • Tensile Strength: 45,000-70,000 psi (310-480 MPa)
  • Yield Strength: 25,000 psi (172 MPa)
  • Elongation: Minimum of 30% in 8 inches (200 mm) of gauge length
  • Hardness: Relatively low, contributing to excellent formability and resilience in heat transfer applications
Key Features
  • Cold-Drawn Seamless Construction: Manufactured without seams for superior structural integrity under internal pressures
  • Optimized Performance: Designed for lower pressure and temperature resistance compared to higher-grade boiler tubes
Applications
  • Heat Exchangers: Efficient thermal transfer in low- to medium-pressure systems
  • Condensers: Power plant condenser units and industrial steam cooling systems
  • Boilers: Low-pressure boiler designs with moderate temperature requirements
  • Steam Generators: Moderate pressure steam generation in smaller systems
  • Water-Filled Systems: Water-based systems requiring moderate pressure and temperature conditions
Seamless Carbon Steel Boiler Fin Tube Steel Pipe ASME SA179 For Petrochemical
