100μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Premium Stationery & Industrial Packaging
100μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Premium Stationery & Industrial Packaging
100μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Premium Stationery & Industrial Packaging
100μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Premium Stationery & Industrial Packaging
100μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Premium Stationery & Industrial Packaging
100μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Premium Stationery & Industrial Packaging
Specifications
Color :
Yellow / Black
Web Width :
Up to 2100mm
Surface Finish :
Double-sided glossy, single-sided matte & glossy, or double-sided matte; 25μm emboss depth.
Model Number :
CPP100YB-25
Delivery Time :
15 working days
Packaging Details :
Export Standard
Place of Origin :
China
Brand Name :
HSF
Material :
Polypropylene
Supply Ability :
5 tons per day
MOQ :
2000kg
Thickness :
40μm-330μm
Payment Terms :
T/T
Description

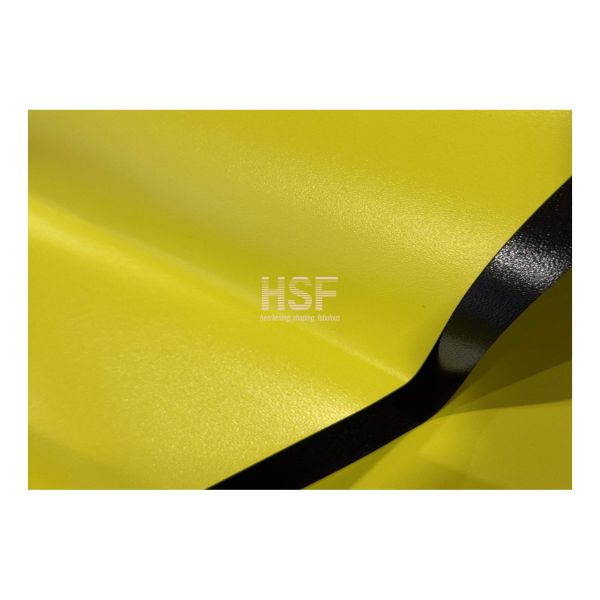

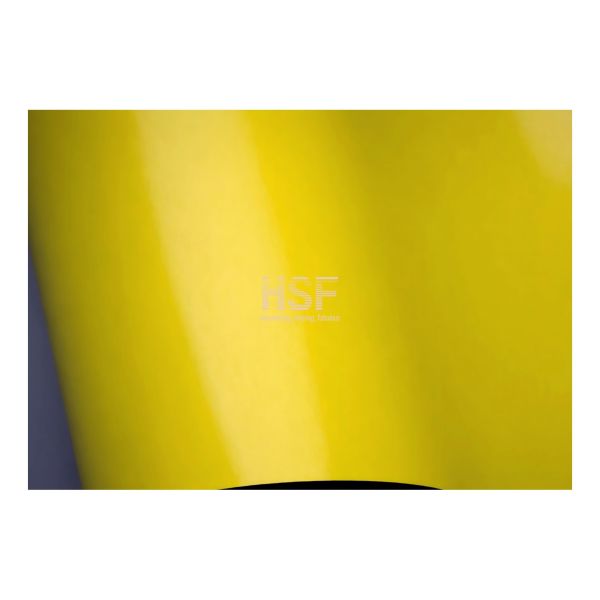

100μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film
Premium cast polypropylene film engineered for luxury stationery and industrial packaging applications with exceptional durability and visual appeal.
Production Process
Manufactured through ultra-precision industrial co-extrusion casting and heavy-duty embossing. High-purity CPP resin is melted at 160-180°C and co-extruded with high-concentration yellow and black masterbatches to form a 100μm dual-color base film (25μm yellow top layer/75μm black bottom layer). After precision cooling and shaping, the film undergoes embossing at 100-110°C under 0.2-0.3MPa pressure for a uniform 25μm fine cloth grain finish, followed by corona treatment, precision trimming, and tight winding to yield defect-free rolls with ultra-low batch deviation (≤3%).
Core Features
  • 100μm super-stiff heavy-gauge base film with 25μm evenly textured emboss depth
  • High-visibility saturated yellow-black dual-color with industrial-grade color fastness
  • Superior mechanical performance: tensile strength ≥26/24MPa (MD/TD)
  • Tear resistance ≥18/15N (MD/TD), Shore D hardness 59±3HD
  • 3M tape-tested emboss adhesion with zero shedding or color loss
  • Corona-treated surface (≥40mN/m) for high-definition printing
  • Ultra-robust heat seal strength (≥14N/15mm)
  • Premium oil and moisture barrier properties
  • Food-contact grade compliant (GB 4806.7-2016), odor-free with no harmful precipitation
Product Advantages
The 100μm super-stiff base film delivers exceptional structural rigidity and rugged toughness, resisting permanent deformation and heavy external pulling for long-term extreme heavy-duty use. The 25μm delicate emboss enhances anti-slip tactile grip and visual layering, while the high-visibility yellow-black color scheme provides excellent safety warning and hazard identification performance. Co-extrusion process ensures permanent color fastness without fading or bleeding, with excellent print and heat-seal compatibility for seamless post-processing. Food-grade eco-safe material with ultra-stable mass production quality.
100μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Premium Stationery & Industrial Packaging 100μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Premium Stationery & Industrial Packaging
Application Environment
Ideal for luxury thick stationery including high-end hardcover folder covers, premium heavy-duty notebook shells, and luxury album binders. Perfect for heavy-duty industrial high-risk area warning and marking tapes due to excellent tear resistance and anti-slip performance. Also suitable for premium large food packaging and extreme heavy industrial protective packaging. Performs stably in 0°C-65°C environments and adapts perfectly to high-speed slitting, high-definition digital printing, and automated heat-sealing industrial processes.
Technical Specifications
Test Item Unit Industry Standard Requirement Product Specified Standard Actual Test Result Qualification Judgment
Base Film Thickness (excl. emboss) μm 100±5 100±3 99.6 Qualified
Emboss Depth μm 25±3 (customizable) 25±2 24.7 Qualified
Tensile Strength (MD/TD) MPa ≥24/≥22 ≥26/≥24 27.3/25.1 Qualified
Elongation at Break (MD/TD) % ≥340/≥290 ≥360/≥310 375/322 Qualified
Heat Seal Strength (120°C, 0.3MPa, 1s) N/15mm ≥12 ≥14 15.4 Qualified
Surface Tension (corona treated side) mN/m ≥38 ≥40 41.9 Qualified
Tear Resistance (MD/TD) N ≥17/≥14 ≥18/≥15 19.3/16.2 Qualified
Moisture Barrier Property (23°C, 85%RH) g/(m²*24h) ≤4.0 ≤3.5 3.3 Qualified
Oil Resistance (soaked in n-hexane for 24h) - No obvious swelling, discoloration No swelling, discoloration, adhesion No swelling, discoloration, adhesion Qualified
Hardness (Shore D) HD 59±5 59±3 58.7 Qualified
Emboss Adhesion - No texture peeling by tape test No texture peeling, color fading by 3M tape test No texture peeling, color fading by 3M tape test Qualified
Weather Resistance (UV aging for 72h) - No obvious fading, cracking Fading grade ≤2, no cracking, deformation Fading grade 1, no cracking, deformation Qualified
Environmental Performance (food contact grade) - Compliant with GB 4806.7-2016 Compliant with GB 4806.7-2016, no peculiar smell, no harmful precipitation Compliant with GB 4806.7-2016, no peculiar smell, no harmful precipitation Qualified
