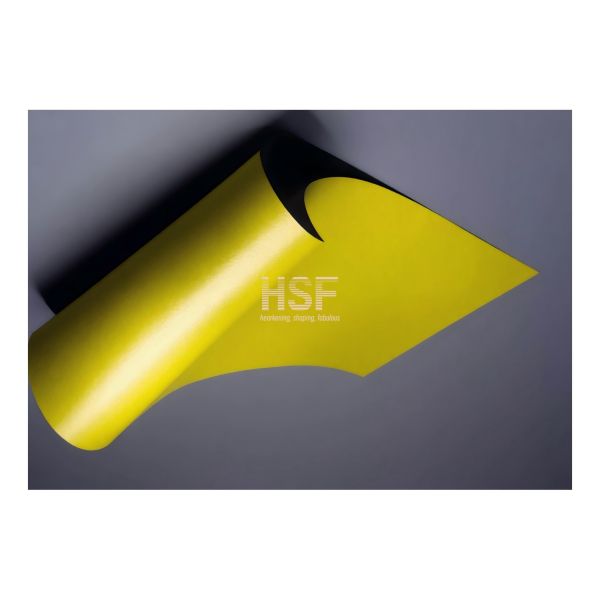

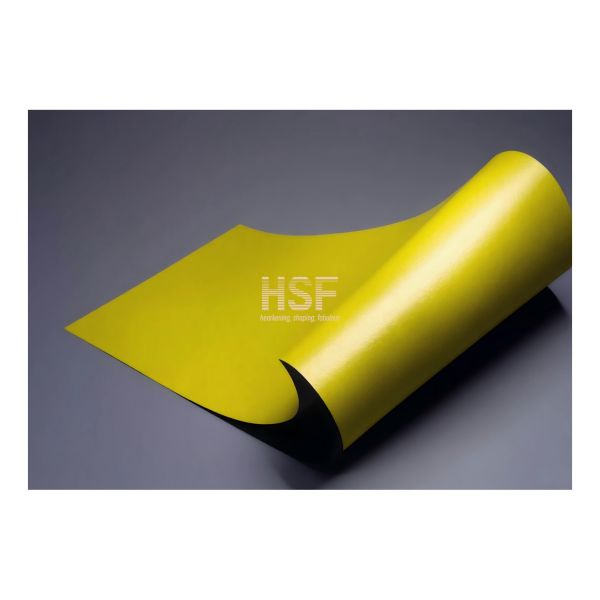

70μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Industrial Marking
70μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Industrial Marking
70μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Industrial Marking
70μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Industrial Marking
70μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Industrial Marking
70μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Industrial Marking
Specifications
Brand Name :
HSF
Model Number :
CPP70YB-25
Place of Origin :
China
MOQ :
2000kg
Payment Terms :
T/T
Supply Ability :
5 tons per day
Delivery Time :
15 working days
Packaging Details :
Export Standard
Material :
Polypropylene
Color :
Yellow / Black
Surface Finish :
Double-sided glossy, single-sided matte & glossy, or double-sided matte; 25μm emboss depth.
Thickness :
40μm-330μm
Web Width :
Up to 2100mm
Description
70μm CPP Yellow-Black Dual-Color Embossed Film
A high-performance 70μm base film with 25μm uniform emboss depth, featuring exceptional tensile strength, tear resistance, printability, and heat-sealability. Ideal for mid-range stationery and industrial marking applications.
Production Process
Manufactured using precision co-extrusion casting and industrial-grade embossing techniques. High-purity CPP resin is melted at 160-180°C and co-extruded with yellow and black masterbatches to create a 70μm dual-color base film (18μm yellow top layer/52μm black bottom layer). After cooling and shaping, the film undergoes embossing at 100-110°C under 0.2-0.3MPa pressure for a uniform 25μm fine cloth grain finish. Final steps include high-power corona treatment, edge trimming, and tight winding, ensuring defect-free rolls with ultra-low batch deviation (≤3%) and consistent industrial-grade performance.
Core Features
  • 70μm medium-stiff base film with 25μm uniform emboss depth
  • High-visibility yellow-black dual-color with premium color fastness
  • Superior mechanical properties: tensile strength ≥20/18MPa (MD/TD)
  • Excellent tear resistance: ≥15/12N (MD/TD)
  • Shore D hardness: 53±3HD
  • Corona-treated surface (≥40mN/m) for high-definition printability
  • Reliable heat seal strength: ≥11N/15mm
  • Enhanced oil and moisture barrier properties
  • Food-contact grade compliant (GB 4806.7-2016)
  • Odor-free with no harmful precipitation
Product Advantages
The 70μm medium-gauge base film provides optimal balance between stiffness and flexible toughness, resisting deformation and breakage for medium-intensity applications. The 25μm delicate emboss enhances anti-slip tactile grip and visual layering, while the high-visibility yellow-black color scheme delivers outstanding marking and warning performance. Co-extrusion ensures permanent color fastness without fading or bleeding, and excellent print/heat-seal compatibility enables seamless post-processing. Food-grade eco-safe, stable mass production, and high cost-performance make this film versatile and durable for various industrial and daily applications.
70μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Industrial Marking 70μm Base Film 25μm Emboss Depth Yellow-Black Dual-Color CPP Film for Industrial Marking
Application Environment
Ideal for mid-grade stationery including notebook covers, album shells, and file folders due to balanced stiffness and delicate emboss texture. Perfect for general industrial marking and warning tapes with high-visibility yellow-black for clear identification and caution. Also suitable for mid-range small food packaging (food-safe with moisture/oil barrier) and light-to-medium industrial protective packaging. Performs stably in 0°C-60°C environments and adapts perfectly to high-speed slitting, digital printing, and automated heat-sealing industrial processes.
Technical Specifications
Test Item Unit Industry Standard Requirement Product Specified Standard Actual Test Result Qualification
Base Film Thickness (excl. emboss) μm 70±5 70±3 69.5 Qualified
Emboss Depth μm 25±3 (customizable) 25±2 24.8 Qualified
Tensile Strength (MD/TD) MPa ≥18/≥16 ≥20/≥18 21.2/19.5 Qualified
Elongation at Break (MD/TD) % ≥280/≥230 ≥300/≥250 315/268 Qualified
Heat Seal Strength (120°C, 0.3MPa, 1s) N/15mm ≥9 ≥11 12.3 Qualified
Surface Tension (corona treated side) mN/m ≥38 ≥40 41.2 Qualified
Tear Resistance (MD/TD) N ≥14/≥11 ≥15/≥12 16.1/13.3 Qualified
Moisture Barrier Property (23°C, 85%RH) g/(m²·24h) ≤5.5 ≤5.0 4.7 Qualified
Oil Resistance (soaked in n-hexane for 24h) - No obvious swelling, discoloration No swelling, discoloration, adhesion No swelling, discoloration, adhesion Qualified
Hardness (Shore D) HD 53±5 53±3 52.7 Qualified
Emboss Adhesion - No texture peeling by tape test No texture peeling, color fading by 3M tape test No texture peeling, color fading by 3M tape test Qualified
Weather Resistance (UV aging for 72h) - No obvious fading, cracking Fading grade ≤2, no cracking, deformation Fading grade 1, no cracking, deformation Qualified
Environmental Performance (food contact grade) - Compliant with GB 4806.7-2016 Compliant with GB 4806.7-2016, no peculiar smell, no harmful precipitation Compliant with GB 4806.7-2016, no peculiar smell, no harmful precipitation Qualified
