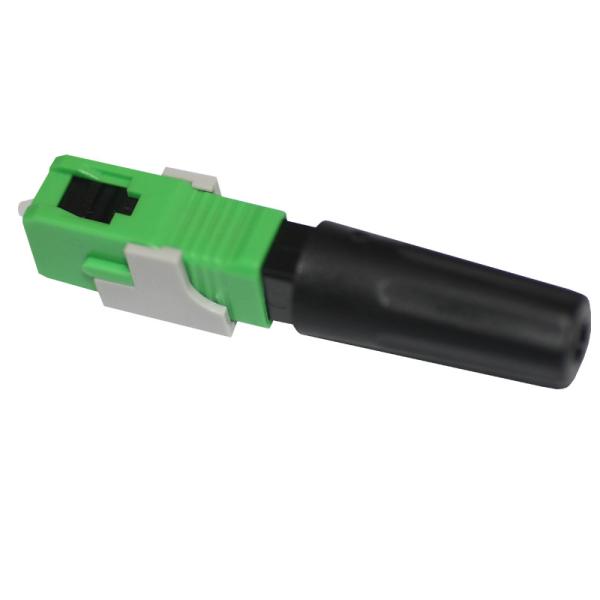

FTTH Fiber Optic Field Assembly Connectors / Apc Sc Connector 9 125um
FTTH Fiber Optic Field Assembly Connectors / Apc Sc Connector 9 125um
FTTH Fiber Optic Field Assembly Connectors / Apc Sc Connector 9 125um
FTTH Fiber Optic Field Assembly Connectors / Apc Sc Connector 9 125um
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-1455
Certification :
CE, RoHs, FCC, UL, ISO9001
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
egotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Connector Type :
SC
Fiber Mode :
Singlemode, 9/125um
Fiber Count :
1
Color :
Green
Material :
Plastic
Insertion Loss :
0.35dB
Return Loss :
55dB
Polish Type :
APC
Description

FTTH SC APC Fiber Optic Singlemode Field Assembly Fast Connectors

Features

1. FTTH project usable;
2. Field installable;
3. Insert loss less than 0.3dB;
4. Metal V-shape cavity work well in high and low temperature;
5. Installation less than 1 minutes;
6. Reliable and superior optical performance.

Technical Parameter

Type SC/APC
Fiber Count Simplex
Insertion Loss ≤0.3dB
Fiber Mode 50/125MM
Return Loss >30dB (UPC MM)
Boot Size 2.0*3.0 drop cable
Housing Green
Material Plastic

Short Details

Part Number HGYN-1455
Polish Type UPC
Lenght 55mm

Application

1. Telecom / Datacom;
2. LANs, CATV;
3. Fiber to the Home;
4. Premises Distribution;
5. Gigabit Applications (Ethernet, ATM, SONET, etc.

Assembly Manual


The field assembly connector can be assembled directly on the end of cable just within minutes. Which makes the installation process easy and fast. It requires no specialized tooling except standard fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. Even no electrical power supply is needed to assemble this fiber connector.
