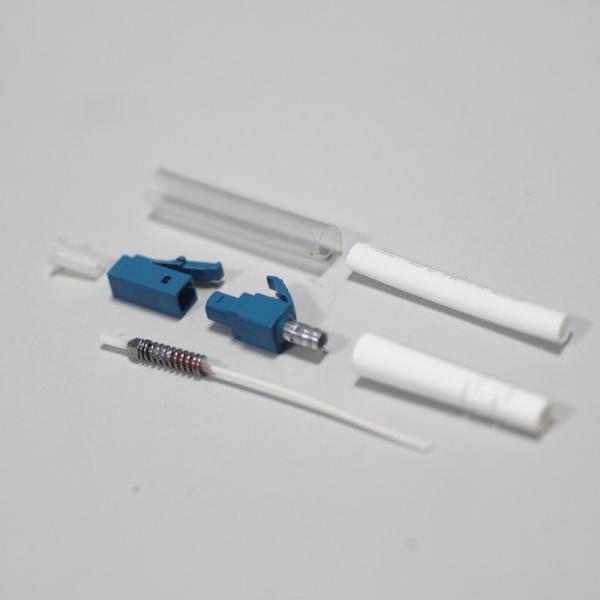

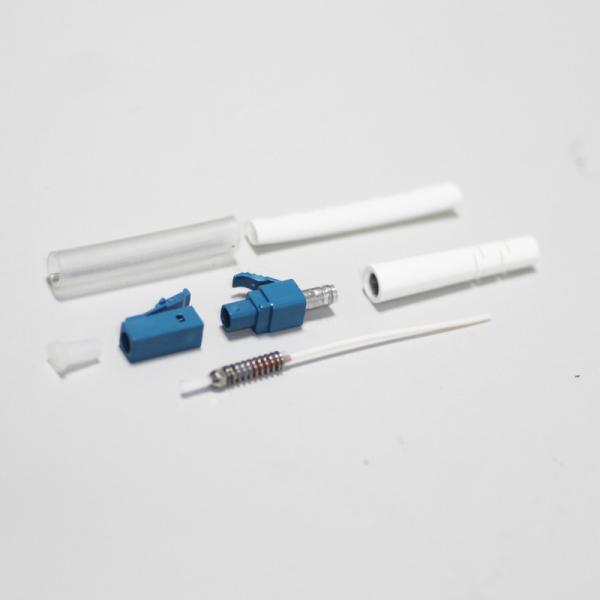

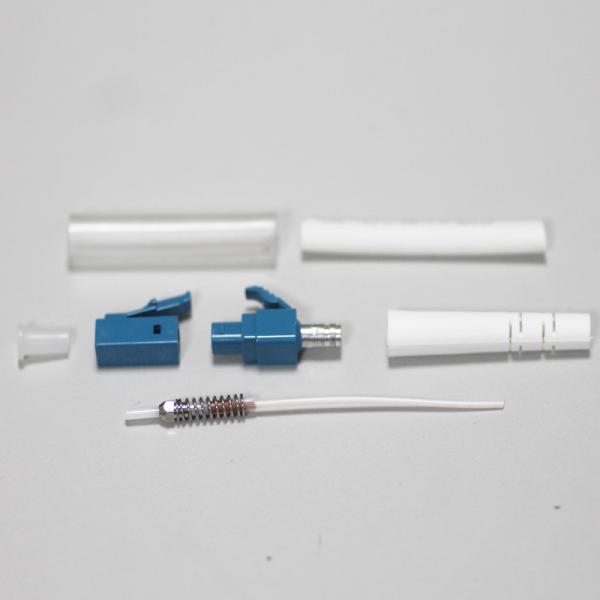

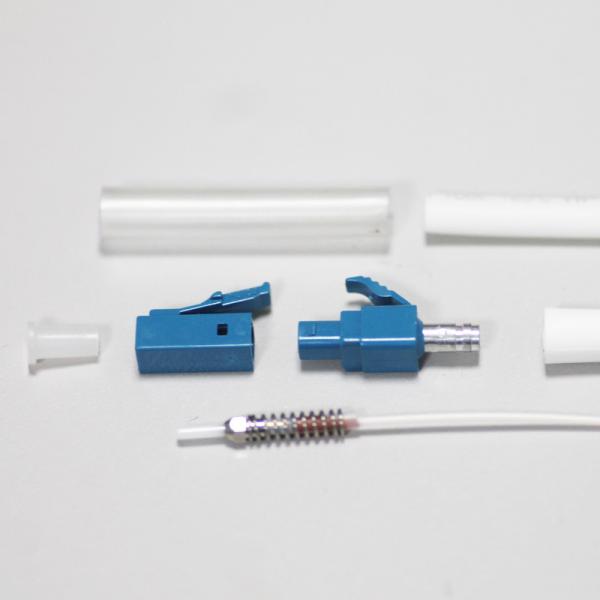

Singlemode Field Assembly Connector FTTH LC UPC Fusion Splice On OS2 Mode
Singlemode Field Assembly Connector FTTH LC UPC Fusion Splice On OS2 Mode
Singlemode Field Assembly Connector FTTH LC UPC Fusion Splice On OS2 Mode
Singlemode Field Assembly Connector FTTH LC UPC Fusion Splice On OS2 Mode
Singlemode Field Assembly Connector FTTH LC UPC Fusion Splice On OS2 Mode
Singlemode Field Assembly Connector FTTH LC UPC Fusion Splice On OS2 Mode
Singlemode Field Assembly Connector FTTH LC UPC Fusion Splice On OS2 Mode
Singlemode Field Assembly Connector FTTH LC UPC Fusion Splice On OS2 Mode
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-989
Certification :
CE, UL, FCC, RoHs
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Housing :
Plastic
Fiber Mode :
Singlmode, OS2
Fiber Count :
1
Cable OD :
2.0x3.0mm
Color :
Blue
Connector Type :
LC
Ferrule :
Cameric
Length :
10mm
Description

FTTH LC UPC Fusion Splice-on Singlemode Fiber Optic Field Assembly Connector

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant Filling compound. A fibre reinforce plastic locates in the center of core as a non-metallic strength member. The tubes (and the fillers) are stranded around the strength member into a compact and circular core. The cable is completed with a PE sheath.

Keyed Characteristics


● Loose tube design, accurate excess fiber length control to get stable cable performance;

● Semi-dry cable core design, environment friendly, easy for test and splice;

● Small outer diameter, light weight, low friction sheath material;

● High speed, long distance air-blowing, efficient installation;

● Bulk production, widely applied for European Telecom network;

● Optical 200um mini optical fibre, smaller cable size, better choice in high fibre count.

Application


• Pigtails and Jumpers;
• Installed within walls, under raised floors, and in air-return spaces;
• Interconnection in horizontal spaces between fiber optic equipments.

Cable Technical Datasheet

No. Items Unit Specification
Single-mode
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation(max.) 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
10 Fiber Type Corning SMF28-e

Technical Parameter

Cable Scope 0.9mm tight buffer cable
Size 40*4*3.55mm
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Fiber Mode Snglemode
Polish Type APC
Color Green
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
Return Loss ≤ 55dB for APC
Success Rate >98%
Reusable Times >5 times
Tighten Strength of Naked Fiber >5 N
Tensile Strength >30 N
Temperature -40 ~ +85 C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test

≤ 0.3dB
(4m concrete floor, once each direction, three times total)

Singlemode Field Assembly Connector FTTH LC UPC Fusion Splice On OS2 Mode

Singlemode Field Assembly Connector FTTH LC UPC Fusion Splice On OS2 Mode

Hangalaxy provides fast fiber optical pre-installed connector for both MultiMode as SingleMode fiber, compatible with most of today’s switch vendors. Hangalaxy’s Dual Fiber SFP’s support data ranges between 100 Mbit/s and 4.25 Gbps and distances up to 160 km. Go to the Hangalaxy SFP product range.
